RDL SOURCEFLEX™

The SourceFlex™ Audio System is an integrated set of products used to configure cost-effective, expandable audio monitoring. SourceFlex gives users the option to select from up to 8 audio sources, adjust the volume, and listen with impeccable clarity. Source switching equipment is all electronic. Monitoring stations are ruggedly constructed, easily maintained, and cosmetically attractive.

Each system requires rack-mounted SourceFlex™ input and audio control chassis’, plus SourceFlex listening stations. Each station provides source selection and volume control at a user’s location. Styles of listening stations include wall mounted for overhead speakers, table mounted with internal speakers, handlebar or surface mounted for use with headphones, and more.

The SourceFlex™ system consists of switching equipment and options which may be added to in the future. The system is wired to avoid the problems associated with recharging and signal interference in wireless distribution. A SourceFlex system is simple to install and provides years of reliable service with expandability. SOURCEFLEX™ products are designed and manufactured in the U.S.A.

D-SFRC8

Room Control for RCX-5C Room Combiner

Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Volume Adjustment Using a Single-Turn Control
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Line Output Switchable Fixed or Variable
• Variable Output Follows Front-Panel Level Control
• 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Speaker Output Connection on Detachable Terminal Block
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging

D-SFRC8L

Audio Selector for SourceFlex Distributed Audio System

Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging

DB-SFRC8

Room Control Station for SourceFlex Distributed Audio System

Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Volume Adjustment Using a Single-Turn Control
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Line Output Switchable Fixed or Variable
• Variable Output Follows Front-Panel Level Control
• 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Speaker Output Connection on Detachable Terminal Block
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging

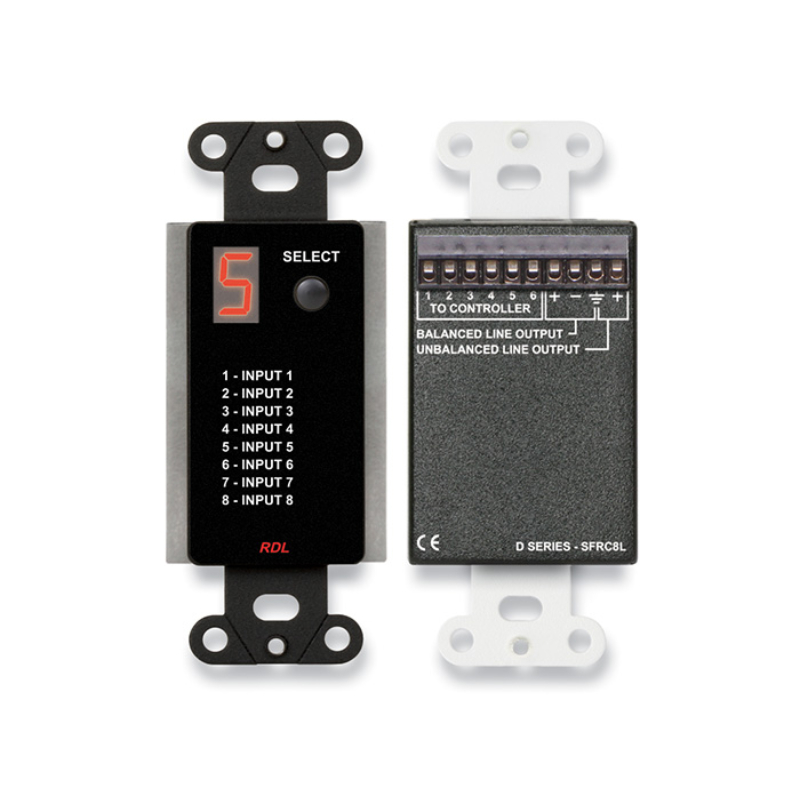

DB-SFRC8L

Audio Selector for SourceFlex Distributed Audio System

Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging

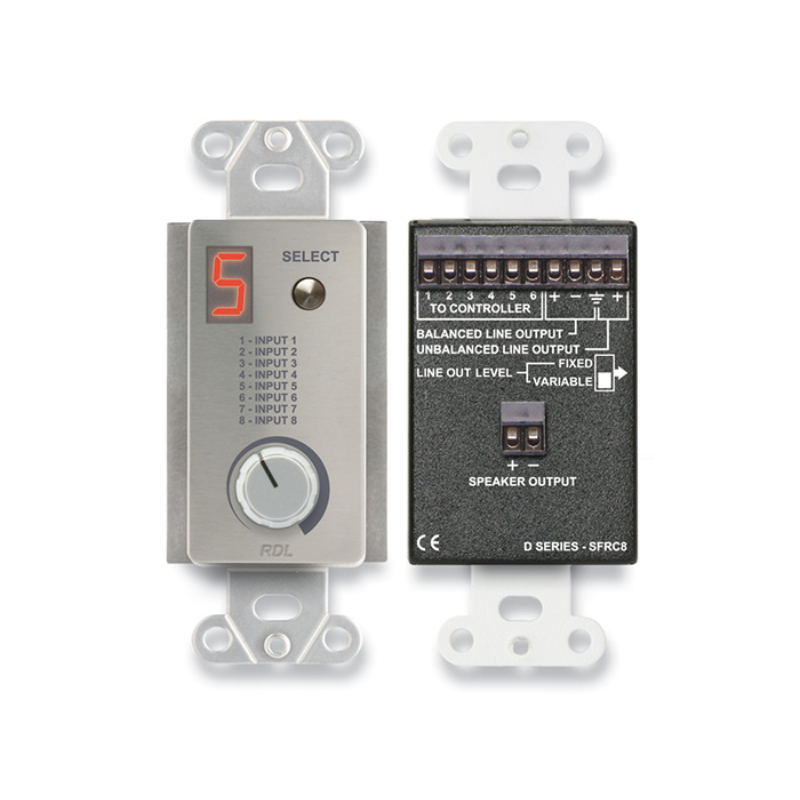

DS-SFRC8

Room Control Station for SourceFlex Distributed Audio System

Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Volume Adjustment Using a Single-Turn Control
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Line Output Switchable Fixed or Variable
• Variable Output Follows Front-Panel Level Control
• 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Speaker Output Connection on Detachable Terminal Block
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging

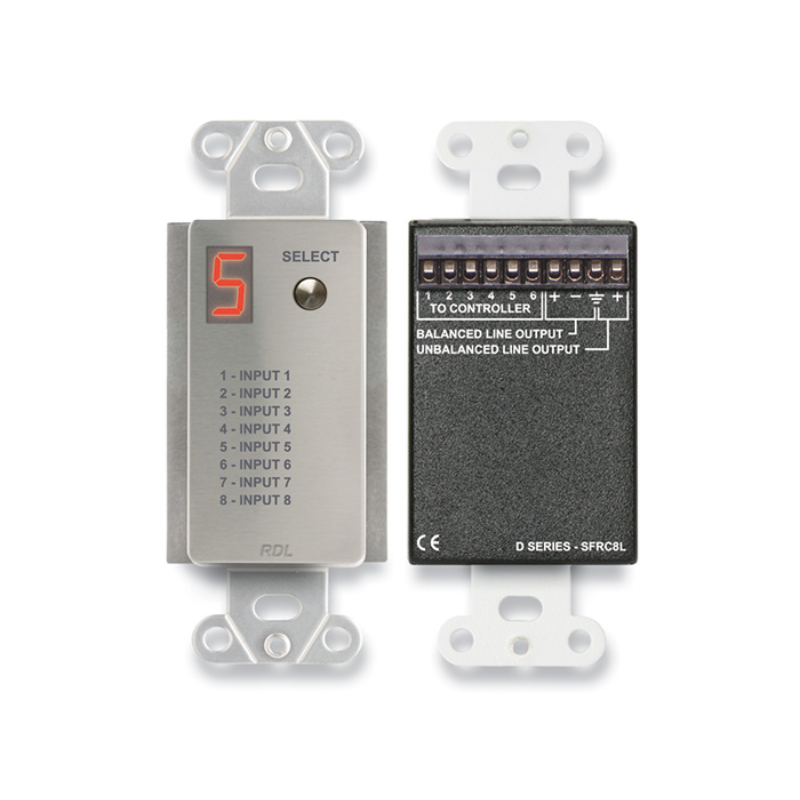

DS-SFRC8L

Audio Selector for SourceFlex Distributed Audio System

Highlights

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging

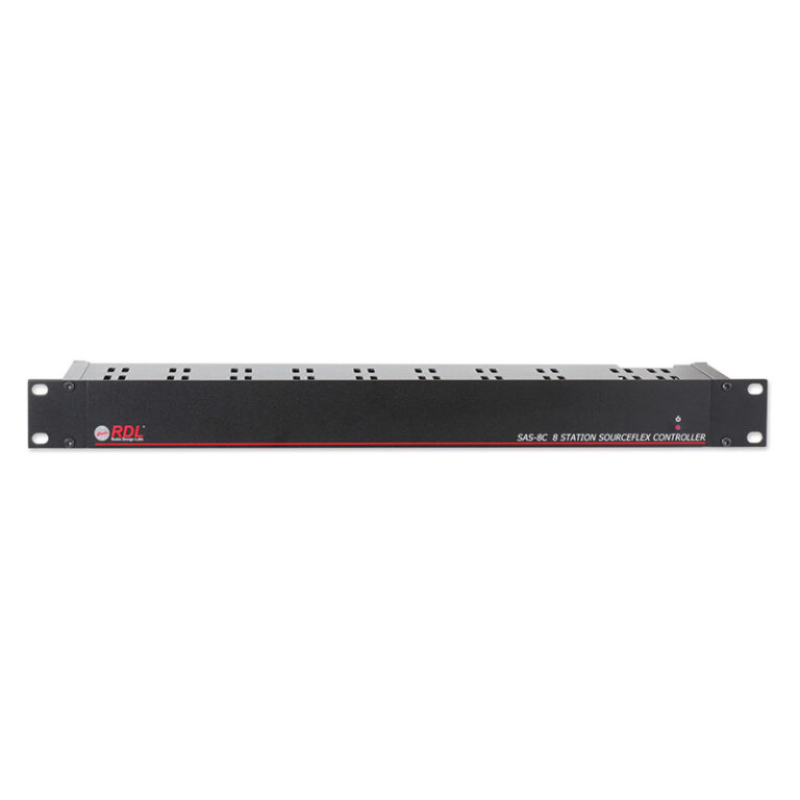

SAS-8C

8 Station Audio Controller for SourceFlex Distributed Audio System

Highlights

• Controls 8 SourceFlex listening stations
• Provision to set maximum listening level at each station
• Auto-resetting fuse protects power feed to each listening station
• Daisy-chain connections to/from SAS-82 and/or SAS-8i

SAS-8i

Audio Input Chassis for SourceFlex Distributed Audio System

Highlights

• Audio input chassis for SourceFlex Audio System
• Accepts 8 balanced or unbalanced sources
• Separate paging input and closure contacts
• Programmable for maximum number of sources used
• Supports SAS-8C or SAS-82 SourceFlex controllers
• Controls 4 SourceFlex listening stations
• Provision to set maximum listening level at each station
• Auto-resetting fuse protects power feed to each listening station

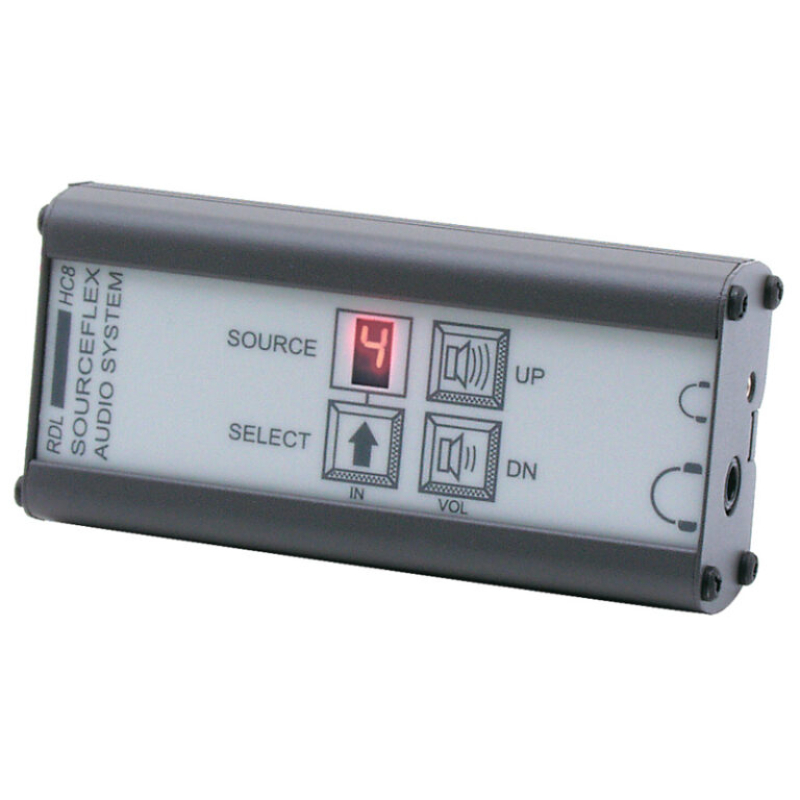

SAS-HC8

Headphone Amplifier with Source Selection for SourceFlex Distributed Audio System

Highlights

• Headphone listening station for exercise equipment or countertop
• Source selection and volume adjustment buttons
• Sealed touch controls protect internal circuitry
• ULTRASTYLE ™ design rugged metal enclosure
• Mounts to support pipe, handlebar or tabletop
• Automatic volume reduction to safe level when headphones left disconnected
