RDL Headphone Control Station

SAS-HC8

$968.87

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SAS-HC8

Headphone Amplifier with Source Selection for SourceFlex Distributed Audio System

Headphone listening station for exercise equipment or countertop
Source selection and volume adjustment buttons
Sealed touch controls protect internal circuitry
ULTRASTYLE ™ design rugged metal enclosure
Mounts to support pipe, handlebar or tabletop
Automatic volume reduction to safe level when headphones left disconnected

Description

The SAS-HC8 Headphone Control Station is a SourceFlex headphone listening station for use with exercise equipment or on a tabletop. Each unit features a source selector with numeric indicator and volume adjustment buttons. Sealed touch controls protect the internal circuitry from debris and moisture. The rugged metal case is both attractive and durable. If headphones are left unplugged from the SAS-HC8, the internal processor resets the volume to a safe listening level. This averts the possibility of a loud, potentially harmful audio burst when headphones are plugged in.

Specifications

Display: 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
Input: 6-position detachable terminal block
Control Buttons: Replaceable, protected by moisture-resistant polycarbonate
Control functions: Momentary button channel SELECT; Momentary button volume ramp UP; Momentary button volume ramp DOWN
Ramp Rate: 5 seconds nominal for 40 dB audio level adjustment
Frequency Response: 50 Hz to 35 kHz (±1 dB)
THD+N: < 0.1% (20 Hz to 20 kHz) @ 1 kHz
Control Signals: dc (RAMP and CONTROL conductors between remote Listening Station and Controller)
Output Jacks (2): 1/4 in. (6.35 mm) headphone jack or 1/8 in. (mini) headphone jack
Amplified Output: 200 mW RMS into 100 Ω, adjustable (normal system audio input operating level applied)
Mounting: Bracket with clamps included, mounts to flat surface or to tubing 0.75 in. (1.9 cm) to 1.5 in. (3.8 cm) diameter
Finish: RDL ULTRASTYLE™ design
Ambient Operating Environment: 0° C to 55° C
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.765 lbs.
Shipping Weight: 1.455 lbs.
Package Dimensions: 2 x 2 x 4 in.

RDL Headphone Control Station

SAS-HC8

$968.87

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SAS-HC8

Headphone Amplifier with Source Selection for SourceFlex Distributed Audio System

Description

Specifications

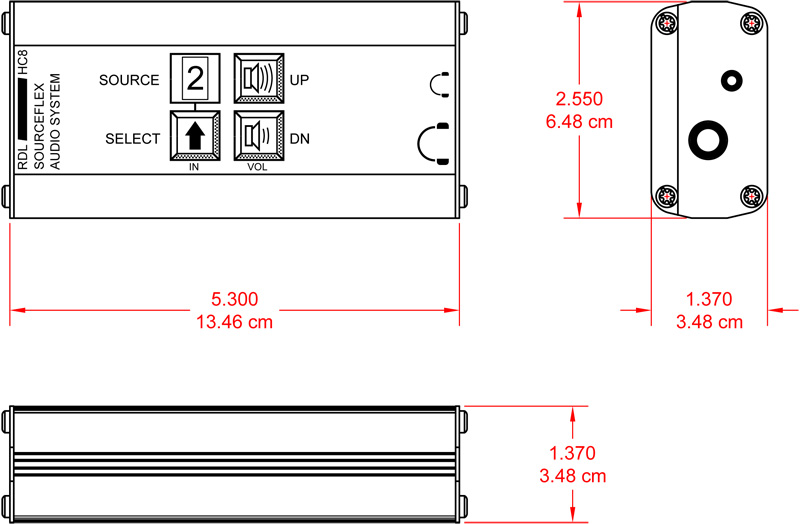

Dimensions
