RDL 8 Station Audio Controller

SAS-8C

$2,812.74

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SAS-8C

8 Station Audio Controller for SourceFlex Distributed Audio System

Controls 8 SourceFlex listening stations
Provision to set maximum listening level at each station
Auto-resetting fuse protects power feed to each listening station
Daisy-chain connections to/from SAS-82 and/or SAS-8i

Description

SAS-8c 8 Station Audio Controller controls eight SourceFlex remote listening station. Six conductor wire connects each remote station with the SAS-8C. The power conductor is protected by an automatically resetting fuse. Use of the SAS-8C in large SourceFlex systems yields the most economical cost per station.

Specifications

Audio Input, paging: 100 kΩ balanced or unbalanced line level, detachable terminal block
Audio Inputs, switched (8): 100 kΩ balanced or unbalanced line level, detachable terminal block
Audio Input Level: -22 dBu to +4 dBu nominal (+22 dBu max.), 25-turn adjustable pot
Control Input: Paging Terminal; External closure to ground to activate
Front Panel Presets: DIP switch to set number of inputs used
Metering: 1 Green LED (intensity indicates audio level) ; 1 Red LED (indicates 0 dB audio level)
Frequency Response: 50 Hz to 35 kHz (±1 dB)
THD+N: < 0.1% @ 1 KHz (bandwidth 20 Hz to 20 kHz)
Output, bus: 24-pin ribbon cable header loop-thru output to drive SAS-82 or SAS-8C
Outputs (4): 6-position detachable terminal blocks (connection to remote Listening Station)
Audio Output Gain Range: 40 dB (trimmer presettable)
Indicators: LED; Output voltage present at Remote Outputs
Power Requirement: 24 Vdc @ 1 A, Ground-referenced
Ambient Operating Environment: 0° C to 50° C
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 3.615 lbs.
Shipping Weight: 4.185 lbs.
Package Dimensions: 20.5 x 6.75 x 2.25 in.

RDL 8 Station Audio Controller

SAS-8C

$2,812.74

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SAS-8C

8 Station Audio Controller for SourceFlex Distributed Audio System

Description

Specifications

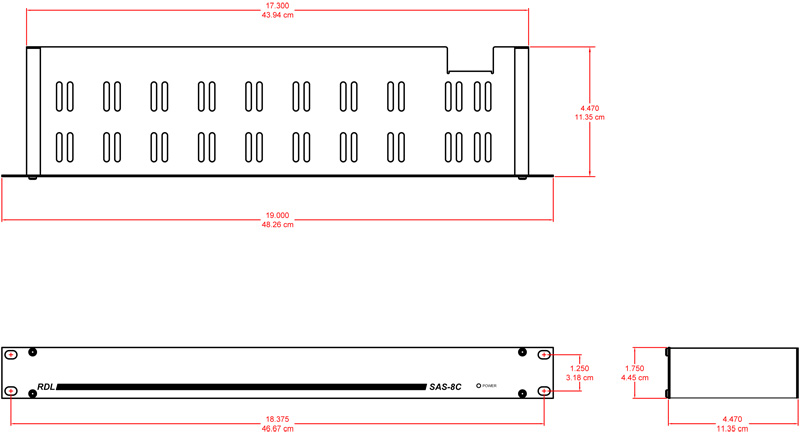

Dimensions
