RDL Audio input chassis

SAS-8I

$2,489.99

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SAS-8i

Audio Input Chassis for SourceFlex Distributed Audio System

Audio input chassis for SourceFlex Audio System
Accepts 8 balanced or unbalanced sources
Separate paging input and closure contacts
Programmable for maximum number of sources used
Supports SAS-8C or SAS-82 SourceFlex controllers
Controls 4 SourceFlex listening stations
Provision to set maximum listening level at each station
Auto-resetting fuse protects power feed to each listening station

Description

SAS-8i is an audio input chassis for SourceFlex™ Audio System that accepts 8 balanced or unbalanced sources. The SAS-8i has separate paging input and closure contacts. It is programmable for maximum number of sources used. The SAS-8i supports SAS-8C or SAS-82 SourceFlex controllers and controls 4 SourceFlex listening stations. There is a provision to set maximum listening level at each station and has the protection of an auto-resetting fuse protects power feed, to each listening station.

Specifications

Output, bus: 24-pin ribbon cable header loop-through output to drive additional SAS-82 or SAS-8C
Input, bus: 24-pin ribbon cable header driven from SAS-8i
Remote Outputs (8): 6-position detachable terminal blocks (connection to remote Listening Station)
Audio Output Gain Range: 40 dB (trimpot adjustable)
Indicators (8): LED – output voltage present at Remote Output
Power Requirement: 24 Vdc @ 2 A, Ground-referenced
Ambient Operating Environment: 0° C to 50° C
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 3.72 lbs.
Shipping Weight: 4.29 lbs.
Package Dimensions: 20.5 x 6.75 x 2.25 in.

RDL Audio input chassis

SAS-8I

$2,489.99

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SAS-8i

Audio Input Chassis for SourceFlex Distributed Audio System

Description

Specifications

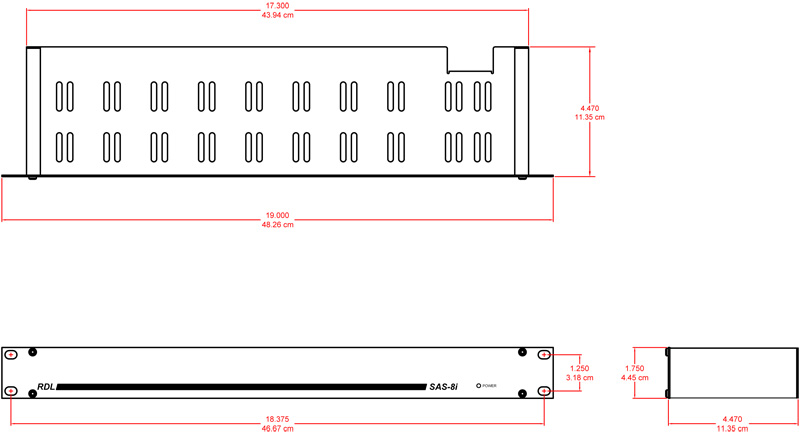

Dimensions
