Revolution Acoustics was born from the inquisitive minds of industrial product strategists and the principles of planar wave physics. Founder Bob Katz, whose industrial design firm has brought innovative designs to prominent brands worldwide, created Revolution Acoustics to solve the problem of inconsistent loudspeaker coverage.

Recognizing that traditional cone loudspeakers would always be plagued by the same concerns in high-frequency dropoff and varying off-axis levels, Katz turned to the planar wave physics of Distributed Mode Loudspeakers, or DML. By using transducers to excite a rigid surface, sound is created in the same way an acoustic guitar or piano soundboard generates its immersive and accurate audio reproduction. But unlike other transducer products, which lack low-end content and cannot handle much power, the Multiducer design generated by Katz’ team, and brought to the market in 2014, offers full fidelity along with high power handling that enables its use across a wide scope of applications.

The technology behind the SSP6 Multiducer carries numerous US and worldwide patents, and the SSP6 is IP66 rated for use in extreme environments.

SSP6 Multiducers have been used worldwide in installations ranging from five-star hotels to high-end shopping plazas to luxury yachts.

SSP6 Multiducers

A Revolution in Speaker Technology.







A Revolution in Speaker Technology.

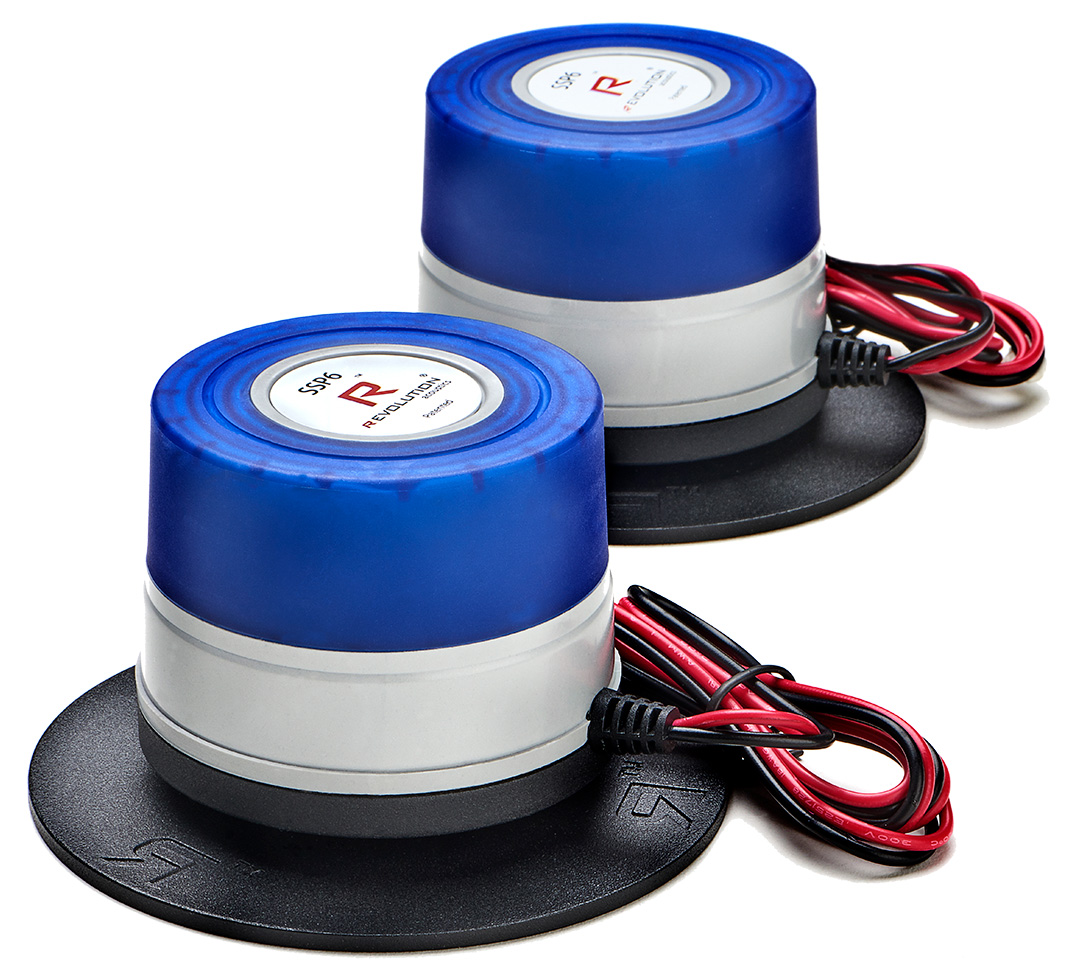

The patented SSP6 Multiducer™ (Multifunctional Transducer) brings a revolution to not only invisible audio but all kinds of installed speaker applications. Its sheer performance with high fidelity audio, high power handling and constant SPL throughout a listening space means it’s the perfect speaker for sound masking, conference rooms, retail, restaurant, hospitality, house of worship, transportation and other commercial uses; its performance combined with the fully invisible installation make it ideal for high-end residential use.

The SSP6 Multiducer is a new class of products for transforming rigid surfaces – walls, ceilings, tables, windows, vehicles, and other surfaces – into full-range audio speakers. It employs a different subset of acoustical physics – bending wave physics – giving you a true Distributed Mode Loudspeaker (DML) with no hot spots or off-axis high-frequency dropoffs. (Read more about the technology behind the SSP6 here.)

SSP6 Multiducers are installed directly onto a surface, and installation is accomplished in a matter of minutes. The secret to our ultra-fast installation is the RevLoc™ mounting plate. This plate is adhered to the surface (see the SSP6 Installation Guide for more information), and the SSP6 is screwed into place on the RevLoc. It’s that easy! No tools are needed.

The SSP6 is UL-certified for use in plenum spaces and IP66-rated for extreme weather and marine applications.

Check out the latest from Integrated Systems Europe 2024, the world’s leading audiovisual and systems integration exhibition.



The Revolutionary Choice for Sound Masking.

Because coverage is so broad and even, a single SSP6 unit can take the place of up to 9 “emitters” traditionally used in sound masking applications – saving money not only in equipment costs but in labour and wiring. Combine it in 70V mode with our revolutionary RevNet 2140 amplifier, which incorporates a customizable sound masking generator, and you can install a comprehensive sound masking system at a surprisingly low cost.

Read more about how to use the SSP6 in sound masking. | Related Products  | Sound Masking
Revolution Acoustics is “disrupting the sound masking channel” with its SSP6 Multiducer, an invisible speaker solution which brings constant-SPL, uniform coverage to sound masking installations at a considerably lower cost than traditional solutions.

When installed in sound masking applications, a single SSP6 Multiducer will cover up to 1000 square feet without hot spots, dropouts or other variations in the signal, and it may be used for paging in addition to sound masking. “High-end Australian sound masking integrators commented the SSP6 not only provides a more consistent sound masking signal throughout a facility, it is installed much more quickly and easily than other systems they’ve used. This patented solution is truly disruptive technology as it eliminates the need to drill hundreds of holes in ceilings and provides more uniform coverage. One SSP6 unit provides comprehensive sound masking coverage superior to that of up to 9 traditional units in the same space.”

The cost savings provided by the Revolution Acoustics SSP6 come via not only reduced speaker costs but through much lower speaker cabling requirements and significant reductions in installation time. There’s also the matter of room aesthetics. Traditional sound masking systems are very visible, with potentially hundreds of units dotted all over the ceiling and interfering with the clean, uncluttered look the end users want to have. The SSP6, on the other hand, cannot be seen at all.

The Revolution Acoustics SSP6 installs inside hard ceilings or in drop ceilings (using the Ubiqui-T360 Acoustic Ceiling Tile adapter), providing a completely invisible installation.
The ability to seamlessly transition between rigid and acoustical tile ceilings, with no changes in the sound masking signal, gives integrators a simpler way to bring sound masking to challenging office environments. Installation is further simplified with the use of the Revolution Acoustics ReyNet 2140 amplifier, which incorporates a customizable sound masking signal generator.

Sound Masking

“The first and most critical, part of an effective sound masking system is uniformity. The sound masking system must be uniform everywhere in the workspace, or it will draw attention to itself and defeat the purpose of the system. Revolution Acoustics achieves this very well. Their Multiducers work across a variety of finishes, whether it’s a hard ceiling, acoustical ceiling or wall, and provide a uniform sound without any variations in intensity anywhere.”

-STEVE JOHNSON, ADI WORKPLACE ACOUSTICS

* Comprehensive, consistent coverage
* Lower cost per square foot
* Easier to install

Traditional sound masking installations require the use of up to 9 speakers (emitters) to provide a sound masking signal in a 1,000-square-foot space. You can achieve the same coverage with one SSP6 unit from Revolution Acoustics.

SM-Diagram-1024x269



When combined with our RevNet 2140 amp, which incorporates a customizable sound masking generator, sound masking systems can easily be integrated into a large workspace.

Read more about using the SSP6 in sound masking.


Background Music

Easier background music speaker system

Restaurant-desat-1024x637

* Consistent volume everywhere with fewer speakers
* Better intelligibility for paging
* Easy to install

Retail stores, restaurants, office lobbies, workplace break rooms and other facilities have something in common – they all need background music systems that provide a pleasant listening experience without any dropouts or hot spots. Equally important is clear, intelligible paging for patrons. Revolution Acoustics’ constant-SPL systems can help you achieve these goals easily.

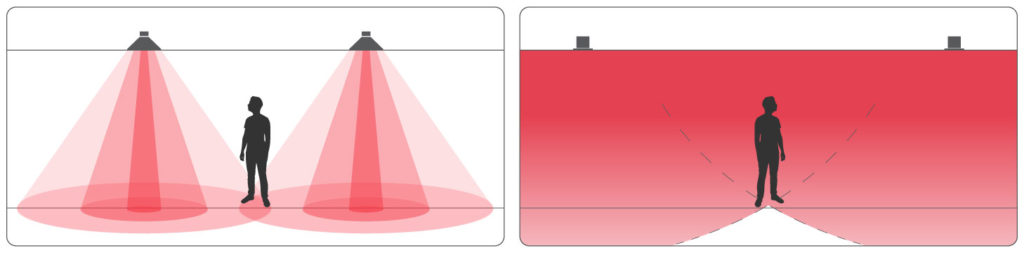

SSP6-Dispersion-Diagram-Final-1024x253



A BGM system using the Revolution Acoustics SSP6 Multiducer will give you immersive music and clear paging using fewer speakers than traditional systems. One SSP6 Multiducer will provide the coverage you need per 500 square feet of floor space.


 Conference Room Audio

* Clear, understandable speech without hot spots or dropouts
* Consistent volume without feedback
* Easy, invisible installation in walls, ceilings and tables

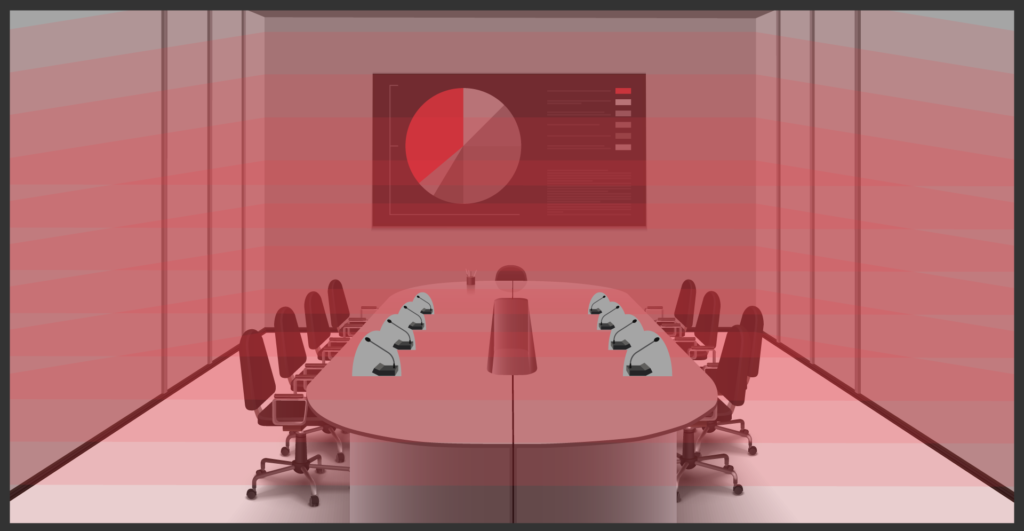

Imagine a meeting room where a presenter can wander around freely without fear of triggering feedback in the sound system. This is a Revolution Acoustics meeting room, with constant-SPL sonic coverage throughout the space for completely immersive audio and maximum intelligibility throughout. You can even transform the conference room table into part of your speaker system without creating feedback via room microphones.

Conference-Room-1024x531


Music Systems

High-SPL music for bars and clubs

Bar-Desat-1024x769

* Immersive music without hot spots or dropouts
* Better intelligibility for paging
* Easy to install

Bars and other facilities needing high energy music have traditionally faced a challenge: how to bring the needed SPL to a system while avoiding over-loud music in some areas and a muddy sonic mess in others. Revolution Acoustics addresses this challenge by providing constant SPL throughout the listening space and ensuring even distribution of high frequency content.

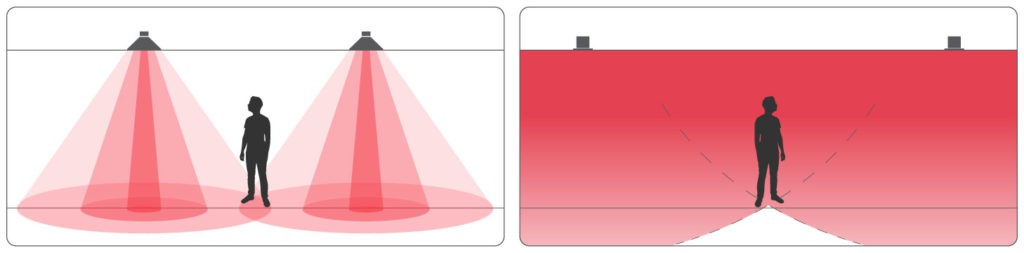

SSP6-Dispersion-Diagram-Final-1024x253 (1)

A foreground system using the Revolution Acoustics SSP6 Multiducer will give you immersive music and clear paging using fewer speakers than traditional systems. One SSP6 Multiducer will provide the SPL and clarity you need per 250 square feet of floor space.


House of Worship Sound

Invisible audio solutions for houses of worship

Empty-Church-Desat-1024x769

* Superior sonic coverage with fewer speakers
* Better intelligibility for the spoken word
* Invisible
* Works in low-impedance, 70V and Dante® systems

Houses of worship have always experienced challenges in ensuring sonic clarity and intelligibility while at the same time maintaining the aesthetic beauty of worship spaces in the building. The invisible audio solution offered by Revolution Acoustics addresses these issues – beautifully. The use of SSP6 Multiducers in walls, ceilings and other surfaces will ensure immersive, invisible sound for all and eliminate muddy audio in fringe areas.


Marine Audio

IP66 rated for marine applications

Cruise-Ship-1024x683

* Clear, understandable speech and music
* Consistent volume without hot spots or dropouts
* IP66 rated for extreme environments

Tour boats, cruise ships and retail facilities along waterfronts have always had a challenge with loudspeakers. Traditional speakers simply aren’t rugged enough to withstand salt air or water, and coverage on boats and other vessels has been spotty at best. Revolution Acoustics changes this. Our SSP6 Multiducers transform walls, ceilings and even the hull of a vessel into speakers, providing consistent coverage, immersive music and clear messaging everywhere… and there are no speaker grilles to rust out.


Transportation System Audio

Crystal clear paging & invisible audio solutions for transportation

Train-1024x684

* Clear, understandable paging everywhere
* Easy, invisible installation in walls, ceilings and other areas
* High SPL without dropouts or overly-loud areas

Anyone who has travelled via air or train has experienced the frustration of not being able to hear crucial paging messages. Traditional speakers, with their hot spots and poor off-axis performance, simply can’t provide the coverage needed in these environments, especially when the audio is competing with high background noise. The use of SSP6 Multiducers in walls and ceilings ensures immersive, intelligible audio for everyone, no matter where they are seated (or standing).


Education

Intelligible audio in classrooms

Classroom-1024x683

In classrooms, audio intelligibility and amplification aren’t just important. It’s CRITICAL. Adding audio amplification into classrooms leads to higher student success and offers positive effects on classroom behaviour. The DML technology employed by the Revolution Acoustics SSP6 ensures that the audio in the back of the room or along the side aisles is every bit as intelligible as the sound heard at the front of the classroom. With Revolution Acoustics, there are no audio, hot spots or dropouts, and the listening level is consistent everywhere in the classroom, so you don’t have to worry about deafening some students with overly loud speakers while others struggle to hear. Another benefit of an SSP6 installation: teachers with wireless microphones can wander around the room as needed, and they’ll never cause howling in the sound system by moving too close to a speaker. And, unlike other classroom speaker systems, you need far fewer SSP6 units to achieve optimal audio quality than you would normally need.
