Two-way ceiling tile speaker

Posted on 31 May 2021

Upgraded SoundField Ceiling Tile Speaker with Improved Performance & Easier Installation

Now available, the new Extron SoundField® SF 228T Plus, is a two-way ceiling tile speaker for low impedance and 70 volt/100 volt systems with a new coaxial driver that delivers high power handling with a smooth frequency response and exceptional clarity. This innovative design features a low profile, 2′ x 2′ (610 mm x 610 mm) by 5.3″ (135 mm) deep enclosure that is UL 2043 plenum rated, utilizes toolless connections, and drops directly into standard US style suspended ceilings. This speaker is sold in pairs and is designed for fast and easy installation into sound systems requiring high performance audio playback.

Key Features

2′ x 2′ (610 mm x 610 mm), 18.9 lb (8.6 kg) drop-in ceiling tile speaker designed for US-style suspended ceilings

NEW – High performance coaxial driver with 8″ (203 mm) long-throw woofer and
1.1″ (28 mm) silk dome tweeter

NEW – Frequency Range: 47 Hz to 22 kHz for music and speech reproduction

NEW – 90 watts continuous pink noise output
180 watts continuous program output

NEW – Higher power 70/100V taps, up to 64 watts

NEW – Integrator-friendly, toolless speaker wire connections

Tuned bass reflex port for extended low frequency response

Rigid front baffle reduces unwanted enclosure resonances

UL 2043 plenum rated enclosure

Extron-exclusive enclosure weighs less than 9kgs

Ceiling Tile Speaker

8″ Two-Way SoundField Ceiling Tile Speaker

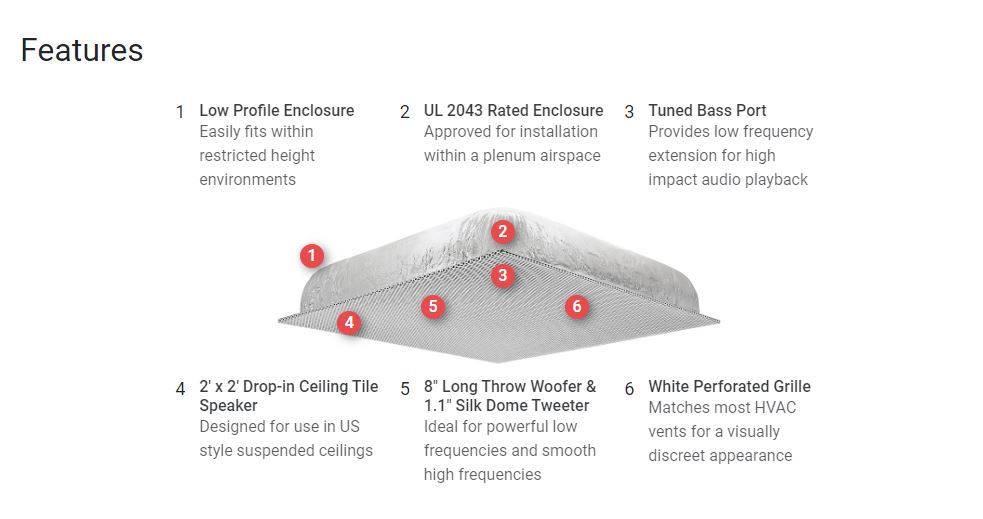

The Extron SoundField® SF 228T Plus is a two-way ceiling tile speaker for low impedance and 70 volt/100 volt systems. This innovative design features a low profile, 2′ x 2′ (610 mm x 610 mm) by 5.41″ (137 mm) deep enclosure that is UL 2043 plenum rated, weighs less than 20 pounds (9 kg), and drops directly into standard US style suspended ceilings, providing quicker installations. The two-way ported design includes an 8″ (203 mm) woofer and a 1.1″ (28 mm) silk dome tweeter in a coaxial configuration that provides a smooth frequency range of 47 Hz to 22 kHz for music and speech reproduction. The SF 228T Plus offers 90 watts continuous pink noise and 180 watts continuous program output. This speaker is sold in pairs and is designed for fast and easy installation into sound systems requiring high quality, wide bandwidth audio playback.

Two-Way SoundField Ceiling Tile Speaker

Exceptional Sonic Performance for Pro AV

The SF 228T Plus delivers full frequency range and exceptional sonic performance with an 8″ coaxial two-way driver in a design optimized for easy installation into US style suspended ceilings. It provides an extended low frequency range with deeper bass output than typical ceiling speakers. This low frequency extension is achieved through a long-throw woofer mated to a tuned-port enclosure, plus a large transformer for distortion-free low frequency output.

The front panel design provides the rigidity and stiffness to minimize enclosure vibrations that would otherwise compromise sound quality. A lightweight housing is utilized to create an enclosure that balances acoustic performance with installation safety. The SF 228T Plus weighs less than 20 pounds (9 kg), allowing the speaker to meet ceiling-mounting codes without additional permits when installed in classrooms.

Integrator-Friendly Features

Integrator-friendly features include an internal tap selector switch, cable/conduit access cover with secondary knockout, and splicing connectors that make it easy to connect speaker wires without tools.

The SF 228T Plus offers 70 volt or 100 volt operation and provides switch selectable power taps for 64, 32, 16, and 8 watts. The transformer can be bypassed for 8 ohm operation.

For easy installation, the SF 228T Plus drops into the same space as a standard 2′ x 2′ tile, and includes a T-bar for 2′ x 4′ ceilings. It also provides theft deterrence with a neutral white, perforated steel grille that matches the appearance of standard air conditioning vents and grid ceilings.

Application Diagram

In this classroom, four SF 228T Plus SoundField ceiling tile speakers provide even coverage throughout the room so all students can benefit from superior instructor intelligibility. The system is powered by a NetPA U 1002-70V network amplifier with its integrated DSP, receiving signals from wireless microphones in the classroom, presentation content from a Dante connection, and the ability to quickly connect a simple analog line level source via the WPD 101 3.5 mm wallplate. Additional analog line outputs from the amplifier drive an assistive listening system.

Application Diagram for the SF 228T Plus
