TeleDelta HD 2800 Series

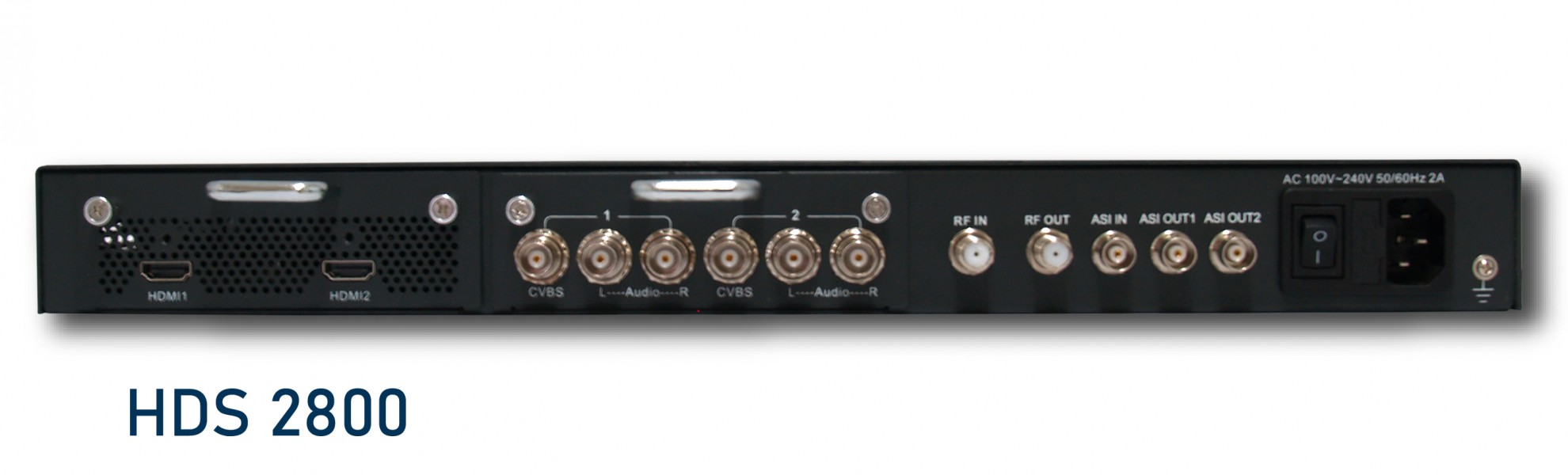

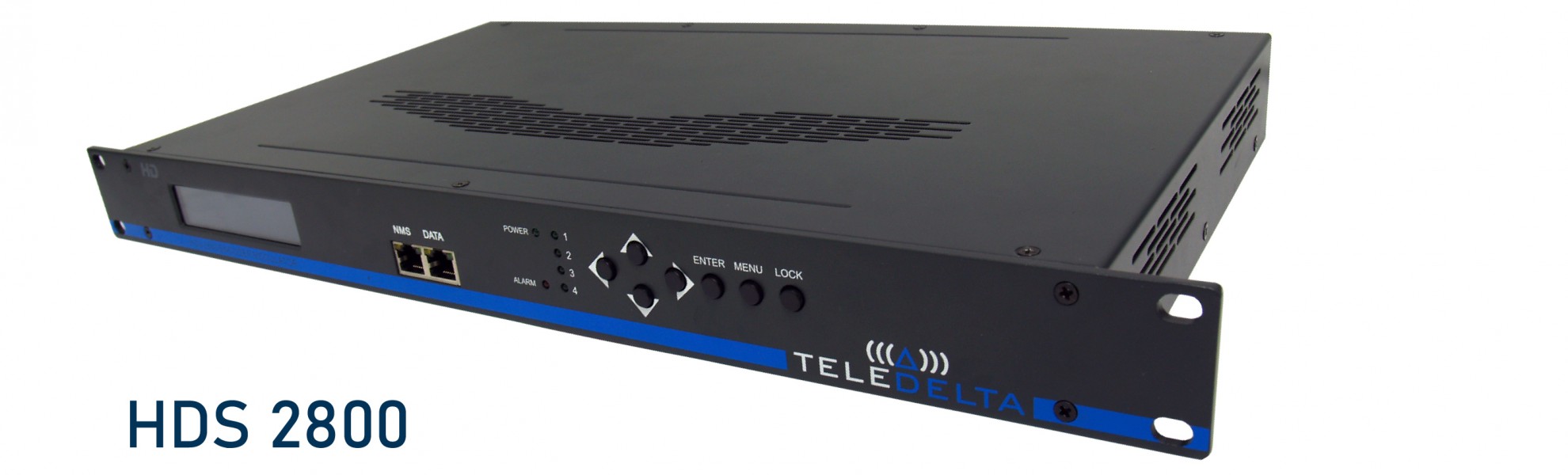

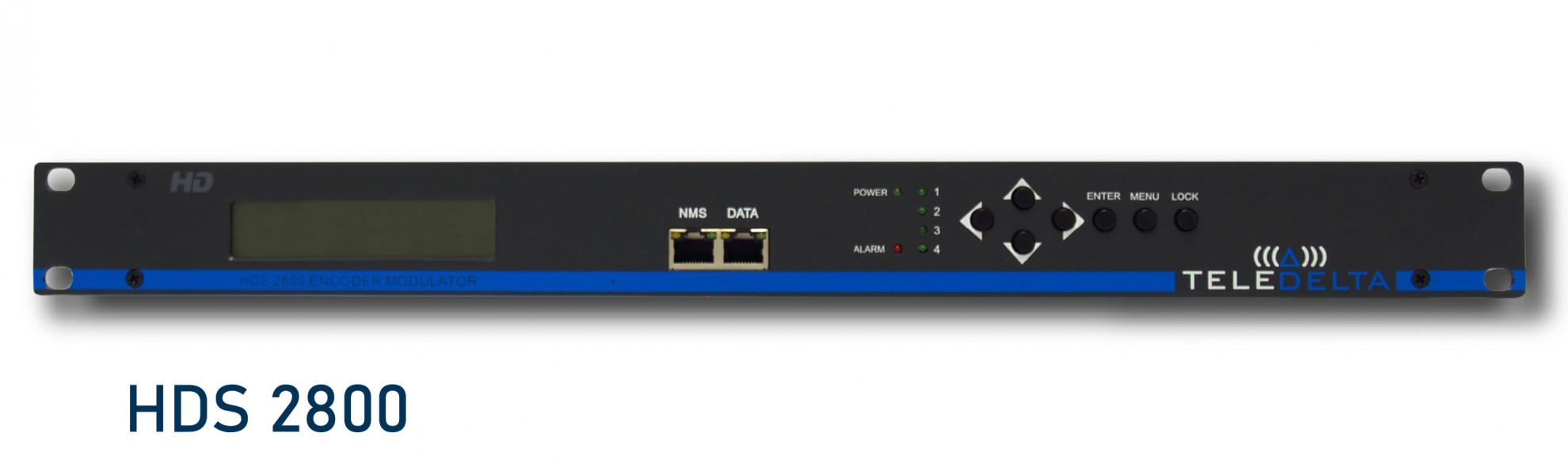

TeleDelta HDS2800-HHR – 4x YPbPr/CVBS/S-Video Input Digital Encoder

The TeleDelta HDS2800-HHR is a modular 1RU digital encoder designed for digital television (DVB-T) and IPTV head-end systems.

The HDS2800-HHR chassis provides MPEG-2 encoding and selectable bitrates per input channel. The HDS2800 chassis also provides 1x Independent, fully configurable COFDM DVB-T output carriers per chassis and 1x MPTS UDP Multicast IP output for IPTV systems.

The TeleDelta designed the user interface and control software allows installers to configure and save their desired setup parameters for quick and easy setups onsite.

Alternative Configurations:

HDS2802-HHR – Same configuration as above but with 2x DVB-T COFDM outputs and 2x SPTS UDP Multicast IP Outputs
HDS2800-HHR-ASI – Same configuration as the HDS2800-HHR with an ASI Input / Output

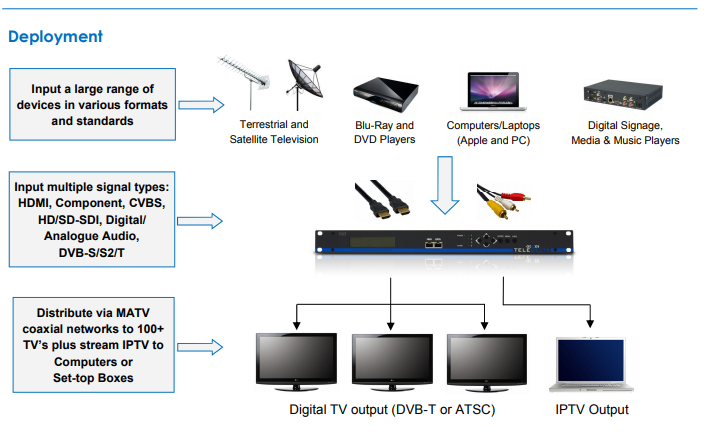

The HDS2800 Series allows you to distribute Video & Audio Signals from Standard Definition through to full 720p/1080i/1080p High Definition resolutions over new or existing Coaxial Cable. All you need to tune in to these signals is a Digital Television Tuner compatible with the DVB-T standard, such as those used for Freeview HD reception in Televisions, Set-top-Boxes and DV Recorders

 Product Resources

Brochure_hds2800   Datasheet_hds2800r1  Ordering_HDS2800r3 HDS2800_user_manual_02   HDS2800_User_Manual_App2
