GSM Hybrid enhances your studio's communication

Posted on 05 September 2024

Equipped with HD Voice, echo canceling, digital EQ, and USB PC control, the GSM Hybrid enhances your studio’s communication capabilities, ensuring crystal-clear, reliable connections with field reporters. With its own dedicated number, reporters can effortlessly dial in, and calls integrate seamlessly into your mixing console via built-in GPIOs.

The package includes an external 12-volt power supply adapter for added convenience. The GSM Hybrid offers features like input/output metering, level control, phone dialing, number recognition, and GSM signal strength indication, ensuring efficient and smooth communication.

 Features

• HD Voice (AMR-WB/G722.2): Experience crystal-clear voice communication with advanced codecs designed for superior audio clarity.
• Balanced Audio In/Out: Achieve professional-grade connections with balanced audio inputs and outputs.
• Echo Cancellation: Eliminate echo for flawless audio transmission.

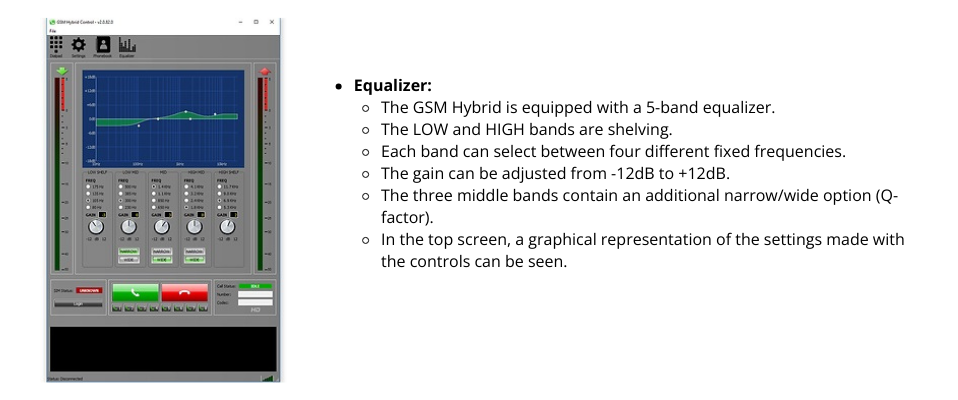

• Digital EQ Control: Fine-tune audio with digital equalization for premium sound quality.
• Configurable AGC: Maintain consistent audio levels with adjustable Automatic Gain Control.
• USB PC Control: Seamlessly manage the GSM Hybrid via USB with the PC control application.
• 12V DC Power: Perfect for mobile setups, powered by a 12-volt DC car battery.
• Simple GPIO Interfacing: Integrate with external devices using easy GPIO interfacing and alerts on jacks.
• Superior Voice Quality: Enhance voice clarity compared to standard hybrids.

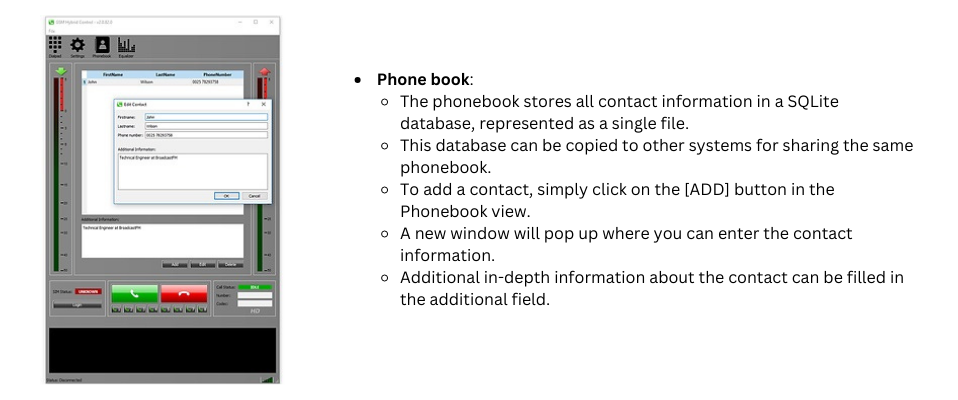

• Advanced Address Book: Manage contacts efficiently with number recognition.
• Auto Connect & Answer: Automatic connection and answering for seamless operation.
• Black/White List Feature: Control incoming connections with customizable number filtering.
• Internal GSM Memory Storage: Store all settings internally for standalone operation without a PC.
• Fast Factory Reset: Quickly reset to factory settings with a simple 15-second hold of the CONNECT button.
• Reliable PC Communication: Enhanced PC communication based on trusted AIRLITE protocols.
• Software Updates: Update the GSM Hybrid software and firmware for access to new features.

 NOTE: Existing users wishing to update the GSM Hybrid application software must also download the latest firmware from our Wiki page to access all the extra features.

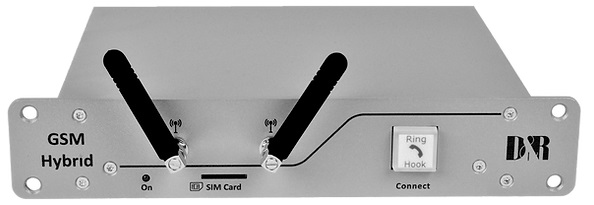

front panel

• Rack Mount Case: The electronics are securely housed in a durable 9.5” metal rack mount case, ideal for professional environments.
• Dual Antennas: Both antennas ensure a stable, uninterrupted connection to the nearest GSM tower.
• SIM Card Slot: Easily insert a standard SIM card from your preferred provider into the slot on the left side, with the copper contact area facing down and the cut-off corner at the top left.
• Connect Button (RING): The connect switch enables you to manage calls from the GSM network, remotely operable via the GPI Jack on the back panel.
• Dedicated GSM Number: The GSM Hybrid features its own dedicated number for direct dial-in, with seamless integration into your mixing console via built-in GPIOs.

Type of SIM card: Standard

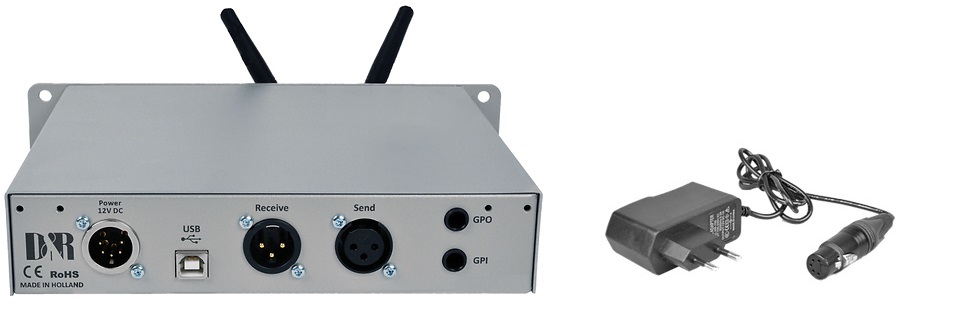

Back Panel

• Power Supply: The unit is powered by an external 12-volt 1A adapter, included in the package for your convenience.
• USB Connectivity: Connect the device to your computer using the included USB 2.0 cable for easy configuration and dialing via the TFT screen.
• Back Panel Connections:
  • USB Port: Connects the device to your PC for call management and configuration.
  • Receive (XLR): Outputs the received signal from the caller to a mixing console’s line input.
  • Send (XLR): Receives audio from the mixing console and sends it to the caller.
  • GPO Jack: Allows remote control of signaling devices like D&R’s On-Air Light.
  • GPI Port: Enables remote operation of the Connect switch (Ring/Hook) on the front panel.

Software

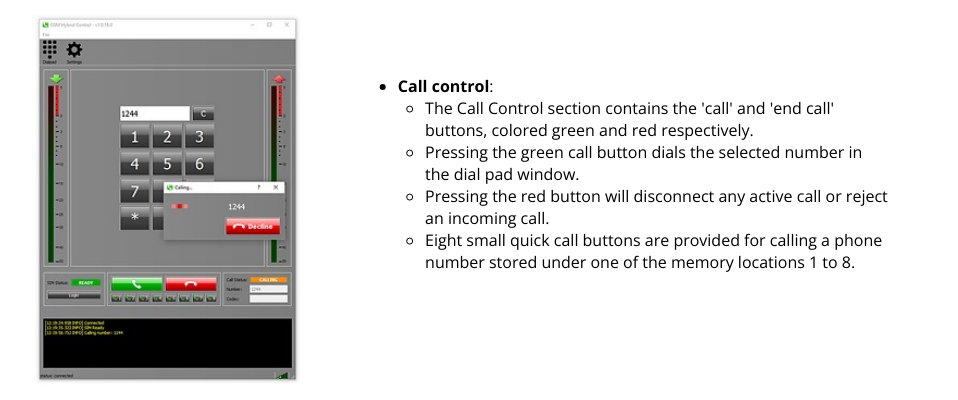

• GSM Hybrid Control Application: The GSM Hybrid Control application is essential for configuring and managing the GSM Hybrid. It allows you to adjust input and output levels via the Settings menu, and you can make calls using the dial pad window.

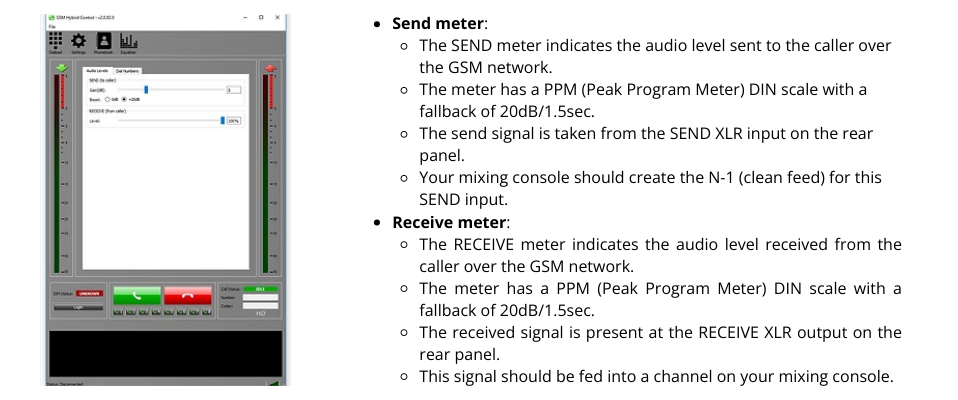

• Application Features: The application displays SIM card status, call status, and PPM meters for input and output levels.
• Main Window: The Main window shows the selected item from the Menu toolbar, with the ability to switch views at any time, even during an active call.

just to know…

• Main studio number:

  • If you need higher audio quality than your regular digital or analog studio hybrids provide, use the GSM Hybrid as your main studio number.

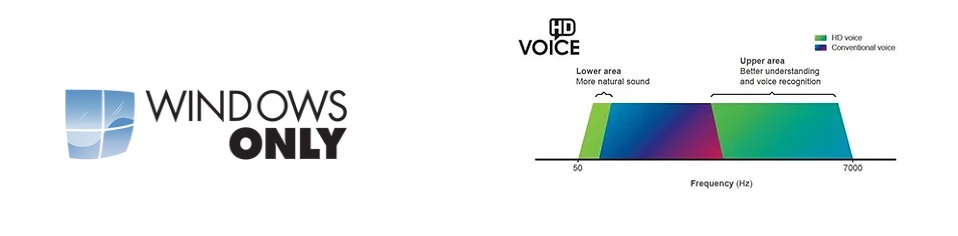

  • Callers with an HD Voice subscription will experience extended bandwidth up to 7kHz, resulting in clear, natural-sounding audio. Give it a try!

​

• Mounting kit for dual hybrid:

  • If you need a dual Hybrid in 19″ rack format, you can use our mounting kit to combine two 9.5″ units into one dual Hybrid.

  • This easily fits into a 19″ rack, providing you with a compact and efficient studio setup.

  • You can purchase this mounting kit inside our products list.
