Roland V-1HD - Portable HD Video Switcher

Posted on 17 May 2022

v-1hd_hero

The V-1HD makes it easy to connect and switch video cameras, smartphones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader. It supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” ideal for news broadcast or corporate training productions.

Main Features

Inputs

The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC is accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy-protected content from devices such as Blu-ray disc players.

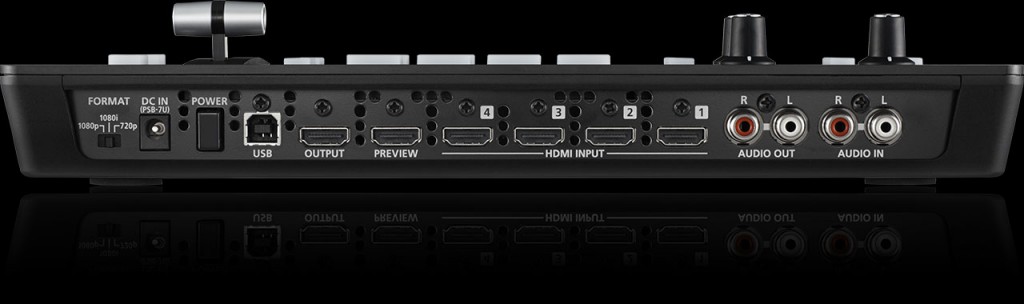

v-1hd_img_panel_rear

Professional Switching

The V-1HD has large back-lit buttons for intuitive video switching even in low light conditions. Red lit buttons indicate the current source being output and green lit buttons indicate the video that will be output on the next transition. The V-1HD even lets you know which inputs have sources connected by illuminating the buttons of the inputs with connected sources. The V-1HD features broadcast style Preview/Program switching for professional results. The TRANSFORMER buttons can be used for instantly switching the video or applying effects. Three transition selection buttons permit quick change of mixing style to match style changes in a performance or broadcast. Transition effects include CUT, MIX (4 types) and WIPE (30 types). The auto-scan function switches the video automatically across the four video inputs. By using the T-Fader and BPM SYNC buttons, you can deliver visuals synced to a music performance. Use the FREEZE button to temporarily pause the incoming video. The output fade function makes the output video fade to black or white.

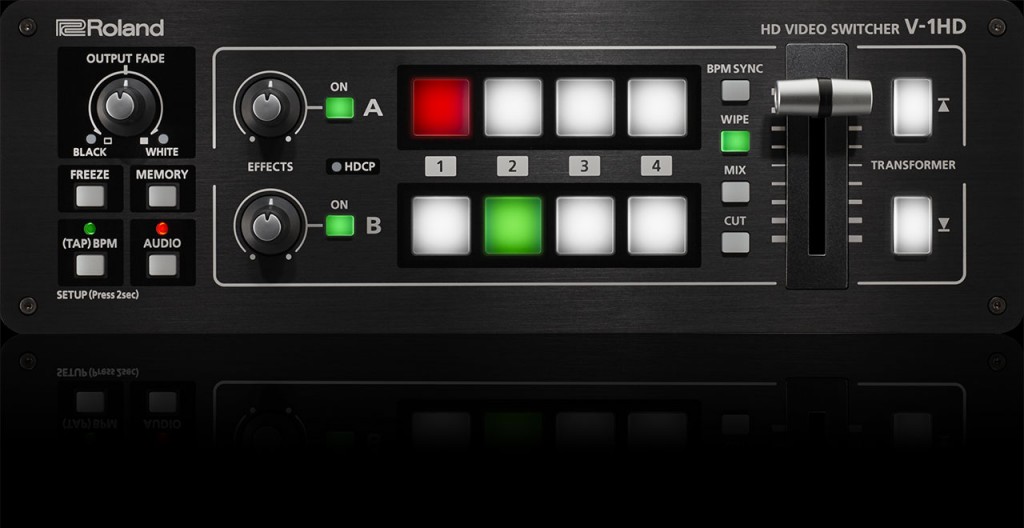

v-1hd_img_panel_top

Audio Mixing

Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line-level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. The audio follows function enables the audio to transition along with the video. The reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.

v-1hd_img_panel_rear3

View the product page here.
