RF Capture and Playback Test System
Posted on 28 May 2020
Capturing RF Signals

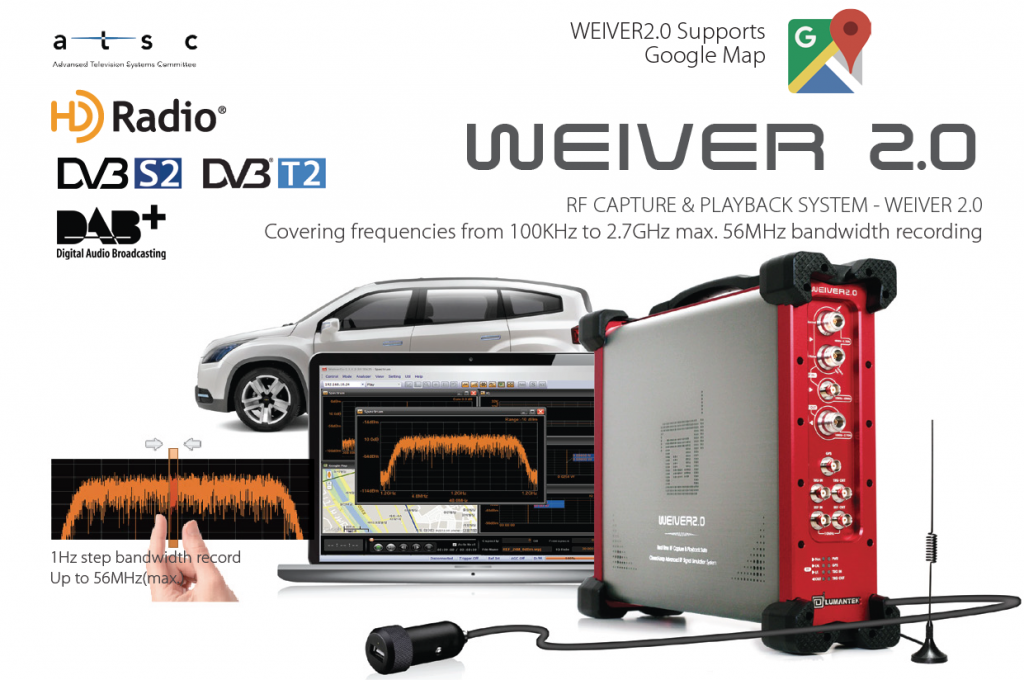

With Waiver 2.0, you can capture worldwide broadcasting standards of Radio (AM, FM, RDS, DAB, HD Radio, XM Sirius) and DTV (ATSC3, DVB-T/H, DVB-T2/S2, DVB-C, DMB, CMMB, DTMB, ISDB-T/B, OpenCable, and ATSC-M/H). Also, you can capture radio broadcasting ATV (NTSC, PAL), RDS, TMC, LTE, Bluetooth, and Wifi. Waiver is equipped with a GPS module for accurate location information to evaluate the strength of the RF signal. Basically, you can capture any live signals and then playback wherever and whenever you need to.
The RF Down-converter can receive 0.1MHz – 2.7GHz RF signal and downconverts to 75MHz IF. Capture worldwide Broadcasting standards of DTV (FM, AM, ATSC, DVB-T/H, DVB-T2/S2, DVB-C, DMB, CMMB, DTMB, ISDB-T/B, OpenCable, and ATSC-M/H), Radio Broadcasting ATV (NTSC, PAL), RDS, TMC, LTE, Wifi.

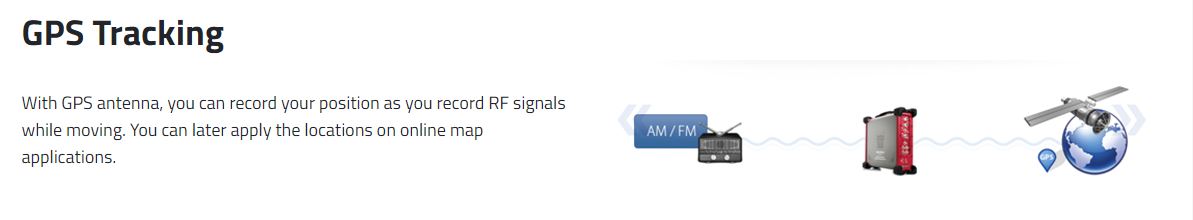

Weiver is equipped with a GPS module for accurate locative information to evaluate the strength of the RF signal. The GPS information is stored in the NMEA protocol and the GPRMC information is stored in a second log file. An active Antenna GPS is used. Weiver via input port enables the incoming reference signal to be synchronized at 10MHz frequency.
100 KHz to 2.7 GHz
Waiver 2.0 can capture signals in the frequency range between 100 KHz to 2.7 GHz (max). As for bandwidth, you can stretch from 1 MHz to 56 MHz.
7KG Weight Portable 70W Low Power Consumption
WAIVER 2.0 is designed for lightness and portability, operable with vehicle cigar power without complex electrical add-ons.
Bias-Tee is a T-shaped component attached to the signal cable to supply power to the antennas.
Amplifier (LNA, TR, FET and etc) circuits are configured in close proximity to the antennas to improve receive sensitivity, and a separate DC power supply (DC) is required to activate these active elements

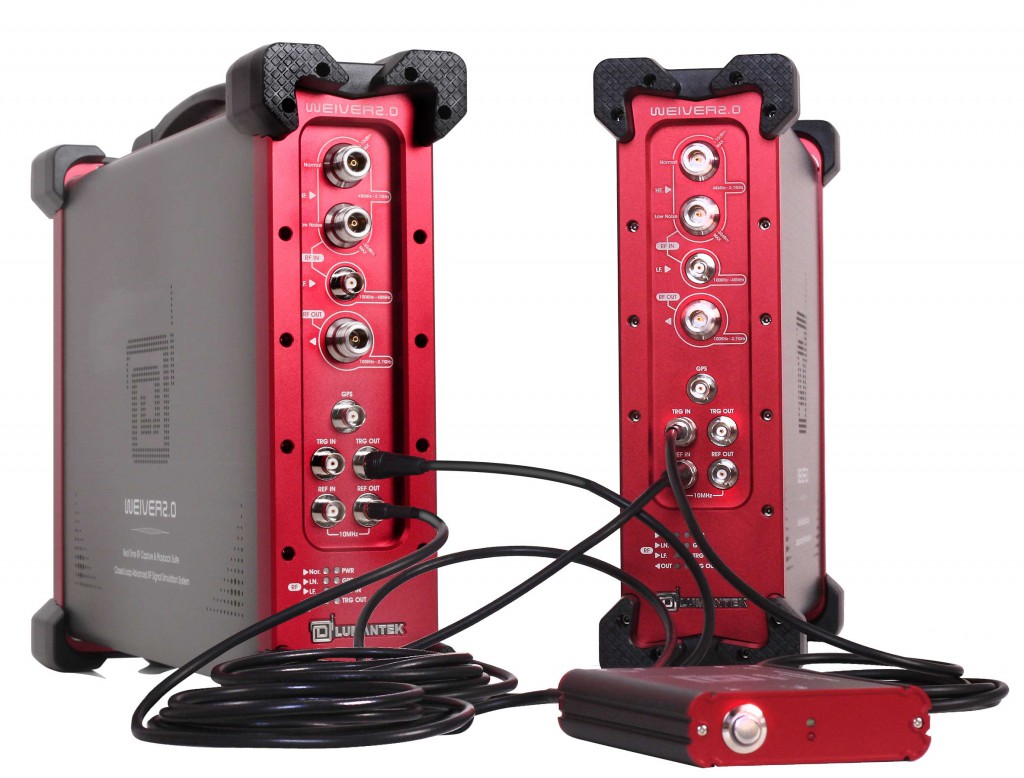

Waiver 2.0 is capable of recording RF signals anywhere you are. It is perfect to test the RF sensitivity or receptor capacity of your devices. With 7kg of weight and 70 watts of low power consumption, Waiver 2.0 gives you great mobility in capturing RF signals.
