RDL TX™ SERIES

TX™ Series modules are application-specific modules for the A/V and related industries. Many TX™ modules offer galvanic transformer isolation. Module functions include signal detection, switching, amplification, format conversion, line driving, mixing, distribution, twisted-pair sending/receiving and more. Each TX™ is a compact module engineered to provide higher performance and longer life than other industry products. TX™ modules are solid encapsulated hybrid circuits in durable industrial black plastic/steel or aluminum enclosures with clear bold white lettering for the jacks, terminal block connections, trimming controls and switches.

TX™ modules are constructed in two widths and heights. All TXs are the same length, have the same mounting hole configuration, and are compatible with all TX™ series mounting options. A complete range of mounting options is available for systems utilizing multiple TX™ modules. A single TX™ module may be mounted right where its function is needed, and are widely used in system designs with OEM or other RDL products. TX SERIES modules are designed and manufactured in the U.S.A.

DRA-35T

TX Series DIN Rail Adapter

Highlights

• Mounts One RDL TX™ Series ™ Module to 35 mm DIN Rail
• Compact Design Permits Mounting Multiple TX™ Series Modules to a Single DIN Rail
• Ideal for Use when Traditional Rack Mounting is Not Desired


TX-10B

Bridging Input Transformer

Highlights

• Used to add transformer isolation to any line-level RDL product input
• Frequency response: 20 Hz to 20 kHz (+/- 0.5 dB)
• THD: < 0.05% (1 kHz)
• 10 kΩ input bridges any audio line
• Balanced input and output
• Connections on Detachable Terminal Blocks


TX-1A

Balanced to Unbalanced Transformer – Adjustable

Highlights

• Provides transformer isolation between balanced line and unbalanced input
• Level trimpot adjusts output 4 to 24 dB below input level
• Input may be 10 kΩ bridging or 600 Ω terminated
• Frequency response 20 Hz to 20 kHz (+/- 0.5 dB)
• THD: < 0.05% (1 kHz)

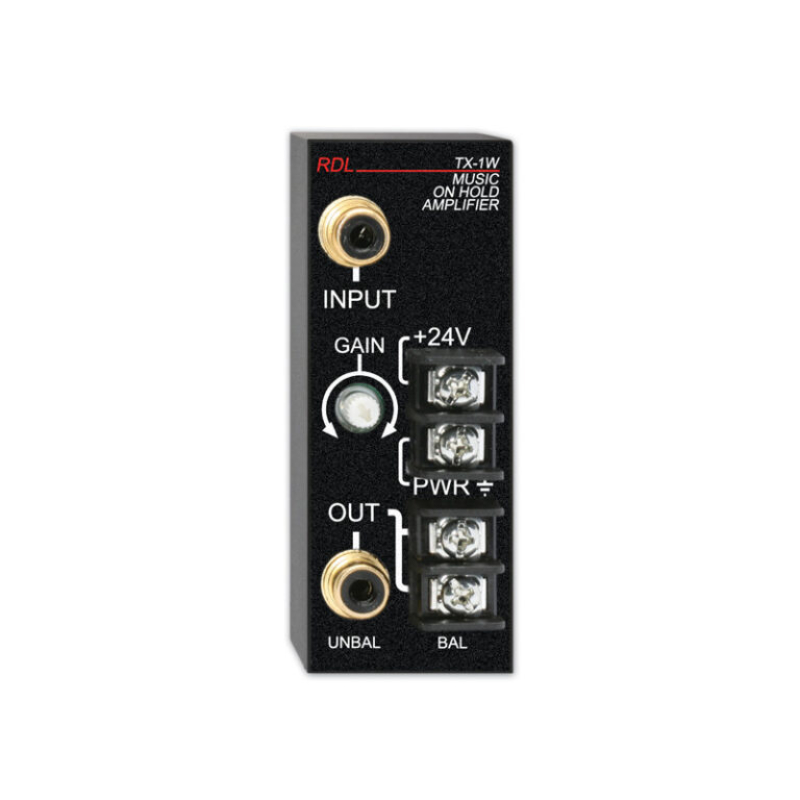

TX-1W

Music on Hold Amplifier – 1 Watt

Highlights

• Feed Audio into Telephone Equipment Music-on-Hold Input
• Adjustable Audio Level
• Optimized Sound Quality
• Unbalanced Output, up to 1 Watt
• Balanced Transformer driver Output
• Ultra Compact Size

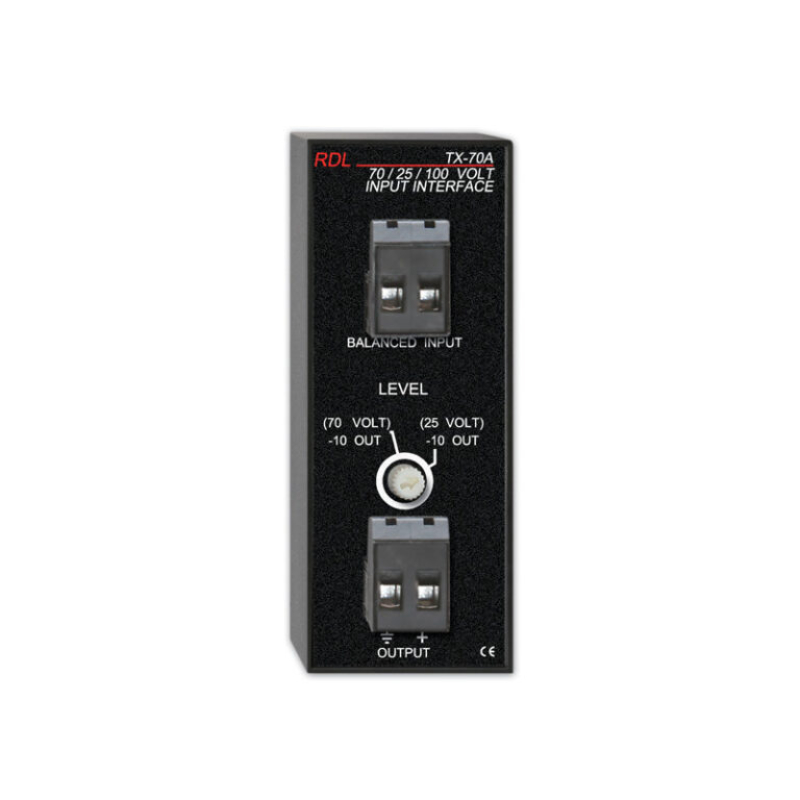

TX-70A

25 V, 70 V, 100 V Speaker Level Input Interface – Unbalanced line output

Highlights

• Matches a 100, 70 or 25 volt speaker line to any unbalanced line-level audio input
• Trimmer adjusts output level for various input voltage/power levels
• Frequency response: 20 Hz to 20 kHz (+/- 0.5 dB)
• THD: < 0.05% (1 kHz)

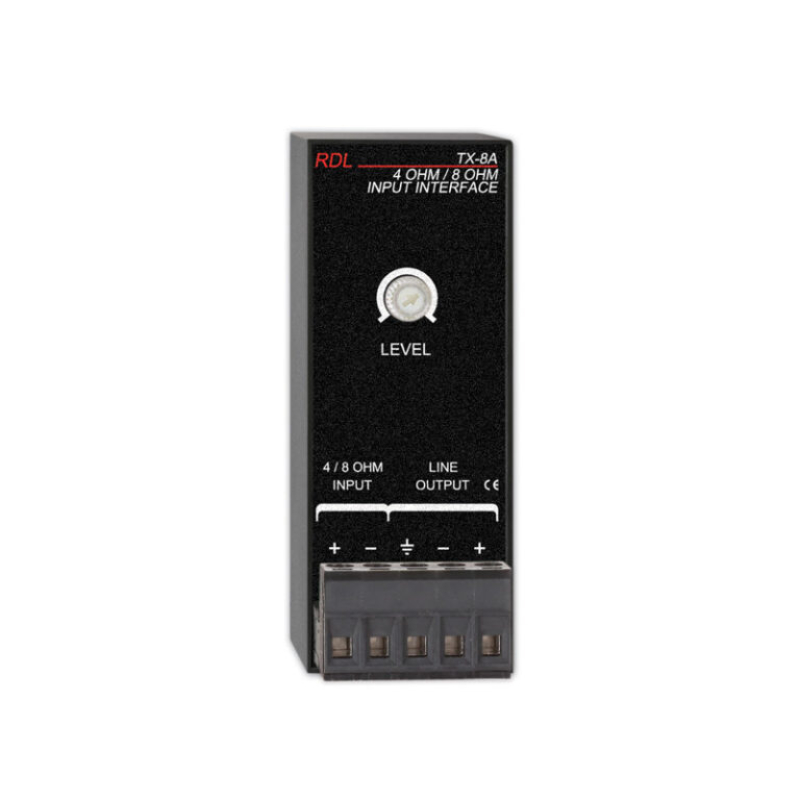

TX-8A

4 Ohm / 8 Ohm Input Interface

Highlights

• Converts an Amplifier Output to Line Level
• Bridges 4 or 8 Ohm Speaker Line
• Adjustable for Wide Range of Input Power Voltage
• Converts Amplified Levels from 0.5 W to 400 W
• Excellent Low Frequency Response
• Suitable to Feed a Subwoofer Amplifier Input
• Detachable Terminal Block Connections
• Balanced or Unbalanced Output
• Superior Quality Audio Transformer
• Bifilar Windings
• Galvanic Isolation
• Convenience of RDL TXs

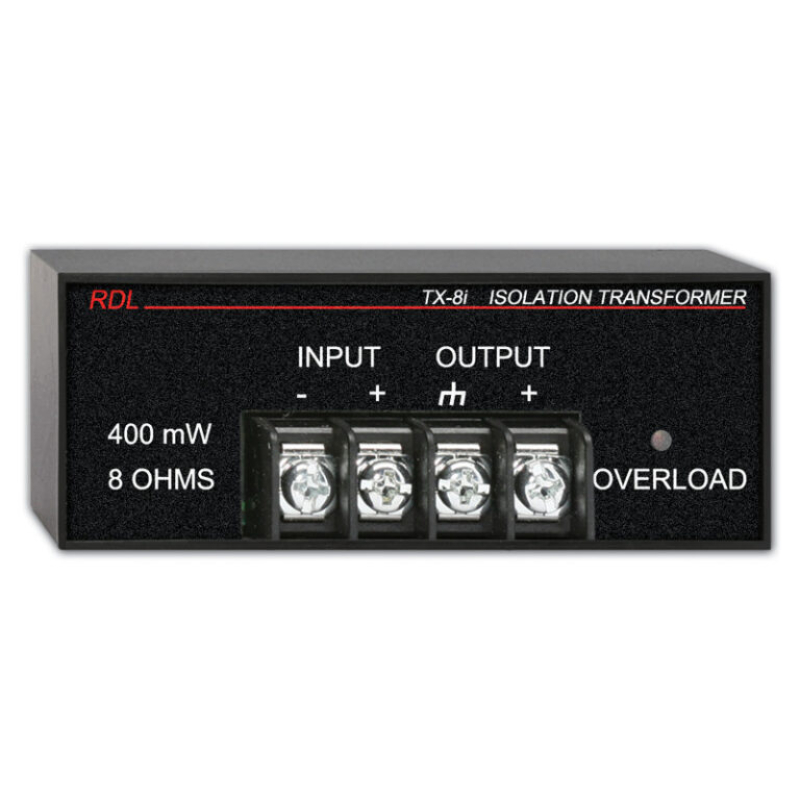

TX-8i

Headphone Isolation Transformer

Highlights

• Isolates headphones from source equipment
• Drives headphone impedance 8 Ω or greater
• Galvanic Isolation with the Convenience of RDL® TXs™
• Overload LED flashes when operating level is exceeded
• THD+N: < 0.1% (1 kHz @ 50 mW)
• Bandwidth: 100 Hz to 15 kHz
• HI-POT: 1.5 KVAC, 1mA, 2 Sec.

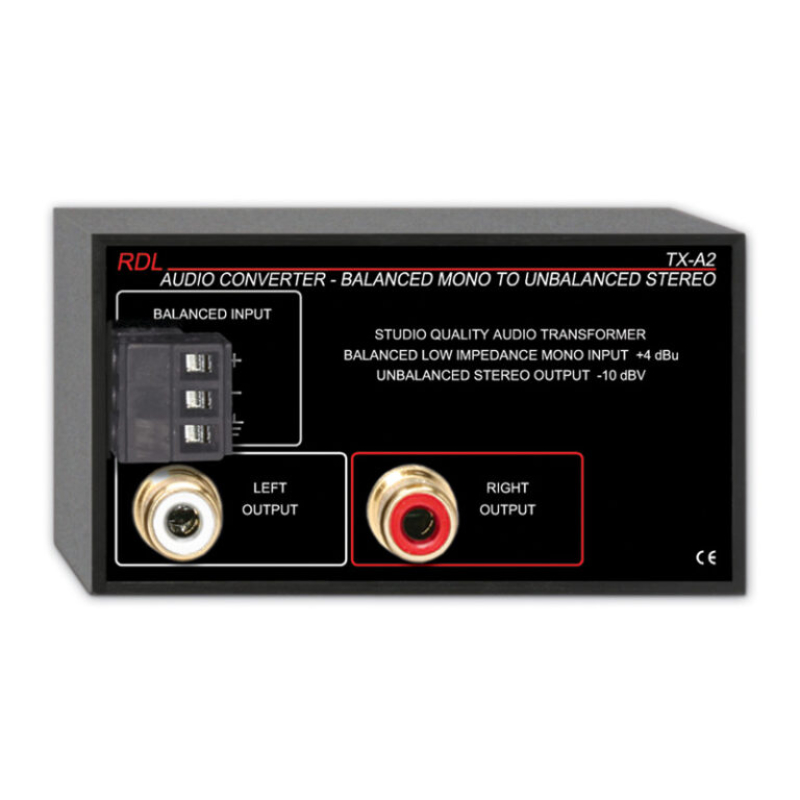

TX-A2

Audio Converter – Balanced to Unbalanced

Highlights

• Unbalanced Audio Outputs from a Balanced Line
• Balanced to Unbalanced Conversion
• Mono Input to Stereo Output
• +4 dBu Input Level to -10 dBV Output Level
• Studio-Quality Transformer Isolation
• Passive Converter with Output Jacks

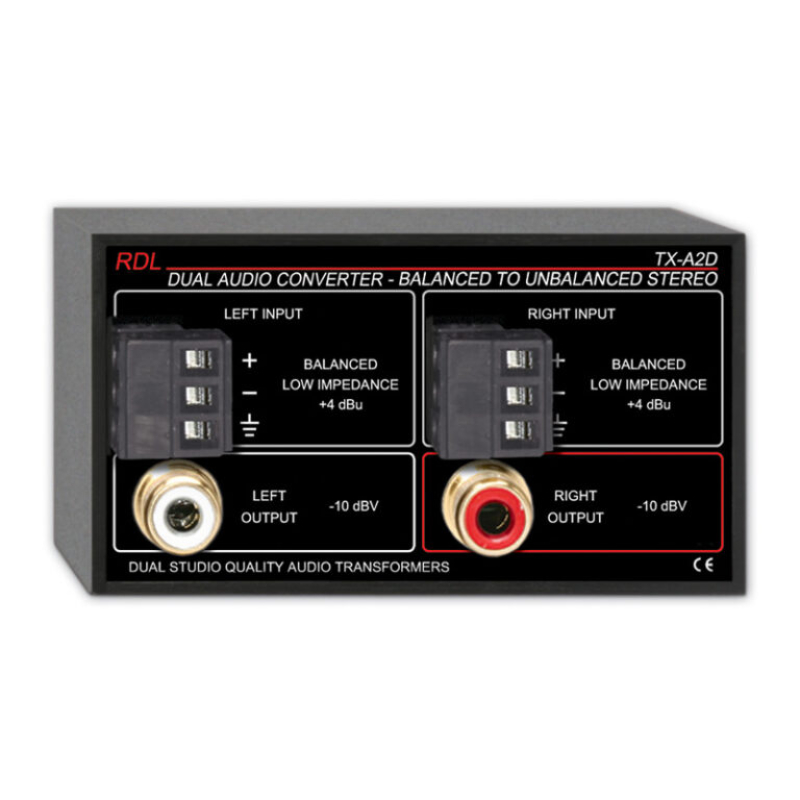

TX-A2D

Dual Audio Converter – Balanced to Unbalanced

Highlights

• Unbalanced Audio Outputs from a Stereo Balanced Line
• Balanced to Unbalanced Conversion
• Stereo Input to Stereo Output
• +4 dBu Input Level to -10 dBV Output Level
• Studio-Quality Transformer Isolation
• Passive Converter with Output Jacks

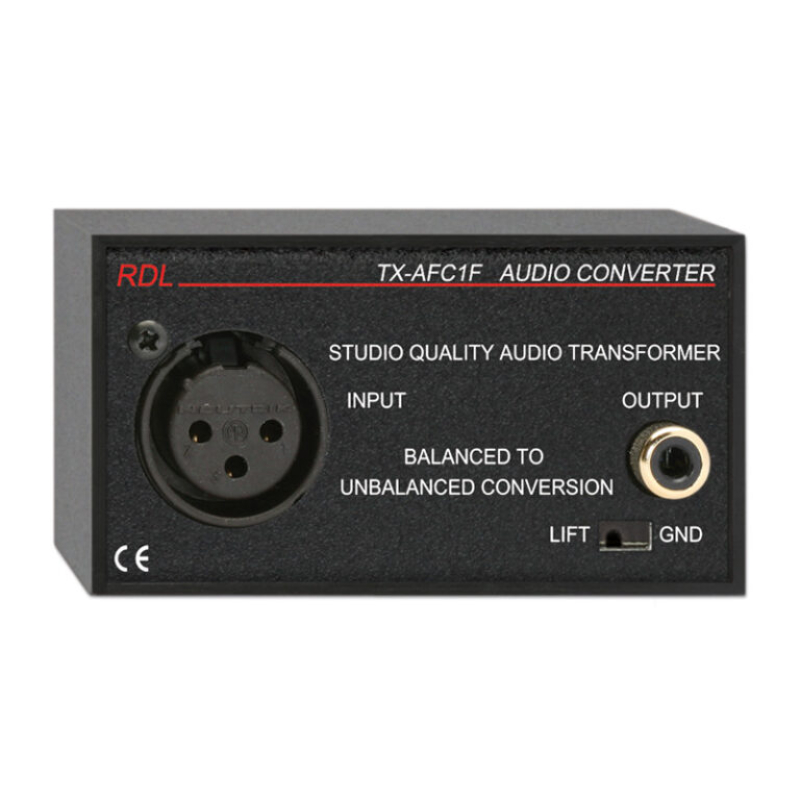

TX-AFC1F

Balanced to Unbalanced Audio Transformer – XLR, RCA

Highlights

• Studio Quality Bifilar Audio Transformer
• Galvanic Isolation with the Convenience of RDL® TXs™
• Connectorized with Gold Contacts on Input and Output
• Balanced to Unbalanced Conversion
• Professional to Consumer Level Conversion
• Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
• THD: < 0.06% (50 Hz to 20 kHz, +4 dBu input)
• 0.0015% (Typ. 1 kHz, +4 dBu input)
• Input: +4 dBu (+22 dBu max.), 2.5 kΩ Bridging, XLR
• Output Level: -10 dBV, Phono jack
• CMRR: >85 dB (balanced input, 50 to 60 Hz)

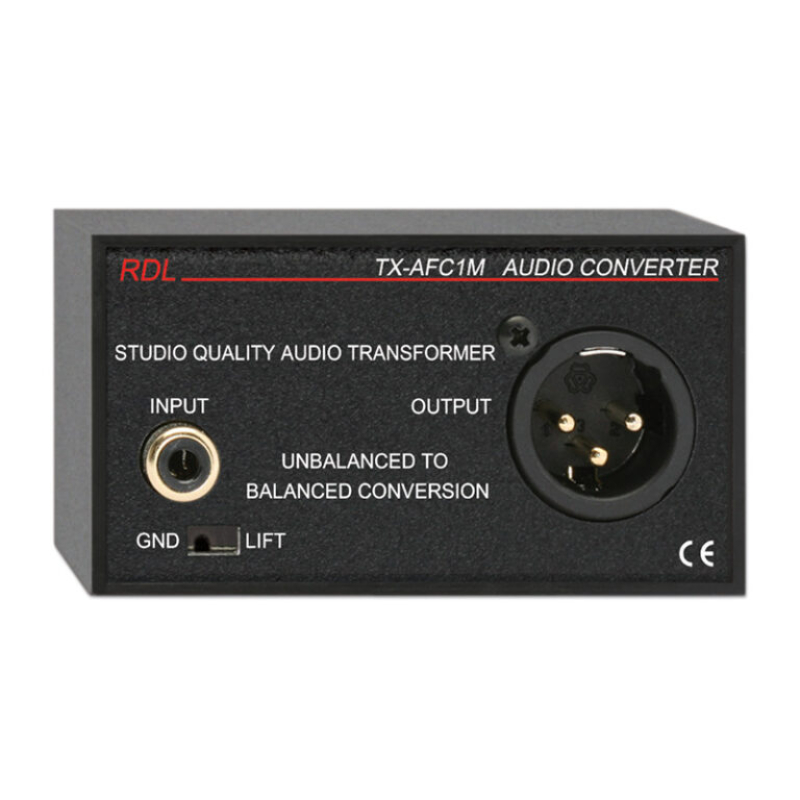

TX-AFC1M

Unbalanced to Balanced Audio Transformer – RCA, XLR

Highlights

• Studio Quality Bifilar Audio Transformer
• Connectorized Audio Format Conversion
• Galvanic Isolation with the Convenience of RDL TXs
• Gold Contacts on Input and Output
• Unbalanced to Balanced Conversion
• Unity Gain


TX-AT1

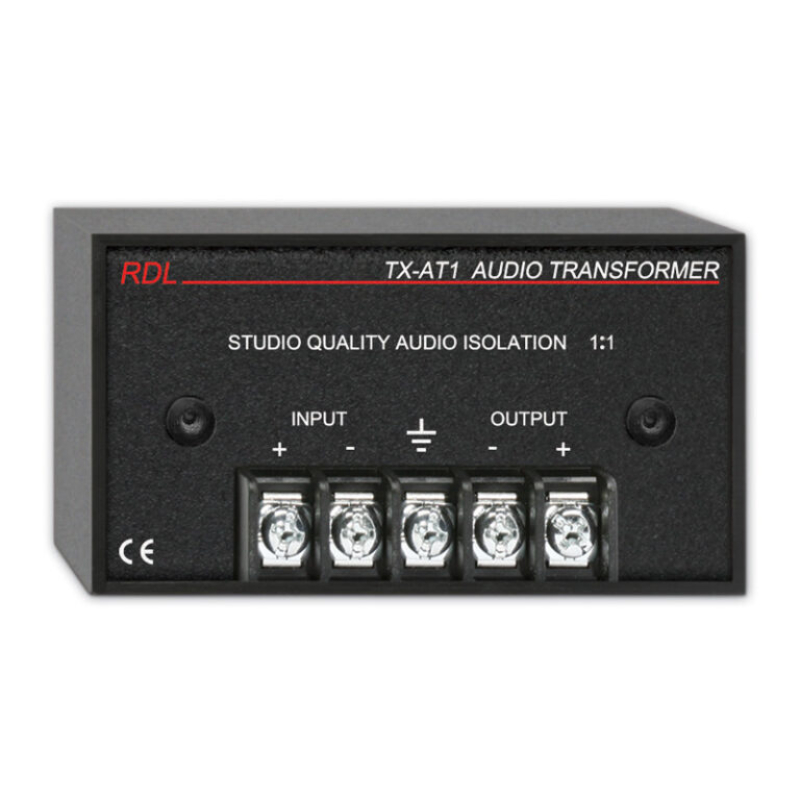

Audio Isolation Transformer – 600 Ω 1:1

Highlights

• Studio Quality Bifilar Audio Transformer
• Terminal Block Transformer Connections
• Galvanic Isolation with 1:1 Transformer Coupling
• Transformer to Drive 600 Ohm Line
• Convenience of RDL® TXs™
• Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
• THD: < 0.035% (50 Hz to 20 kHz, +4 dBu input)
• 0.001% (Typ. 1 kHz, +4 dBu input)
• Input / Output Level: +4 dBu, +22 dBu max.
• CMRR: > 85 dB (balanced input, 50 to 60 Hz)

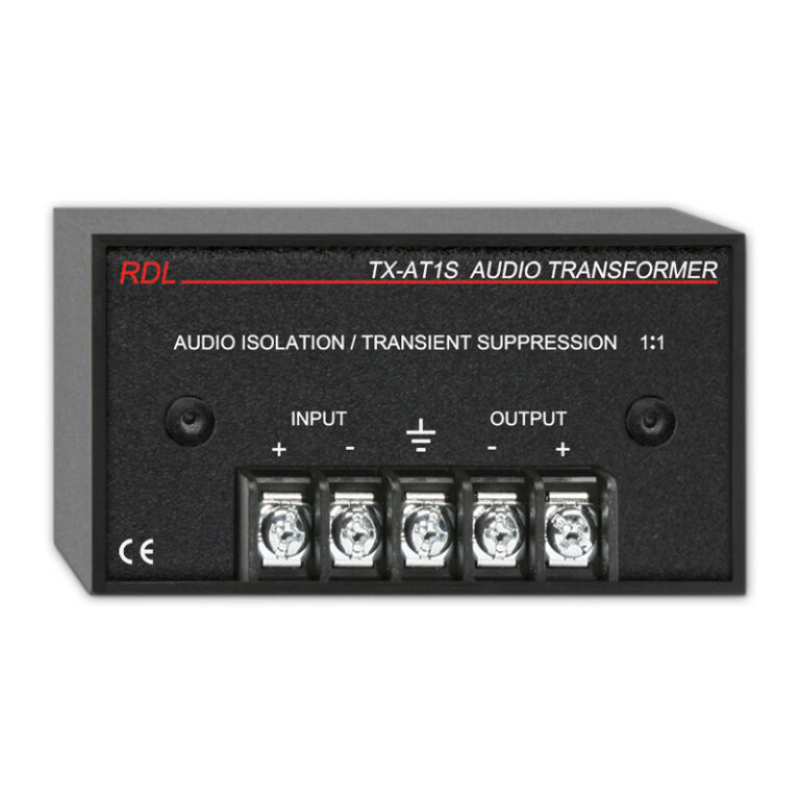

TX-AT1S

Audio Isolation Transformer with Suppression

Highlights

• Studio Quality Bifilar Audio Transformer
• Transient and RF Suppression
• Terminal Block Transformer Connections
• Galvanic Isolation
• 1:1 Transformer Coupling
• Transformer to Drive 600 Ohm Line
• Convenience of RDL TXs


TX-AVX

Automatic Video Switch – 2×1 – BNC

Highlights

• Automatic Switchover to a Secondary Video Source
• Loss of Video Detection
• Dry-Contact Relay Output
• Detection of NTSC or PAL Signals
• Operation from AC or DC Power

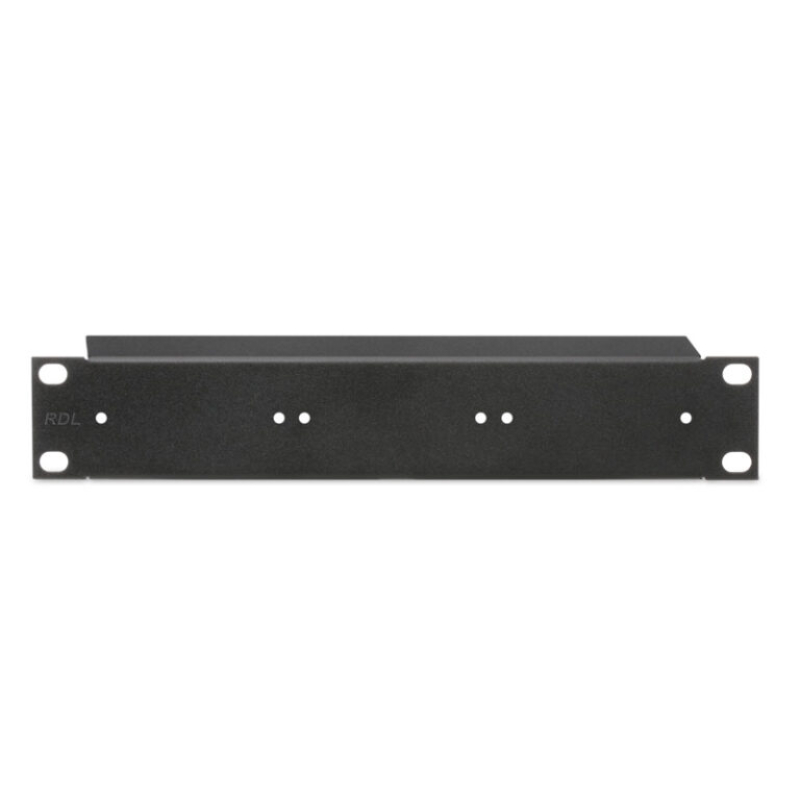

TX-HRA3

10.4″ Rack Mount for 3 TX Series Products

Highlights

• Mounts up to Three RDL TX™ Series Products in a 10.4″ Rack
• Occupies One RU in a 10.4″ Rack
• All-Steel Construction

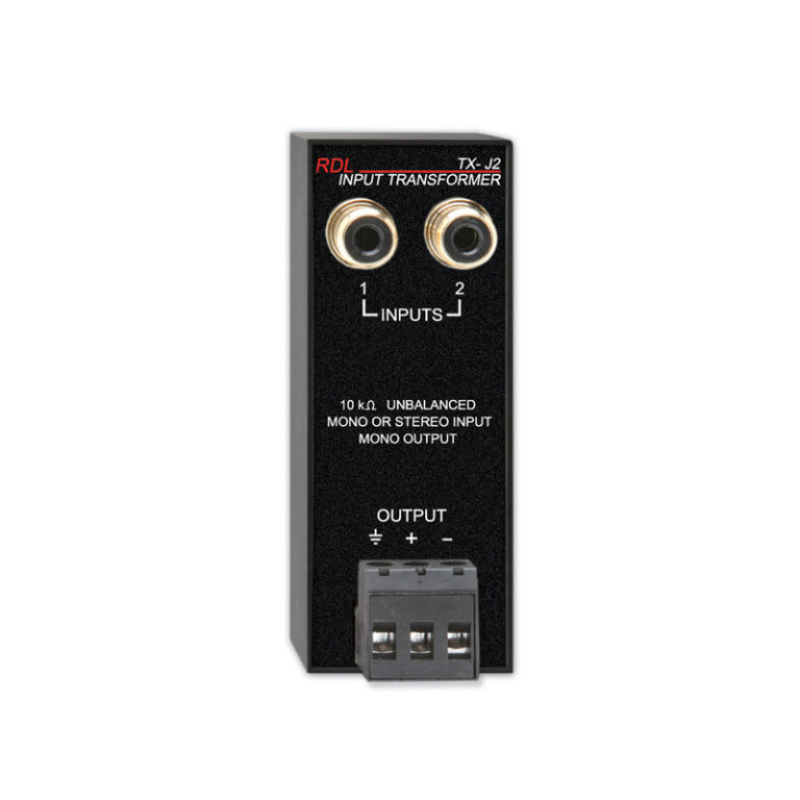

TX-J2

Unbalanced Input Transformer – Unbalanced stereo inputs to summed balanced mono output

Highlights

• View the New, Updated TX-J3
• Mix two unbalanced audio signals to mono balanced
• Combine stereo into mono with balanced output
• Unbalanced to balanced conversion without gain
• Hum cancellation on unbalanced line inputs
• Frequency response 30 Hz to 20 kHz (+/- 1 dB)

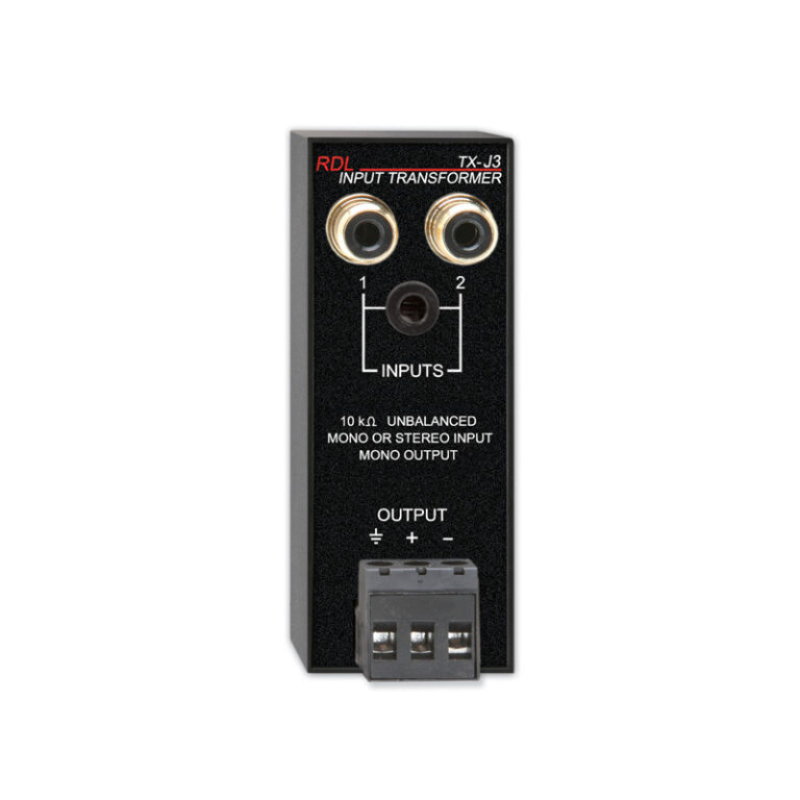

TX-J3

Unbalanced Input Transformer – Unbalanced stereo inputs to summed balanced mono output

Highlights

• Input on Dual Phono Jacks or Mini-jack
• Mix two unbalanced audio signals to mono balanced
• Combine stereo into mono with balanced output
• Unbalanced to balanced conversion without gain
• Hum cancellation on unbalanced line inputs
• Frequency response 30 Hz to 20 kHz (+/- 1 dB)
• Passive Converter with Input Jacks


TX-LC2

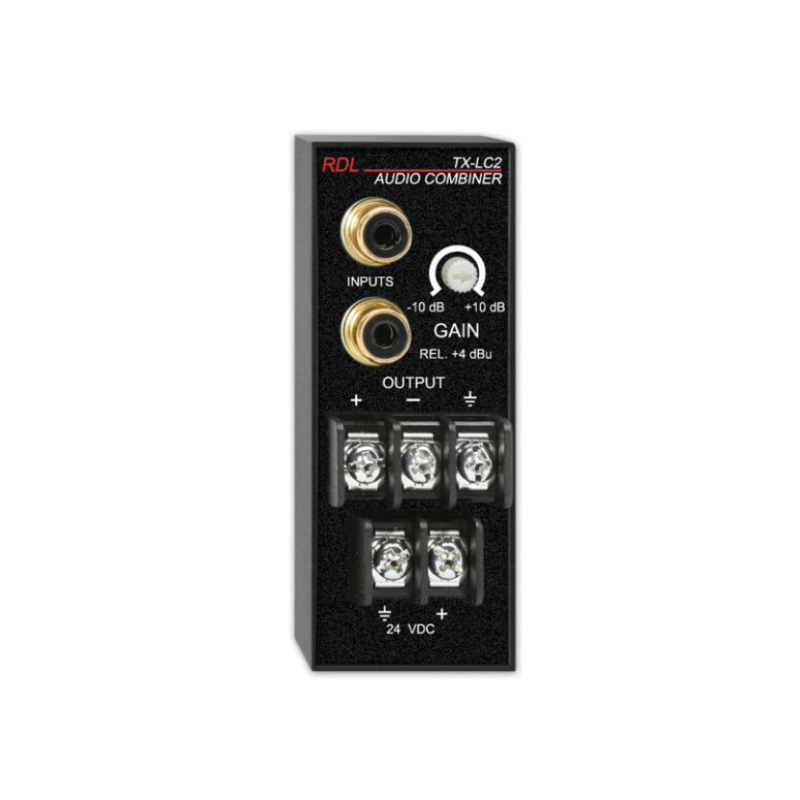

Unbalanced to Balanced Line Combiner

Highlights

• Mix 2 Unbalanced Audio Signals to Mono Balanced
• Combine Stereo Into Mono with Balanced Output
• Output Gain Trim
• Isolation Between Inputs
• Unbalanced to Balanced Conversion
• High-Quality Audio

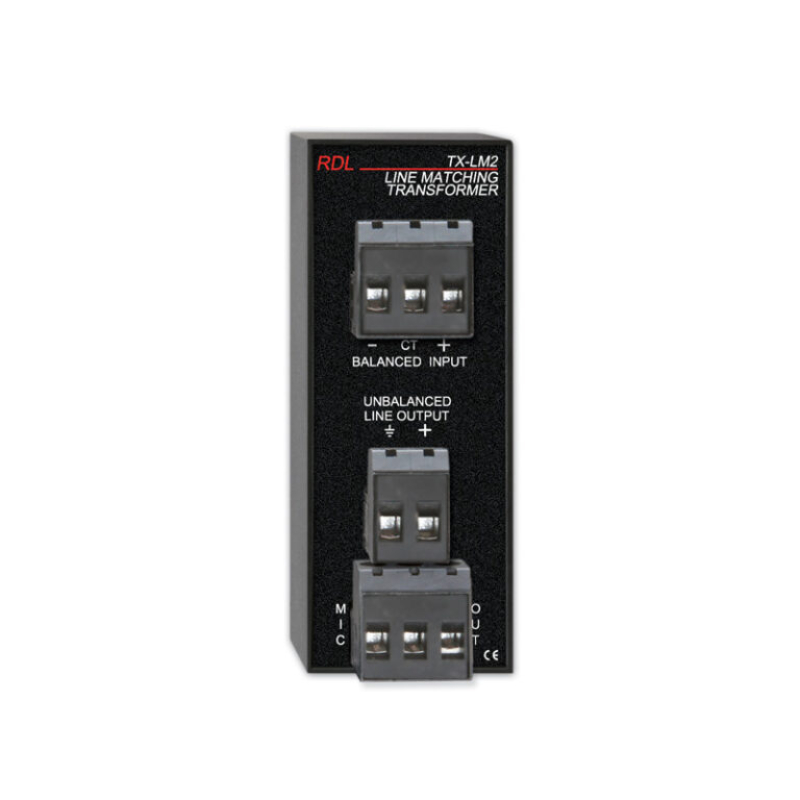

TX-LM2

Line Level to Microphone Level Transformer

Highlights

• Matches balanced 600 Ω phone (or other line) into mic or line input
• Dual outputs:Unbalanced line-level and balanced mic-level
• Frequency response: 20 Hz to 20 kHz (+/- 0.5 dB)
• THD: < 0.05% (1 kHz)

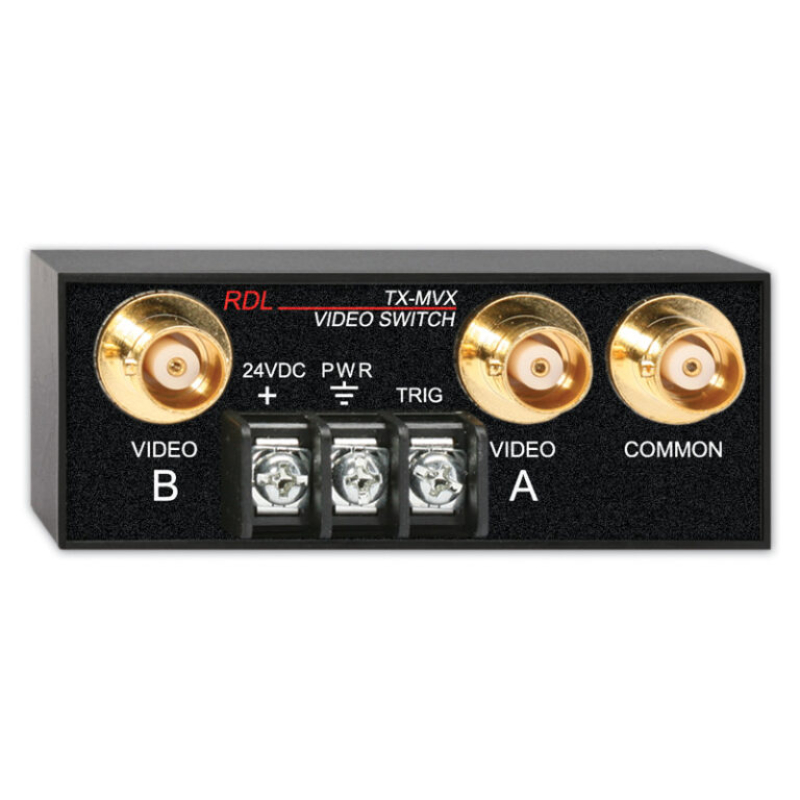

TX-MVX

Manual Rmt Controlled Video Switch – 2×1 – BNC

Highlights





TX-MX2R

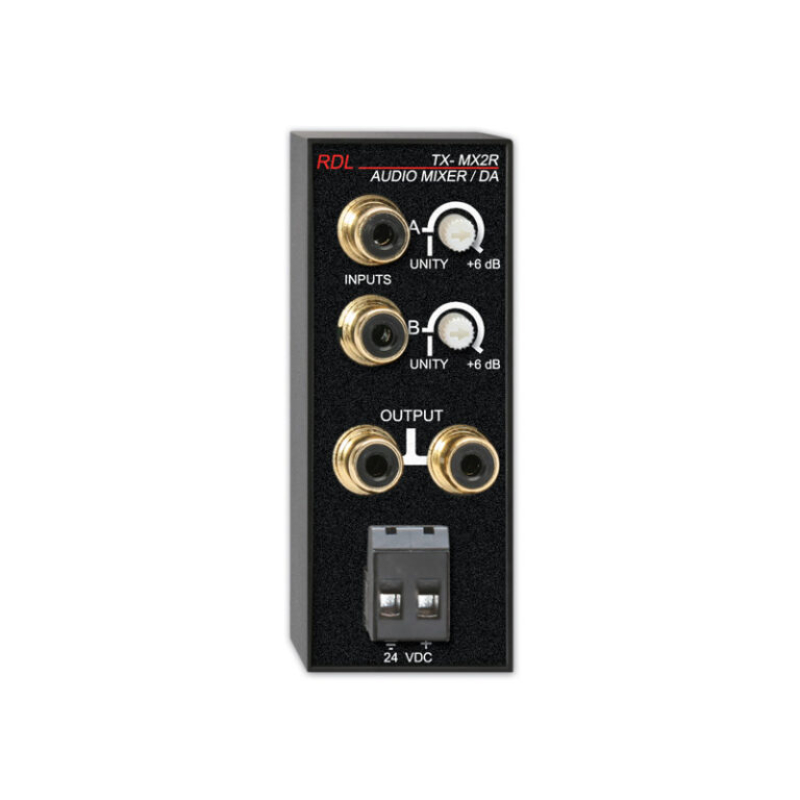

Audio Mixer / Distribution Amplifier

Highlights

• Mix 2 unbalanced mono signals
• Combine stereo into mono
• Gain trim for each input
• Two active isolated outputs from the input signal (s)
• Isolation between inputs
• High-Quality unbalanced audio

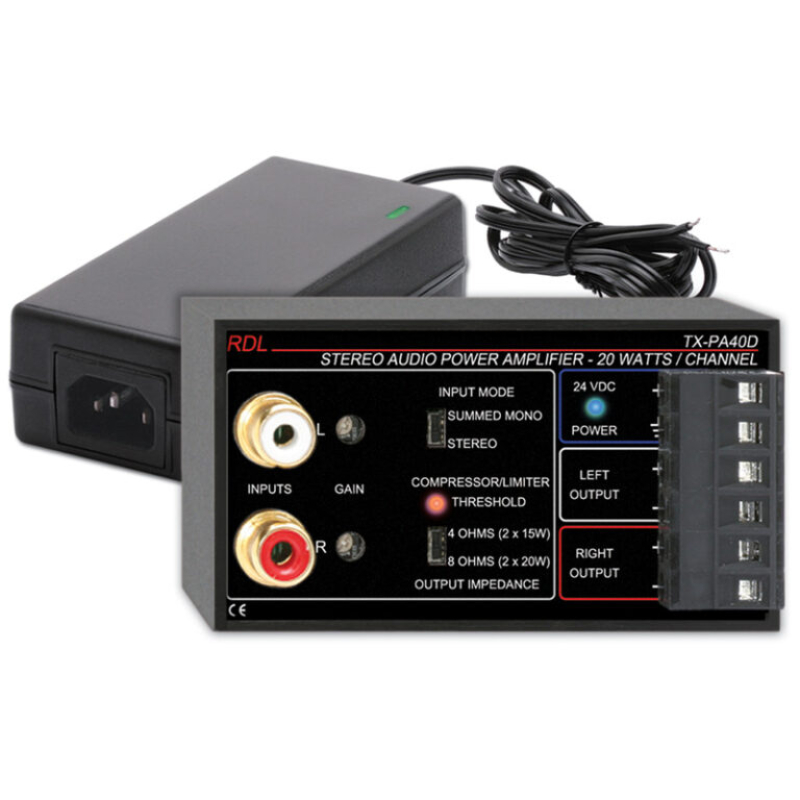

TX-PA40D

40 W Stereo Audio Amplifier – 8 Ω, with Power Supply

Highlights

• Stereo Audio Power Amplifier
• 20 Watts RMS per Channel into 8 Ω – 40 Watts Total
• 15 Watts RMS per Channel into 4 Ω – 30 Watts Total
• Left and Right Unbalanced Phono Jack Inputs
• Switch-Selectable Stereo or Mono Operation
• Studio Quality, Aurally Transparent Compressor/Limiter
• Compressor/Limiter Controls Clipping
• Compressor Produces Maximized Average Output Power
• Compression Enabled Using Input Level Adjustments
• LED to Indicate Audio Compression Threshold
• Outputs Drive 4 or 8 Ohm Speakers
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• TX-PA40D includes North American Cord; TX-PA40DE excludes Power Cord

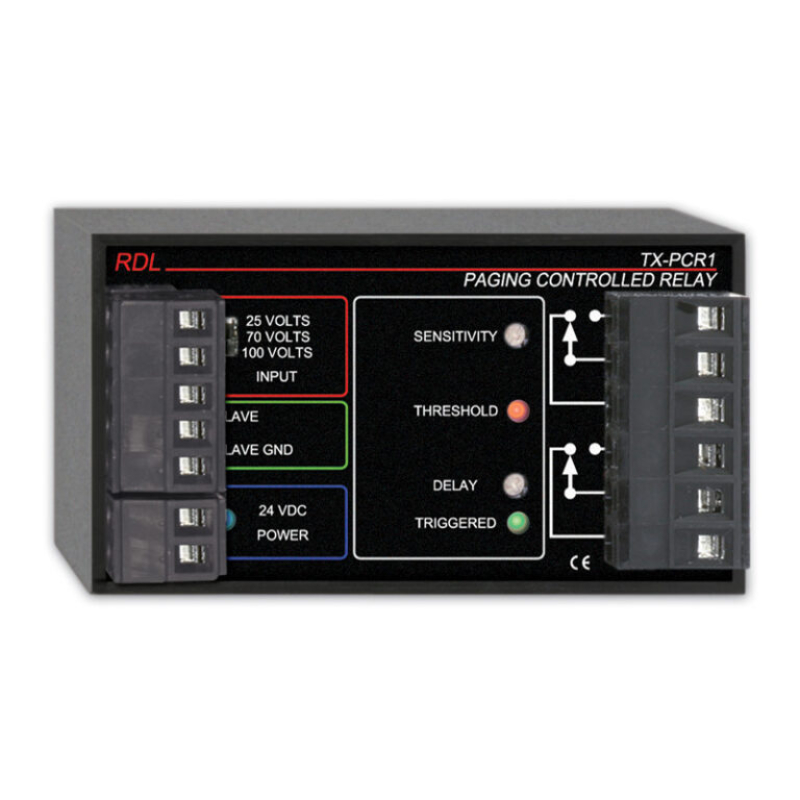

TX-PCR1

Paging Controlled Relay

Highlights

• Switching Functions Controlled by Speaker-Level Source
• Input Accepts Amplified Constant Voltage Signals
• Switch-Selectable Input: 25 V, 70 V, 100 V
• 25 Volt Input Also Accepts 8 Ω Inputs up to 75 Watts
• Transformer-Isolated Input
• Front-Panel Trimmer Provides Sensitivity Adjustment
• Signal Threshold LED Facilitates Sensitivity Adjustment
• Front-Panel Trimmer Provides Release Delay Adjustment
• LED Indicates when Module is Triggered
• Release Delay Adjustable from 3 to 25 Seconds
• Open-Collector Output Active when Module is Triggered
• Switches on Paging or Any Other Amplified Audio Signal
• 8 Amp DPDT Relay Contacts for Switching Speaker Loads
• Ideal for Muting or Switching Primary Speakers During Paging


TX-PD8X

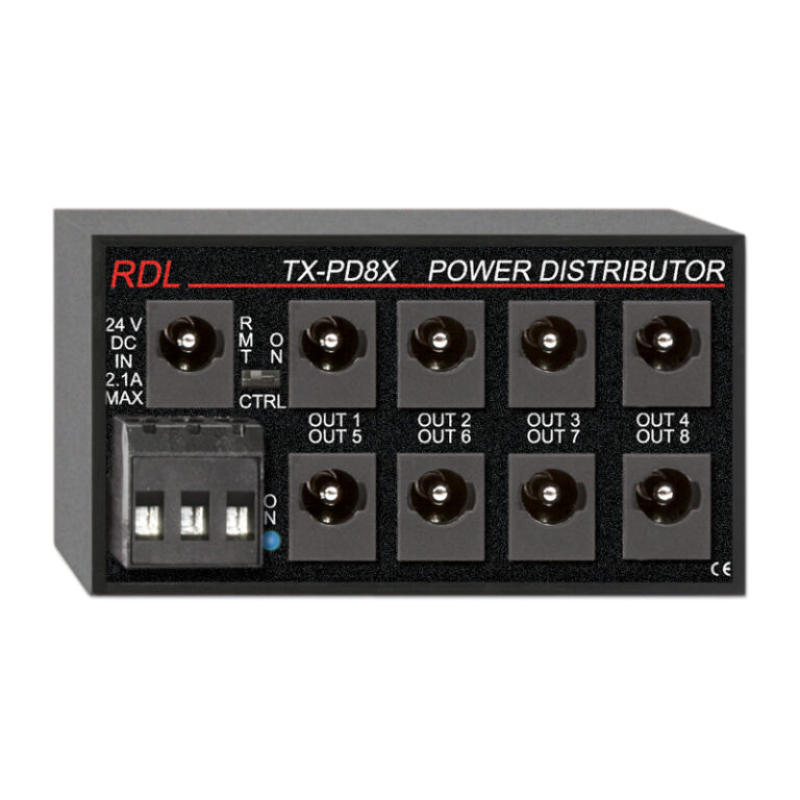

Switching Power Supply Distributor

Highlights

• Distribution of 24 Vdc Power
• Soft-Start from Switching Supply
• Outputs may be Activated by an External Switch
• Outputs may be Activated by an Open-Collector closure to ground
• Directly Controllable by RDL Remote Controls
• Up to 8 Power Distribution Points
• Voltage Presence Indication
• Reverse Voltage Protection

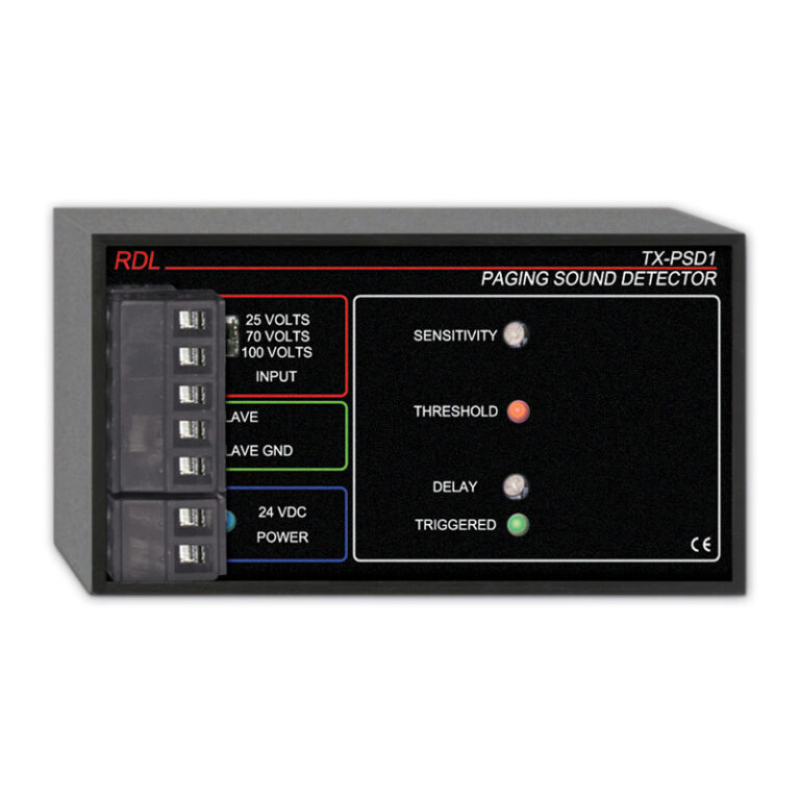

TX-PSD1

Paging Sound Detector

Highlights

• Switching Functions Controlled by Speaker-Level Source
• Input Accepts Amplified Constant Voltage Signals
• Switch-Selectable Input: 25 V, 70 V, 100 V
• 25 Volt Input Also Accepts 8 Ω Inputs up to 75 Watts
• Transformer-Isolated Input
• Front-Panel Trimmer Provides Sensitivity Adjustment
• Signal Threshold LED Facilitates Sensitivity Adjustment
• Front-Panel Trimmer Provides Release Delay Adjustment
• LED Indicates when Module is Triggered
• Release Delay Adjustable from 3 to 25 Seconds
• Open-Collector Output Active when Module is Triggered
• Switches on Paging or Any Other Amplified Audio Signal

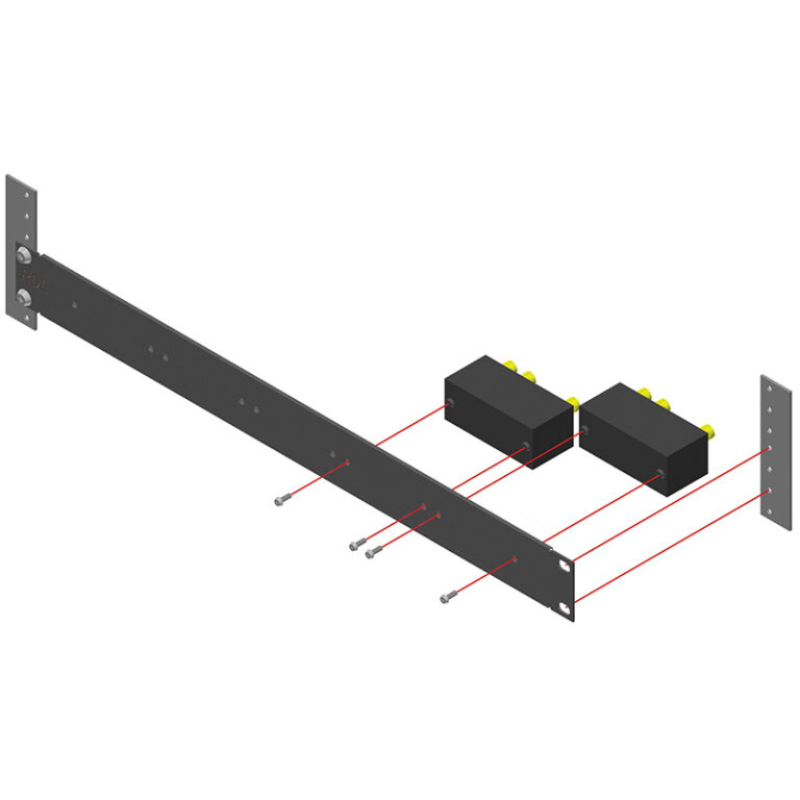

TX-RA5

TX Series 19″ Racking System – 5 modules 1RU

Highlights

• Mounts up to 5 RDL TX™ Series Modules in a 19″ Rack
• Occupies One RU in a 10.4″ Rack
• All-Steel Construction


TX-RRB1

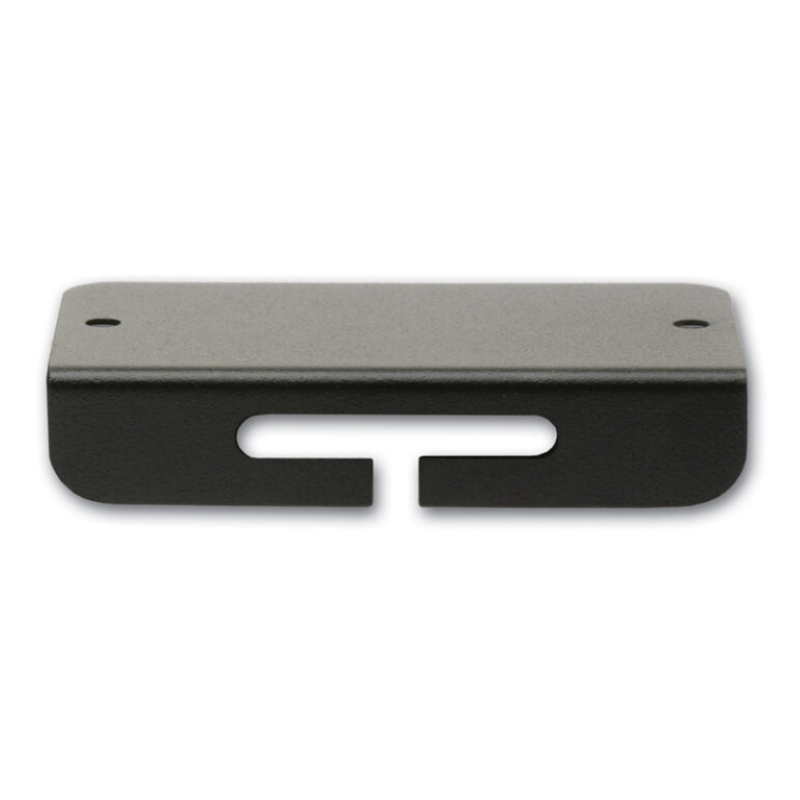

Rear rack rail mounting kit for any TX series module

Highlights

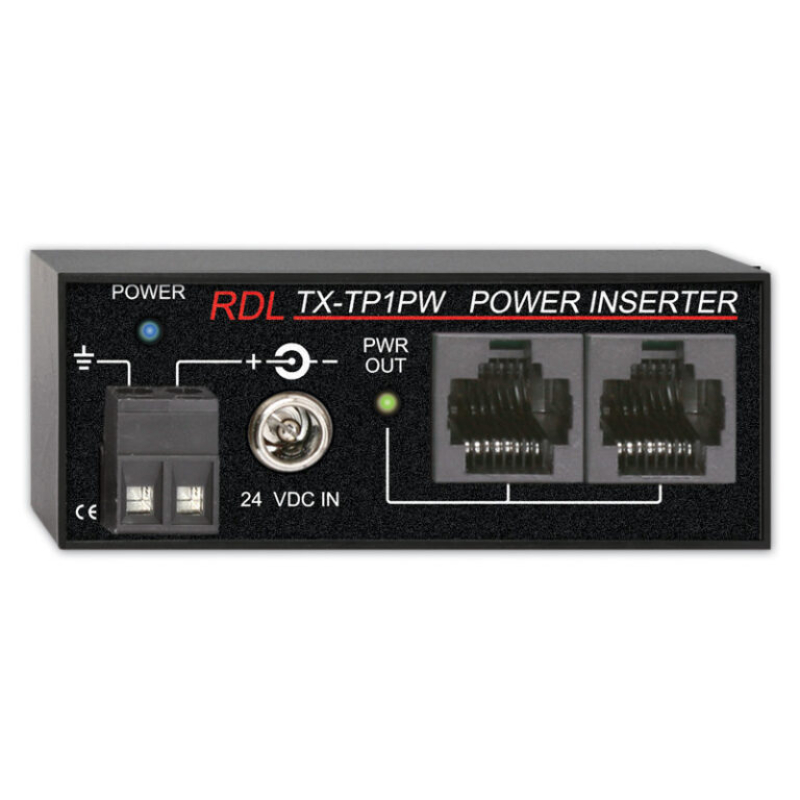

TX-TP1PW

Power Inserter – Twisted Pair – 1 set of outputs – Signal loop-through

Highlights

• Power Remote Senders and Receivers from Convenient Location
• 24 Vdc Power Input on dc Power Jack or Detachable Terminal Block
• Blue Power LED Shows Module is Receiving Power
• Green LED Indicates Correct dc Output Voltage on RJ45s
• Two Associated RJ45 Jacks Provide Power Output
• Receiver May Be Powered From One RJ45 Jack
• Sender May Be Powered From One RJ45 Jack


TX-TP4PW

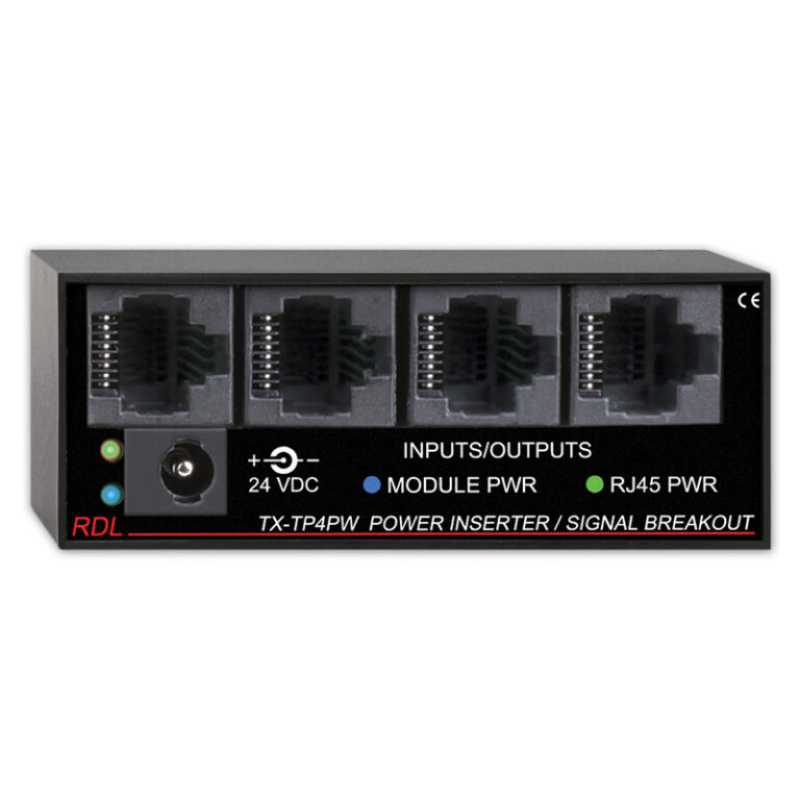

Power Inserter / Signal Breakout

Highlights

• Power Remote Senders and Receivers from Convenient Location
• 24 Vdc Power Input on dc Power Jack
• Blue Power LED Shows Module is Receiving Power
• Green LED Indicates Correct dc Output Voltage on RJ45s
• Four Associated RJ45 Jacks Provide Power Output
• Pairs A, B and C are Connected Between all Four RJ45 Connectors
• Power up to Three High-Current Format-A Receivers

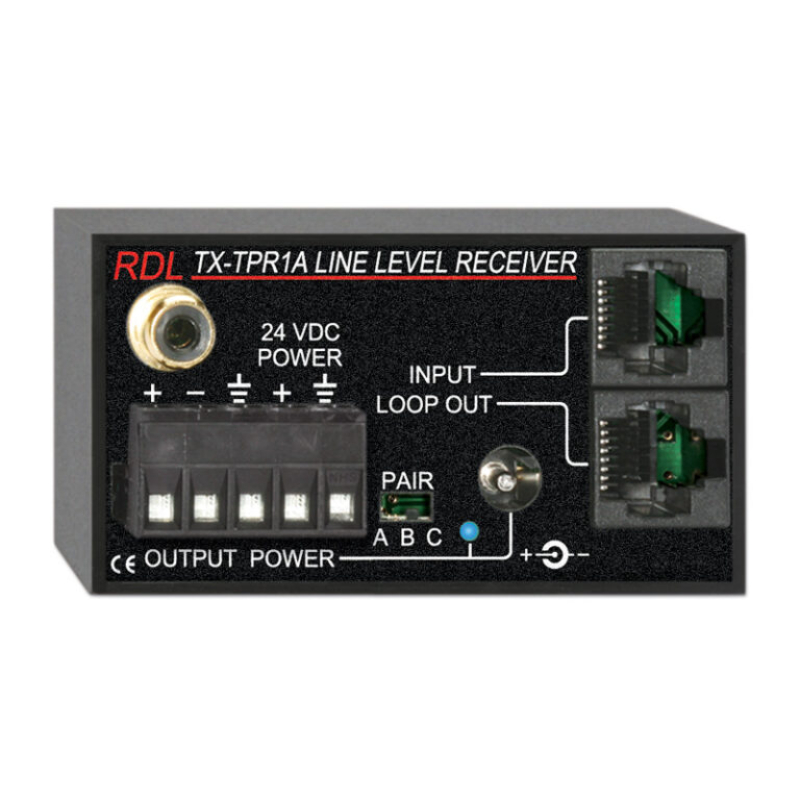

TX-TPR1A

Active Single-Pair Receiver – Twisted Pair Format-A – Balanced line output

Highlights

• Single -10 dBV Unbalanced or +4 dBu Balanced Output
• Phono Jack and Detachable Terminal Block Outputs
• Switch Selects which Pair (A, B or C) Feeds the Output
• Signal and Power Pair Pass-Through to LOOP OUT Jack
• Powered Locally or Remotely through RJ45 Jack
• Fused Local Power Feeds all Modules Connected to RJ45s
• Local Power Input on Terminal Block or dc Power Jack
• Blue LED Indicates Module is Powered
• Daisy-Chain with Additional Format-A Receivers
• Studio-Quality Precision Active Balanced Circuitry

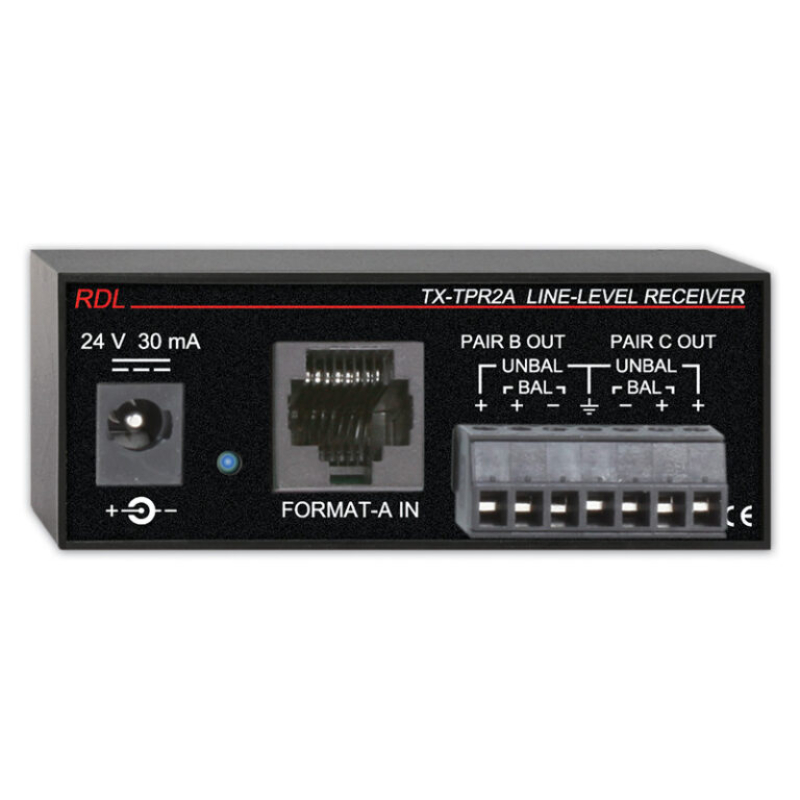

TX-TPR2A

Active Two-Pair Receiver – Twisted Pair Format-A

Highlights

• Two -10 dBV Unbalanced or +4 dBu Balanced Outputs
• Detachable Terminal Block Outputs
• Audio Outputs for Two Pairs (B and C)
• Powered Locally or Remotely through RJ45 Jack
• Local Power Feeds all Modules Connected to RJ45
• Wiring Fault Protection by Automatic Resetting Fuse
• Local Power Input on dc Power Jack
• Blue LED Indicates Module is Powered
• Studio-Quality Precision Active Balanced Circuitry


TX-TPR3A

Active Three-Pair Receiver – Twisted Pair Format-A – Balanced line outputs

Highlights

• Three -10 dBV Unbalanced or +4 dBu Balanced Outputs
• Phono Jack and Detachable Terminal Block Outputs
• Audio Outputs for All Three Pairs (A, B and C)
• Utilizes All Three Format-A Pairs
• Powered Locally or Remotely through RJ45 Jack
• Local Power Feeds all Modules Connected to INPUT
• Wiring Fault Protection by Automatic Resetting Fuse
• Local Power Input on Terminal Block or dc Power Jack
• Blue LED Indicates Module is Powered
• Studio-Quality Precision Active Balanced Circuitry


TX-TPR6A

Passive Single-Pair Receiver – Twisted Pair Format-A – Balanced audio line output

Highlights

• Single Unbalanced or Balanced 10 kΩ Audio Output
• Output on Detachable Terminal Block or Phono Jack
• +4 dBu Balanced Output; -10 dBV Unbalanced Output
• Switch Selects which Pair (A, B or C) feeds the Output
• Signal and Power Pair Pass-Through to LOOP OUT Jack
• Passive Circuitry Does Not Require Power
• Galvanic Isolation Provided for Both Outputs
• Daisy-Chain with Additional Format-A Receivers


TX-TPS1A

Active Single-Pair Sender – Twisted Pair Format-A – Balanced line input

Highlights

• Single -10 dBV Unbalanced or +4 dBu Balanced Input
• Phono Jack and Detachable Terminal Block Inputs
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through from LOOP IN Jack
• Powered Locally or Remotely through RJ45 Jack
• Fused Local Power Feeds all Modules Connected to RJ45s
• Local Power Input on Terminal Block or dc Power Jack
• Blue LED Indicates Module is Powered
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders
• Studio-Quality Precision Active Balanced Circuitry


TX-TPS3A

Active Three-Pair Sender – Twisted Pair Format-A – Balanced line inputs

Highlights

• Three -10 dBV Unbalanced or +4 dBu Balanced Inputs
• Phono Jack and Detachable Terminal Block Inputs
• Audio Inputs to Feed Pairs A, B and C
• Utilizes All Three Format-A Pairs
• Powered Locally or Remotely through RJ45 Jack
• Local Power Feeds all Modules Connected to OUTPUT
• Wiring Fault Protection by Automatic Resetting Fuse
• Local Power Input on Terminal Block or dc Power Jack
• Blue LED Indicates Module is Powered
• Studio-Quality Precision Active Balanced Circuitry


TX-TPS6A

Passive Single-Pair Sender – Twisted Pair Format-A – Balanced audio line input

Highlights

• Single +4 dBu Low-Impedance Balanced Audio Input
• Input on Detachable Terminal Block
• Switch Selects which RJ45 Pair (A, B or C) is Fed
• Signal and Power Pair Pass-Through from LOOP IN Jack
• Passive Circuitry Does Not Require Power
• Galvanic Isolation through a Studio-Quality Transformer
• Daisy-Chain with Single-Pair or Two-Pair Format-A Senders


TX-TPSA1A

Three-Pair Combiner to Single-Pair Sender

Highlights

• Three-Pair Receiver
• Isolated Active Mixing of the Audio Sources on Format-A Pairs A, B and C
• The Summed Output Drives One Pair of the Cable Connected to the OUTPUT Jack
• Selector Switch Sets the RJ45 Output Pair A, B or C that is Driven
• Two Audio Pairs and the Power Pair Pass Through to OUTPUT from LOOP IN Jack
• Local Power Feeds Modules Connected to RJ45 Jacks
• Daisy-Chain with Additional Format-A Senders
• Studio-Quality Precision Active Balanced Circuitry


TX-VCR

Video Controlled Relay – BNC

Highlights

• Detect Video Presence
• Detect Loss of Video
• Bridging or Terminated Operation
• Detection of NTSC or PAL Signals
• Dry-Contact Outputs
• Operation from AC or DC Power


TX-VLA1

Video Line Amplifier – Adjustable Gain & EQ

Highlights

• Boost Video Levels
• Adjustable Video Level
• Adjustable Equalization
• Drive Long Video Lines
• Video Amplifier Powered from Available Voltage Sources
• High-Quality Video in Small Size
• NTSC or PAL
























Contact

Australia: sales@avw.com.au
Syd: 02 8213 0200  Mel: 03 8691 5210
Qld: 07 3607 3785 WA/SA/NT: 08 8120 3203
New Zealand: sales@avw.co.nz
Akl: 09 271 4000 Wel:  04 499 3888

Login | Create an Account
Make one in 30 seconds without any annoying questions!

© Copyright 2025 AVW Group | All prices are in NZD and are exclusive of GST
