Products from RDL, Powered by Dante

All products offered by Radio Design Labs, Inc. identified as “Made in U.S.A.” are manufactured at our facility located at 659 6th St., Prescott, Arizona, United States of America and comply with the “Buy American” provisions of section 1605 of the American Recovery and Reinvestment Act (ARRA) of 2009 requirements that substantial transformation has occurred in the U.S.A.

RDL’s Dante™-enabled products provide flexibility, economy and simplicity to Dante networked audio systems. The products interface standard microphone and line-level audio signals as well as the entire group of RDL FORMAT-A endpoints to a Dante audio network.

Dante is a complete, reliable solution for high-performance audio distribution over standard IP networks, supporting hundreds of simultaneous channels of uncompressed audio with ultra-low latency and sub-microsecond synchronization accuracy.
RDL’s FORMAT-A system is a proven industry-standard family of compatible products that send, receive and distribute audio over standard CATx cable and connectors. The integration of Dante audio networking with FORMAT-A endpoints provides several unique advantages:

* Locate each mic and line input or output endpoint exactly where it is needed
* Daisy chain multiple audio endpoints through a single CATx home run
* Simplify the installation and reduce equipment cost with FORMAT-A/Dante integration
*  The distance limitations of IP networks with FORMAT-A modules while using standard CATx cable and connectors
* Select from a comprehensive array of endpoints including amplifiers, headphone amplifiers, mic/line XLR and stereo audio wall plates

FORMAT-A products include a popular array of more than 60 standard and customizable Decora-style, rack-mount and utility-mount endpoints and user interfaces.
Other Dante-enabled products interface any OEM product or jack plate, and RDL and OEM power amplifiers and mixers to a Dante network. All of the products are available in PoE (Power over Ethernet) and non-PoE models.




RDL- AV-LN4

The AV-LN4 is an interface that converts four line-level XLR inputs to Dante network audio channels. Special software is not required to configure the AV-LN4. A dual-LED VU meter displays the level for each. The AV-LN4 is a professional grade product for studio quality fidelity and low noise performance.

RDL - AV-NH1

The AV-NH1 is a headphone amplifier that converts two Dante network audio channels to a stereo headphone output with front-panel level adjustment.  The outputs connect through a stereo Mini-jack. Each channel provides 100 mW into 100 ohms for a network digital audio level of 0 dBFS.

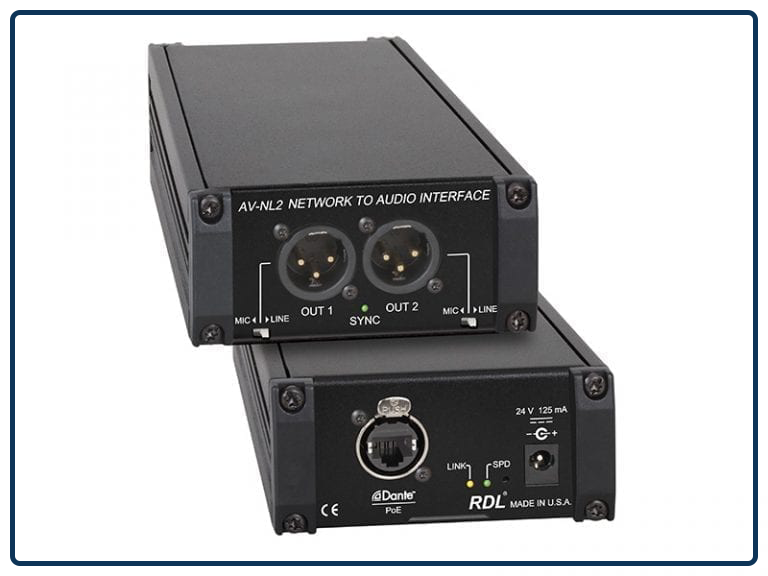

RDL - AV-NL2

The AV-NL2 is a line-level interface that converts two Dante network audio channels to two balanced audio outputs on XLR connectors. Each output is equipped with a selector to set the output to line level. The AV-NL2 is a professional grade product for studio-quality fidelity and low noise performance

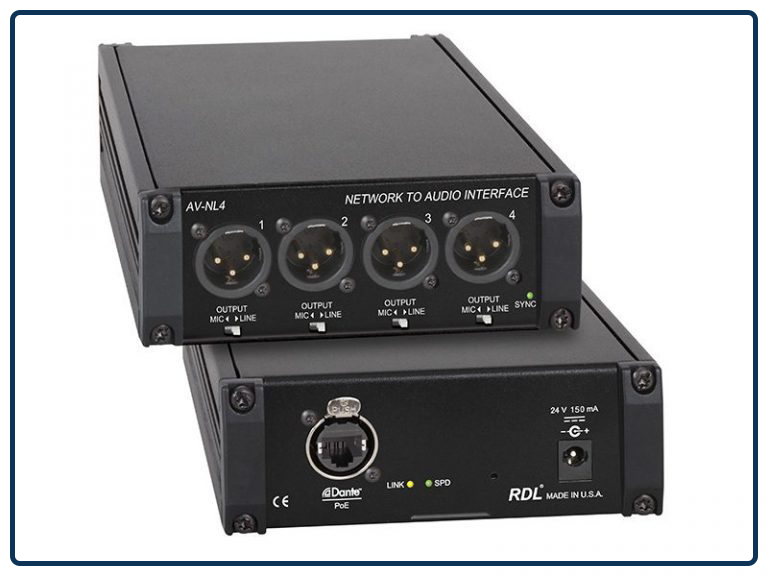

RDL - AV-NL2

The AV-NL4 is a line-level interface that converts 4 Dante network audio channels to 4 balanced audio outputs on XLR connectors. Each output is equipped with a selector to set the output to line level.

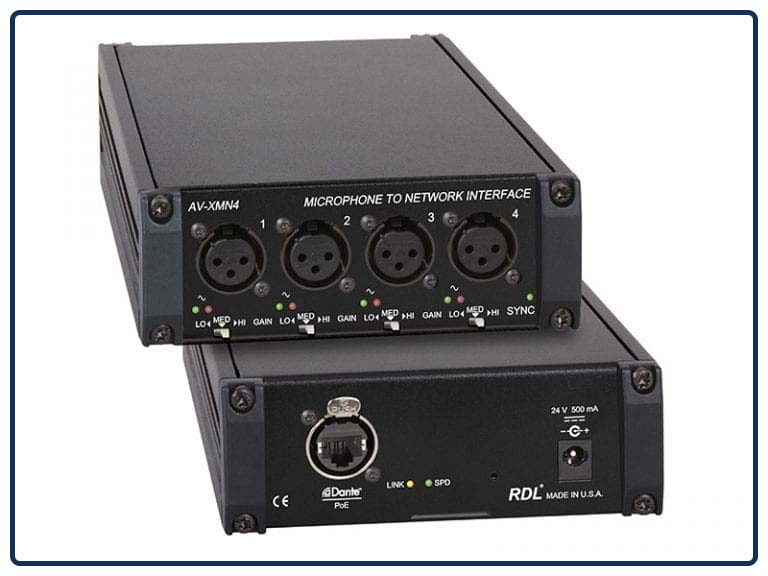

RDL - AV-XMN4

The AV-XMN4 is an interface that converts 4 XLR microphone inputs to Dante network audio channels. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones.

RDL - DD BN22

The DD-BN22 features two XLR mic and two XLR mic or line inputs  or line outputs on the front panels. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed

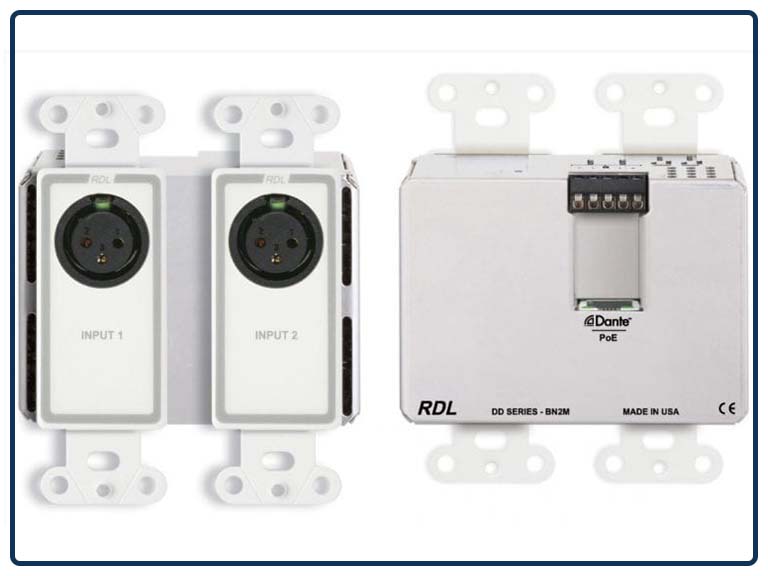

RDL - DD-BN2M

The DD-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block.

RDL - DDBN2ML

The DD-BN2ML is a complete wall-mounted Dante audio network interface, features one XLR mic or line input and one mono-summed Mini-jack line ip on the front panels, plus two line op on a rear-panel

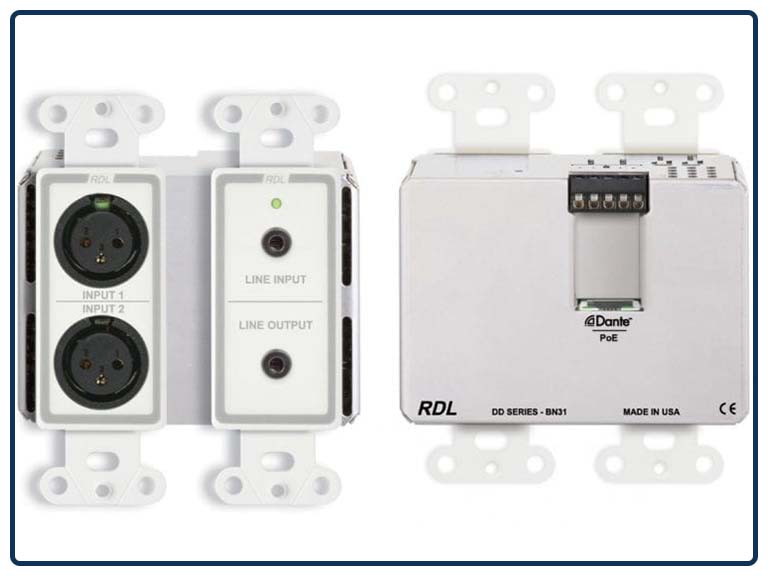

RDL - DD-BN31

The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels.

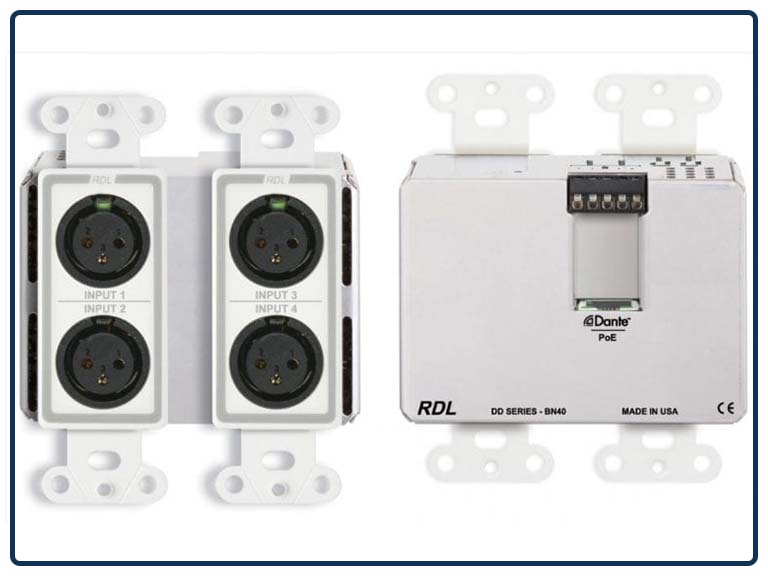

RDL - DD-BN40

The DD-BN40 is a complete wall-mounted Dante audio network interface. It features four XLR mic or line inputs on the front panels and two line outputs on a rear-panel detachable terminal block.

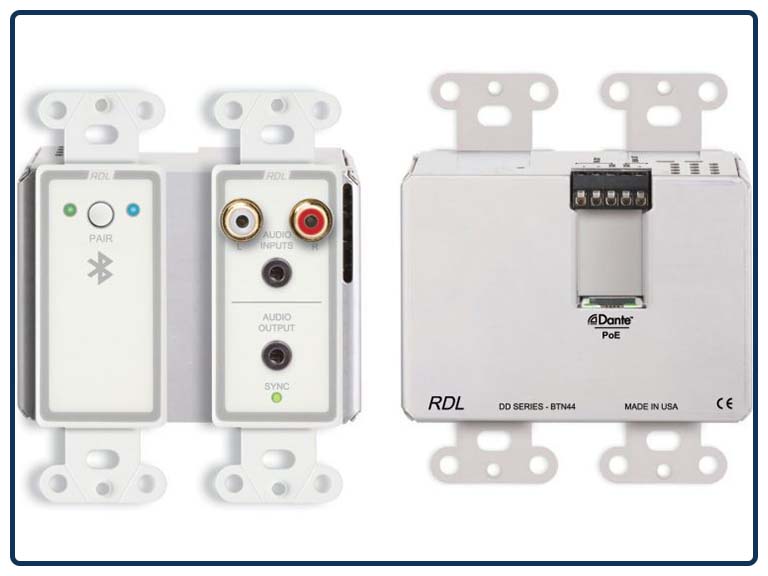

RDl - BTN44

The D SERIES-BTN44 modules are Dante networked, wall-mounted audio interfaces that include bidirectional Bluetooth audio, unbalanced analog stereo or mono audio inputs and outputs

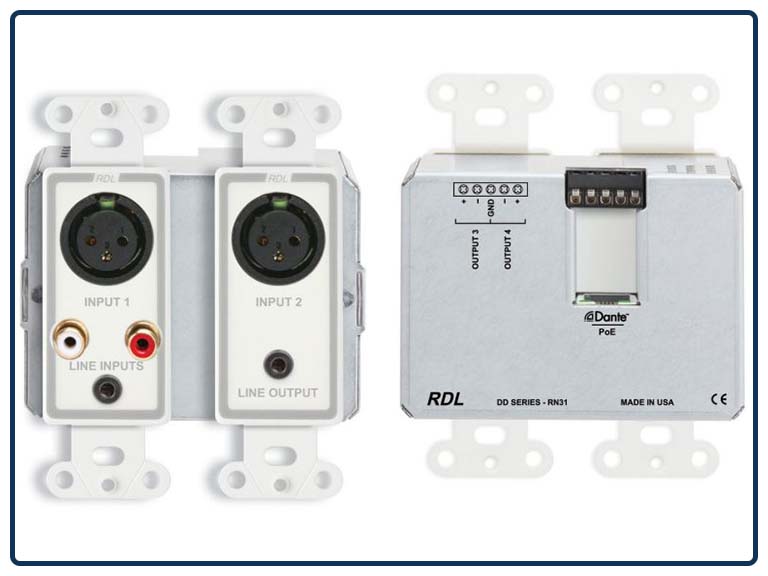

RDL - DD-RN31

The DD-RN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input, left and right RCA jack inputs and one stereo Mini-jack line…..

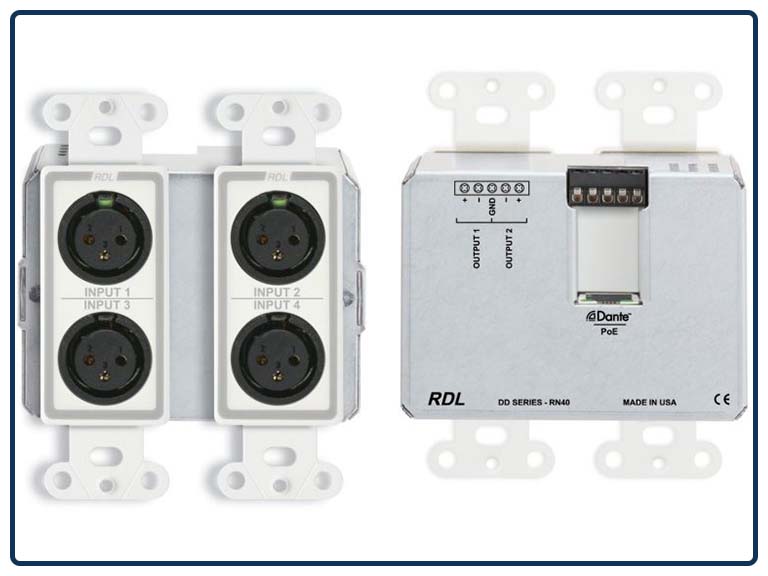

RDL - DDB-RN40

The DDB-RN40 is a complete wall-mounted Dante audio network interface. It features four XLR mic or line inputs on the front panels and two line outputs on a rear-panel detachable terminal block. The module is configured and adjusted using RDL CONSOLE or other network control software.

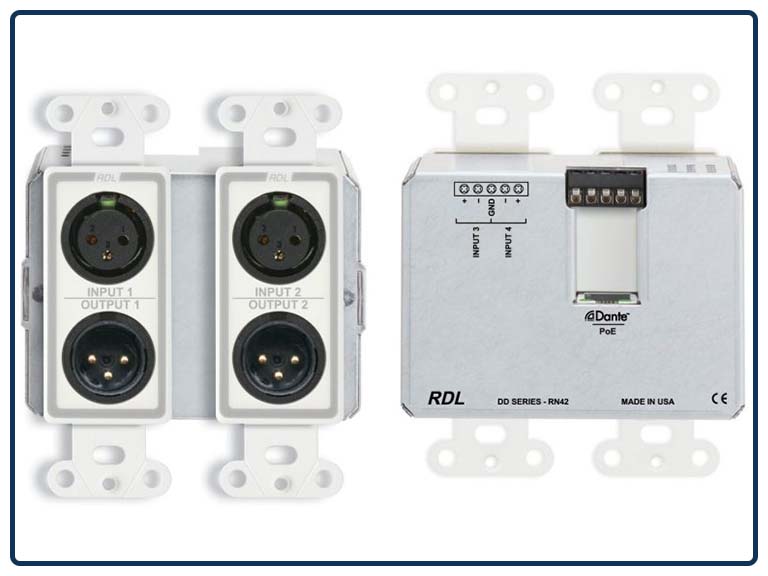

RDL - DD-RN42

The DD-RN42 is a complete wall-mounted Dante audio network interface. Features two XLR mic or line ip on the front panels, two balanced line ip on a rear-panel detachable terminal block and two balanced line op on front-panel XLR jacks. PoE powered in multiple finishes with optional customized graphics.

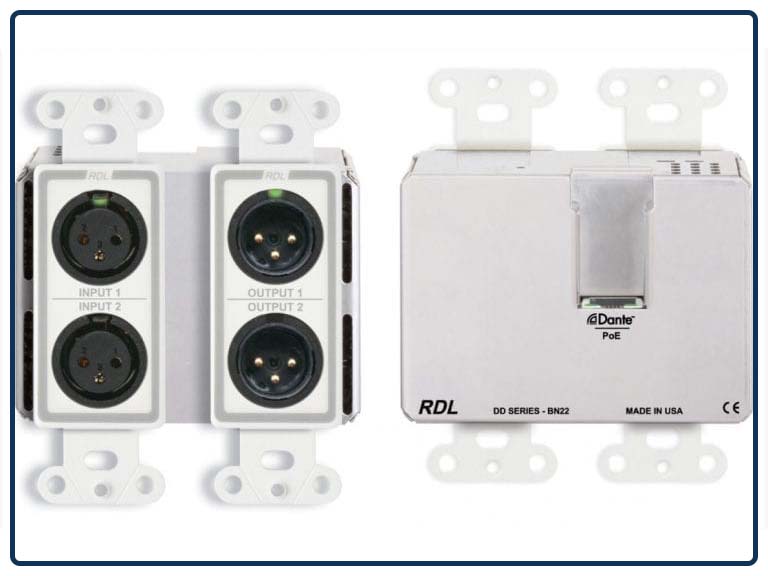

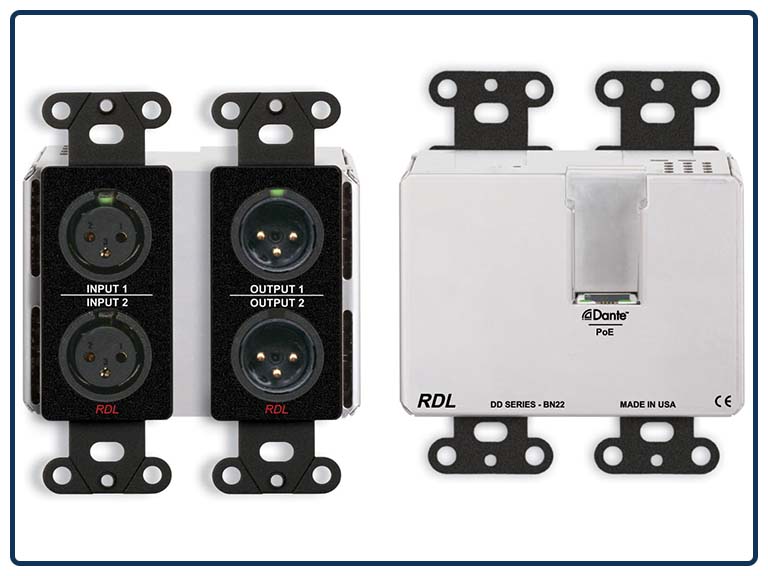

RDL - DD-BN22

The DD-BN22 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels.  is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance……

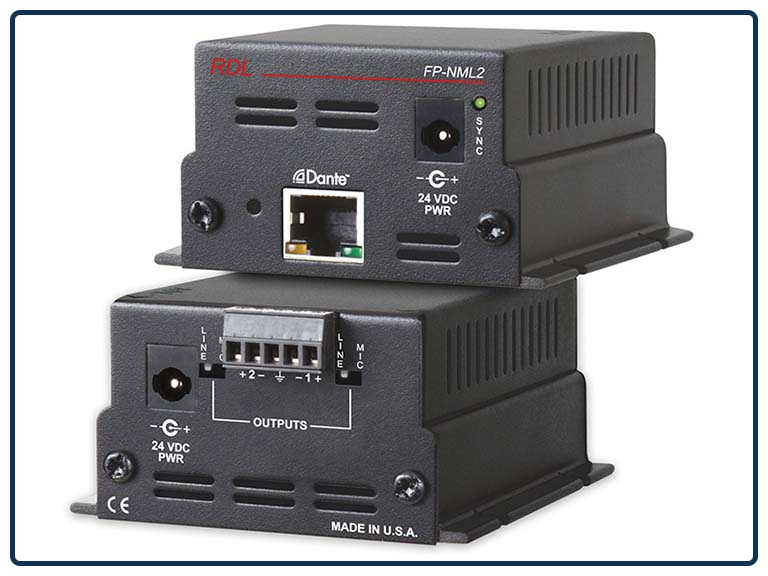

RDL - FP-NML2

The FP-NML2 network to mic/line interface is a high quality Dante network to mic/line interface that converts two Dante channels to two balanced outputs. Each output is individually switch-selectable to mic or line level. The FP-NML2 is ideal for adapting standard audio amplifiers or equipment to a Dante network. Model FP-NML2P operates from PoE.

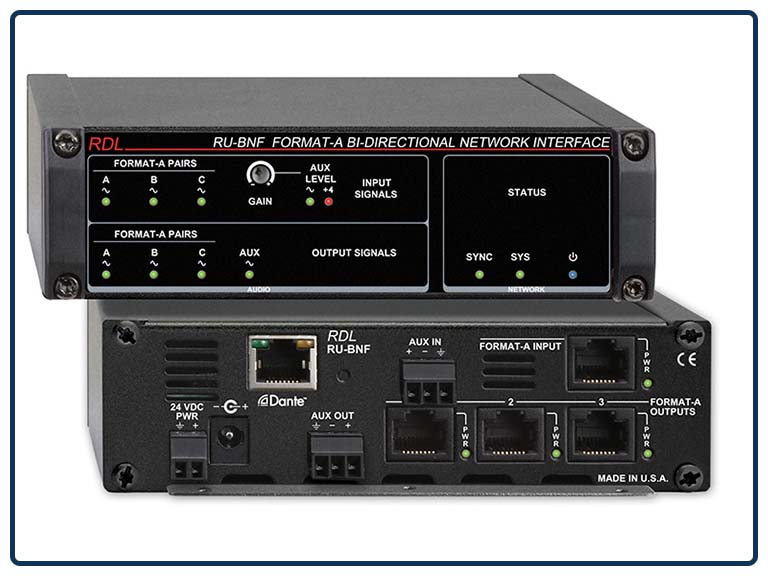

RDL - RU-BNF

The RU-BNF is a high quality bi-directional interface that converts three Dante channels to RDL Format-A and one Dante channel to balanced AUX output. It also converts three Format-A pairs and one AUX input to Dante channels. The RU-BNF is compatible with Format-A twisted-pair end-points. Model RU-BNFP operates from PoE.

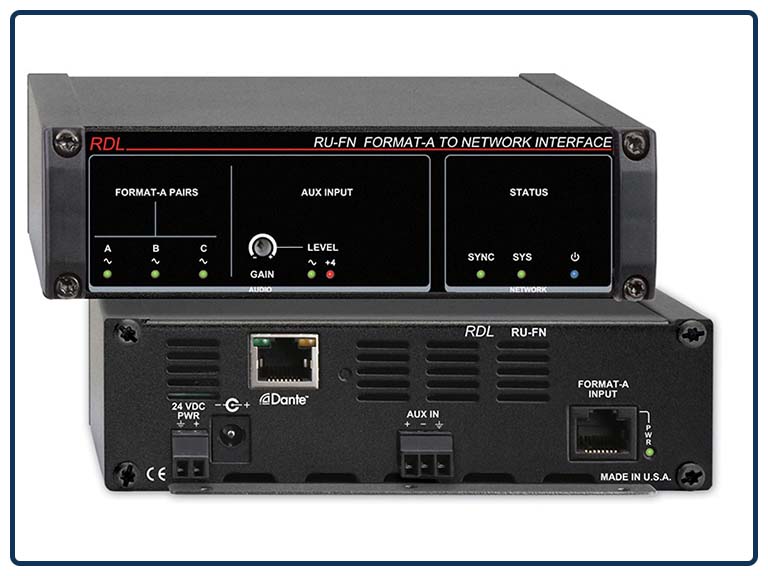

RDL - RU-FN

The RU-FN is a high quality Format-A to Dante network interface compatible with RDL Format-A twisted pair audio products. The RU-FN converts three Format-A audio pairs to Dante networked digital audio channels. The unit also converts a balanced or unbalanced line-level AUX input to Dante. Model RU-FNP operates from PoE.

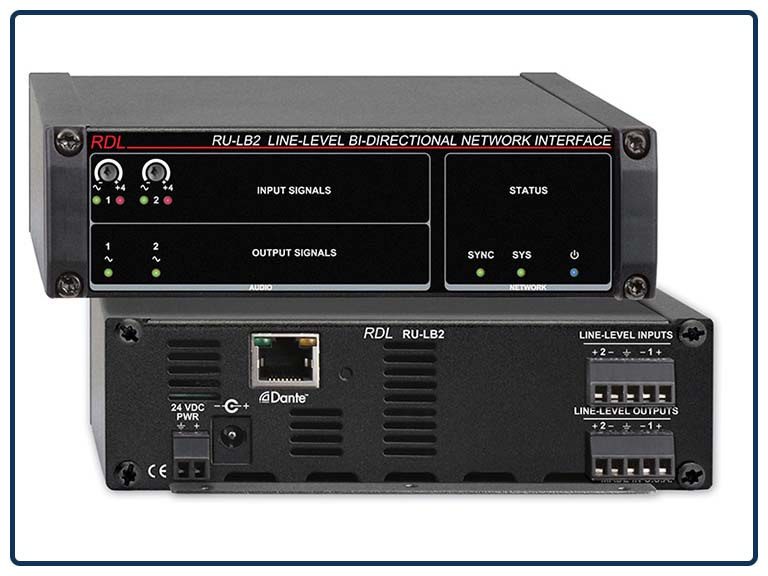

RDL - RU-LB2

The RU-LB2 is a high quality line-level bi-directional Dante network interface. The RU-LB2 converts two line-level audio sources to Dante network channels, and two Dante network audio channels to balanced line level. Input gain trimmers and LED audio level indicators are provided. Model RU-LB2P operates from PoE.

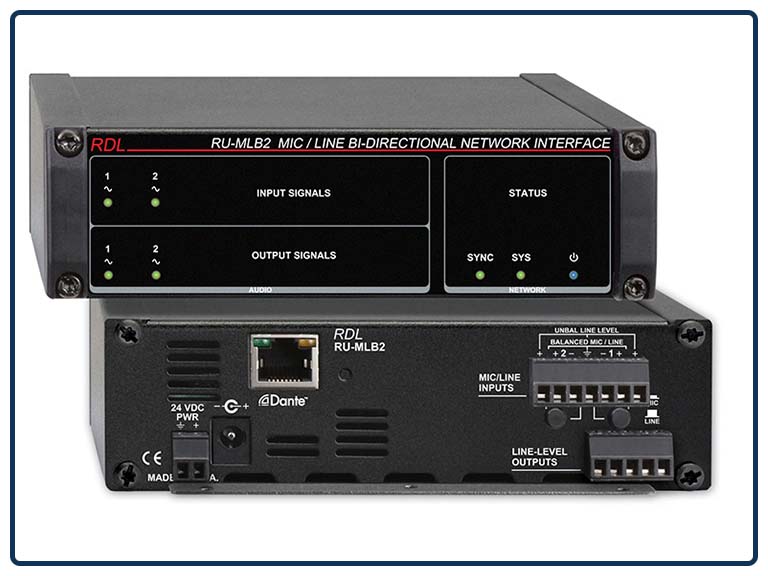

RDl - RU-MLB2

The RU-MLB2 is a high quality mic/line-level bi-directional Dante network interface. The RU-MLB2 converts two mic or line-level audio sources to Dante network channels, and two Dante network audio signals to balanced line level. LED audio signal indicators are provided. Model RU-MLB2P operates from PoE.

RDL - RU-MLB4

The RU-MLB4 is a high quality mic/line-level bi-directional Dante network interface. The RU-MLB4 converts four mic or line-level audio sources to Dante network channels, and four Dante network audio signals to balanced line level. LED audio signal indicators are provided. Model RU-MLB4P operates from PoE.

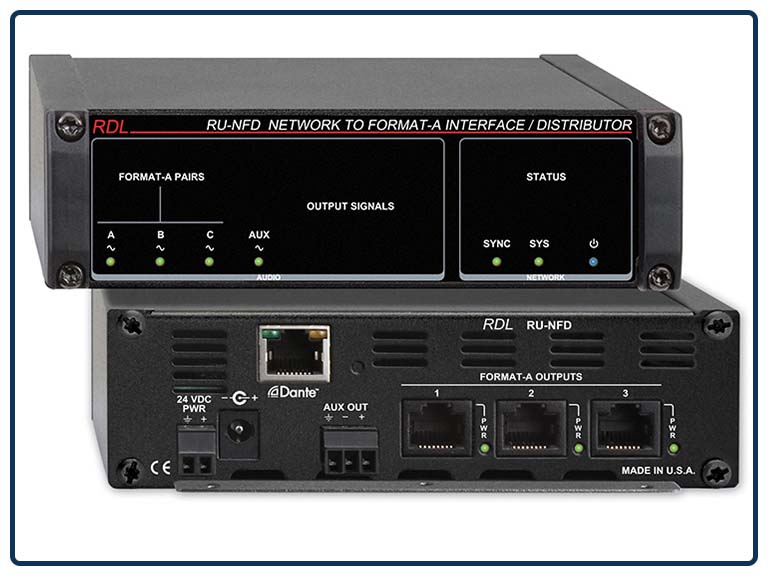

RDL - RU-NFD

The RU-NFD is a high quality Dante network to Format-A interface/distributor compatible with RDL Format-A twisted pair audio products. The RU-NFD converts three Dante network audio channels to RDL Format-A. The unit also converts a fourth Dante audio channel to a balanced line-level AUX output. Model RU-NFDP operates from PoE.

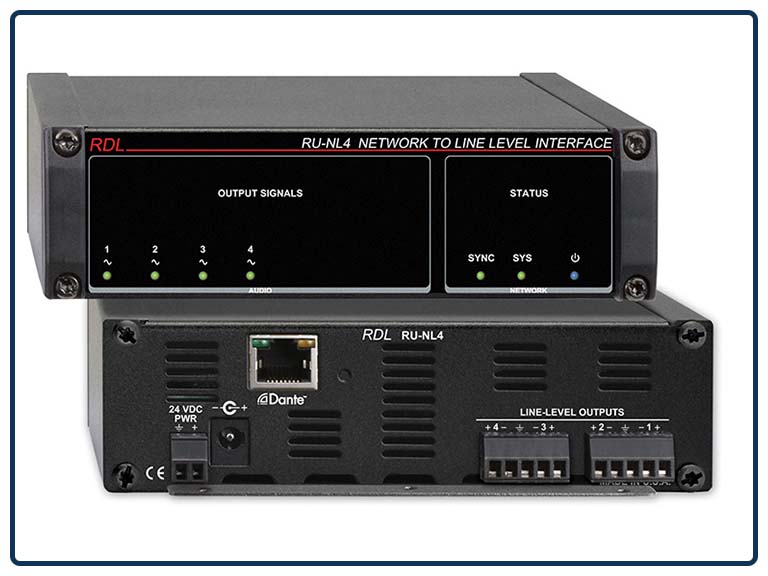

RDL - RU-NL4

The RU-NL4 is a high quality Dante network to line level interface. The RU-NL4 converts four Dante network audio channels to +4 dBu balanced line level that corresponds to a network digital audio level of -18 dBFS. LED audio signal indicators are provided. Model RU- NL4P operates from PoE.

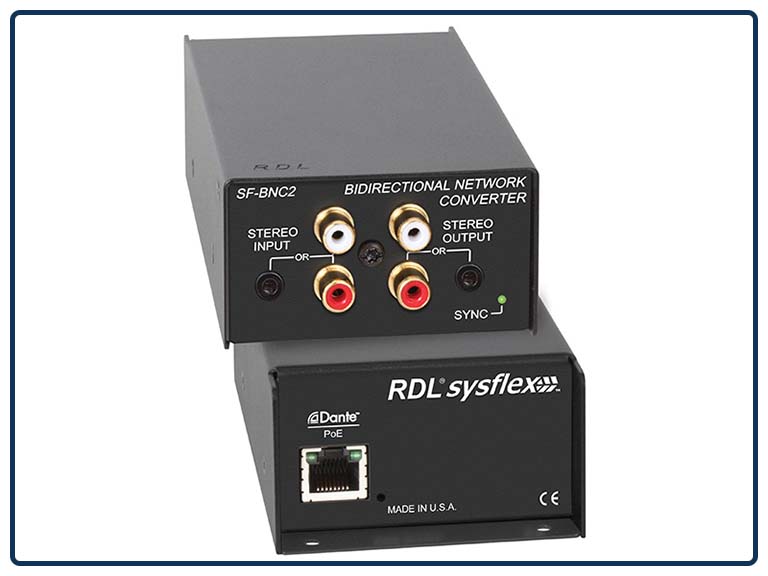

RDL - SF-BNC2

The SF-BNC2 is a bidirectional Dante audio network interface. It features two unbalanced audio inputs (left and right) on RCA or stereo 3.5 mm Mini-jack connectors, as well as two unbalanced audio outputs (left and right) on RCA and stereo 3.5 mm Mini-jack connectors. Operation from PoE Power
