FOX3 Expands with Field-Upgradable Frame and Hot-Swappable Modules

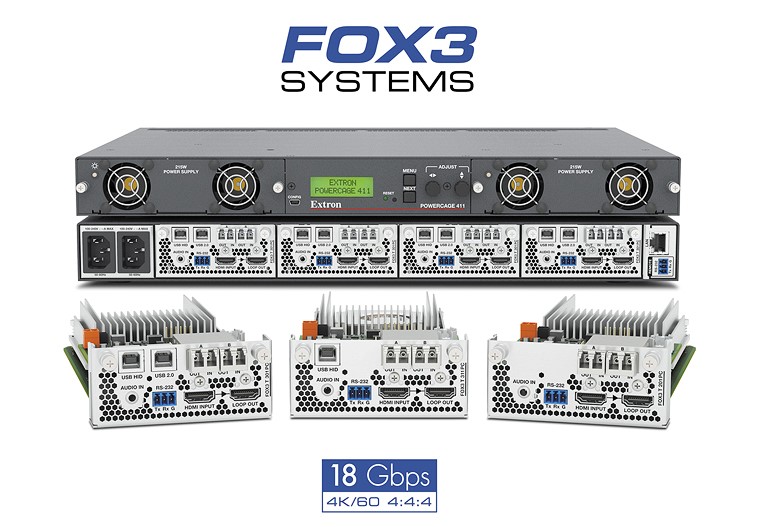

| We are pleased to introduce the PowerCage 411, a compact 1U rack-mountable, 4-slot enclosure that supports the FOX3 T 201 PC, FOX3 T 301 PC, and FOX3 T 311 PC fiber optic transmitters. The compact PowerCage® enclosure provides an efficient way to power, manage, and mount up to four extender modules to meet system needs, making it an ideal solution for larger systems that need to support remote devices. Exceptional thermal management, variable speed fans, and dual redundant hot-swappable power supplies ensure system reliability. The compact FOX3 Series extender modules all feature support for HDMI, audio, and control. The FOX3 301 PC and FOX3 311 PC also feature support for USB or USB HID, respectively. Engineered for exceptional high resolution image performance, these modules use Extron all-digital technology to deliver perfect pixel-for-pixel, uncompressed transmission of images up to 4K/60 @ 4:4:4 over two fibers or mathematically lossless 4K/60 video over one fiber. These features and capabilities make the PowerCage 411 enclosure and modular fiber optic extenders ideal for mission-critical environments where continuous, 24/7 operation is essential. |
| Key Features |
- Modular, field-upgradeable, and hot-swappable design
- Enables up to four extenders to be mounted in a single, 1U rack-mountable enclosure
- Dual redundant and hot-swappable power supplies
- Dual AC power connectors
- Supported HDMI 2.0 specification features include data rates up to 18 Gbps, Deep Color up to 12-bit, and 3D
- HDCP 2.3 compliant
- RS‑232 insertion for control of local or remote devices via the enclosure’s Ethernet port without needing additional cabling

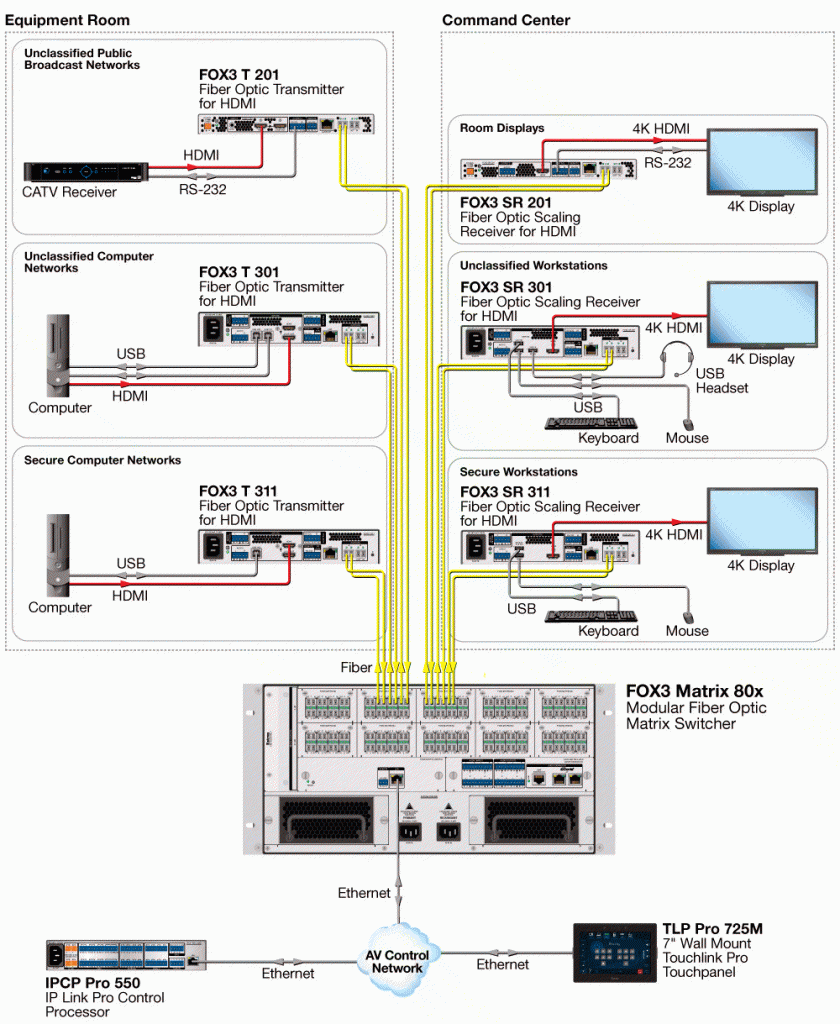

- Compatible with Extron FOX3 Series matrix switchers to create HDCP-compliant signal distribution systems
- JITC-Certified
- Compact FOX3 modules available to extend HDMI video, USB, USB HID, stereo audio, and RS‑232 control signals very long distances over fiber optic cabling
|
Click here for more information
