Extend the Reach of Your Quantum Ultra II Videowall System with New DTP3 Cards

Posted on 16 December 2025

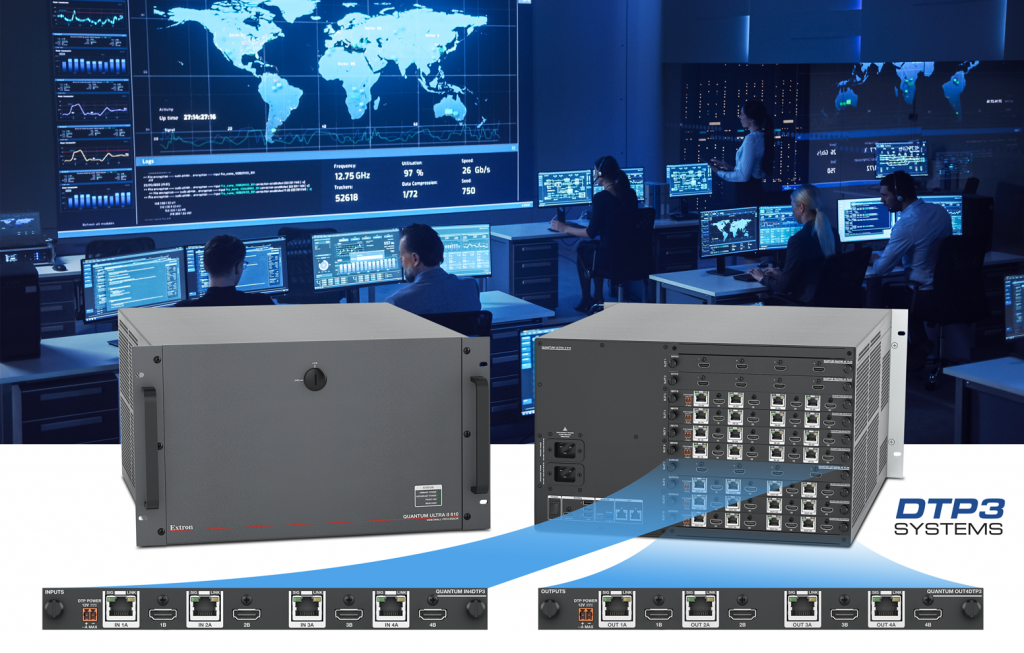

Quantum IN4DTP3 and Quantum OUT4DTP3

We are now shipping our new Quantum® DTP3 input and output cards for long-distance signal extension for videowall systems. The Quantum IN4DTP3 is a four-input card that eliminates the need for DTP3 receivers when source devices are located a long distance from the Quantum Ultra II processor. Each input on this card allows selection of either twisted pair or HDMI formats, and power insertion enables remote powering of DTP3 or DTP® transmitters.

The Quantum OUT4DTP3 card has four DTP3 outputs, eliminating the need for DTP3 transmitters when the displays are located a long distance from the processor. Each DTP3 output features a corresponding buffered HDMI output and power insertion to remotely power DTP3 or DTP receivers. Both cards support signals up to 4K/60 at distances up to 330’ (100 m). Configured with Quantum DTP3 input and/or output cards, Quantum Ultra II videowall processors simplify signal extension for your large venue projects and mission-critical environments.

Key Features

• Compatible with DTP3 and DTP extension products for integration of video and audio twisted pair distribution within a DTP3 system architecture
• Supports 4K/60 signals on a single channel for easy source integration and increased I/O capabilities that reduce system complexity and cost
• Power insertion for DTP3 or DTP endpoints
• Supports DTP3, DTP, and XTP® twisted pair formats
• Each input on the IN4DTP3 supports either twisted pair or HDMI signal formats
• Buffered HDMI outputs on the OUT4DTP3 facilitate driving a secondary set of local displays, audio de-embedding, streaming, or recording equipment
• Embedded audio support passes audio between input and output cards, or audio can be sent to a Dante network using a Quantum OUT32AT card
• RS-232 signals can be inserted from the Quantum Ultra II Ethernet control port, providing a simplified method to remotely control source devices

Learn More

The Quantum DTP3 input and output cards are now shipping.
