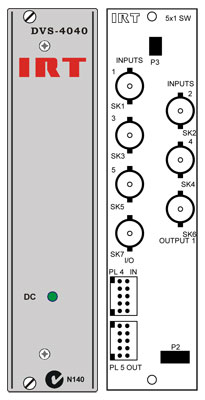

IRT, 5x1 Digital Video Switcher

DVS-4040

P.O.A

* Ex GST. Check with us for the latest pricing

- 5 x 1 270 Mb/s SDI or ASI.
- Input equalisation to 200 metres.
- Automatic muting of inputs with no signal.
- May be cascaded to 20 x 1.
- Local or remote control options.
- Universal wire per crosspoint or binary coded remote control.
- Optional plug-in SNMP monitoring and control module.
- Compatible with other 3000 & 4000 series digital & analogue switchers.

The DVS-4040 digital video switcher is part of a family of "smart" switchers in Eurocard format that may be linked and configured by the user to cover a wide range of switching and monitoring functions.

The DVS-4040 supersedes the DVS-3041 and provides all of its predecessor's functions together with the added option of a plug-in Simple Network Management Protocol (SNMP) monitoring and control module for use with IRT's SNMP system frame.

On board configuration is possible to allow up to four switchers to be joined for up to 20 x 1 operation.

The switcher may be slaved to operate in conjunction with similar switchers for analogue & digital video, audio and RS422 or similar control signals.

This makes the switchers ideally suited to situations where a mixture of analogue and digital signals are present.

The CPS-3050 local control switch panel kit converts the switcher for stand-alone operation.

The CPS-9001 provides a 5-button remote control in a panel the same size as the CPS-3050.

The CPS-1050 and 1052 1RU remote control panels allow formation of 10 x 1, 15 x 1 or 20 x 1 combinations.

All panels have tally LED's and switch label inserts. Multiple panels may be used with tally to each panel.

The DVS-4040 is designed to fit IRT's standard Eurocard frames as well as IRT's 4000 series frame for use with IRT's SNMP system and may be used alongside any other of IRT's analogue or digital Eurocards.
