Lilliput 15.6 inch touch screen monitor

TK1560/T

$1,103.00

* Ex GST. Check with us for Discounts and the latest Trade pricing!

Upgrade your visual experience with the TK1560/T, a cutting-edge 15.6" HDMI monitor that surpasses its predecessor, the Lilliput TK1330. Boasting a capacitive 10-point touchscreen and an impressive 1000cd/m² brightness rating, this monitor sets new standards. Its robust metal frame and IP64 rating make it an ideal choice for outdoor use or in industrial settings.

This monitor isn't just about visuals; it's your go-to solution for teleprompter applications. The TK1560/T features X/Y Flip and Mirroring capabilities, ensuring optimal functionality for your specific needs.

Designed with both form and function in mind, the TK1560/T comes in a neat, compact design with a two-box structure. The smaller box at the back houses the electronics and system controls, while the larger front area accommodates the main panel. Additionally, an ambient light sensor enables automated dimming to match the surrounding environment's brightness.

Beyond standard video inputs, our engineers have integrated customizable expansion ports on the main board, catering to individual connection requirements. The monitor's exterior is also customizable with a metal covering, allowing you to modify it to your liking. The built-in cable clamp ensures secure cable management, making the TK1330 reliable in high-vibration environments or scenarios prone to "cable-jerk."

Explore endless possibilities with customization options available for all Lilliput products. From personalized logos to input types, bezel designs, and mounting options, we offer flexibility to meet your unique requirements. Elevate your visual solutions by calling AVW to discuss how the TK1560/T can be tailored to your specific needs.

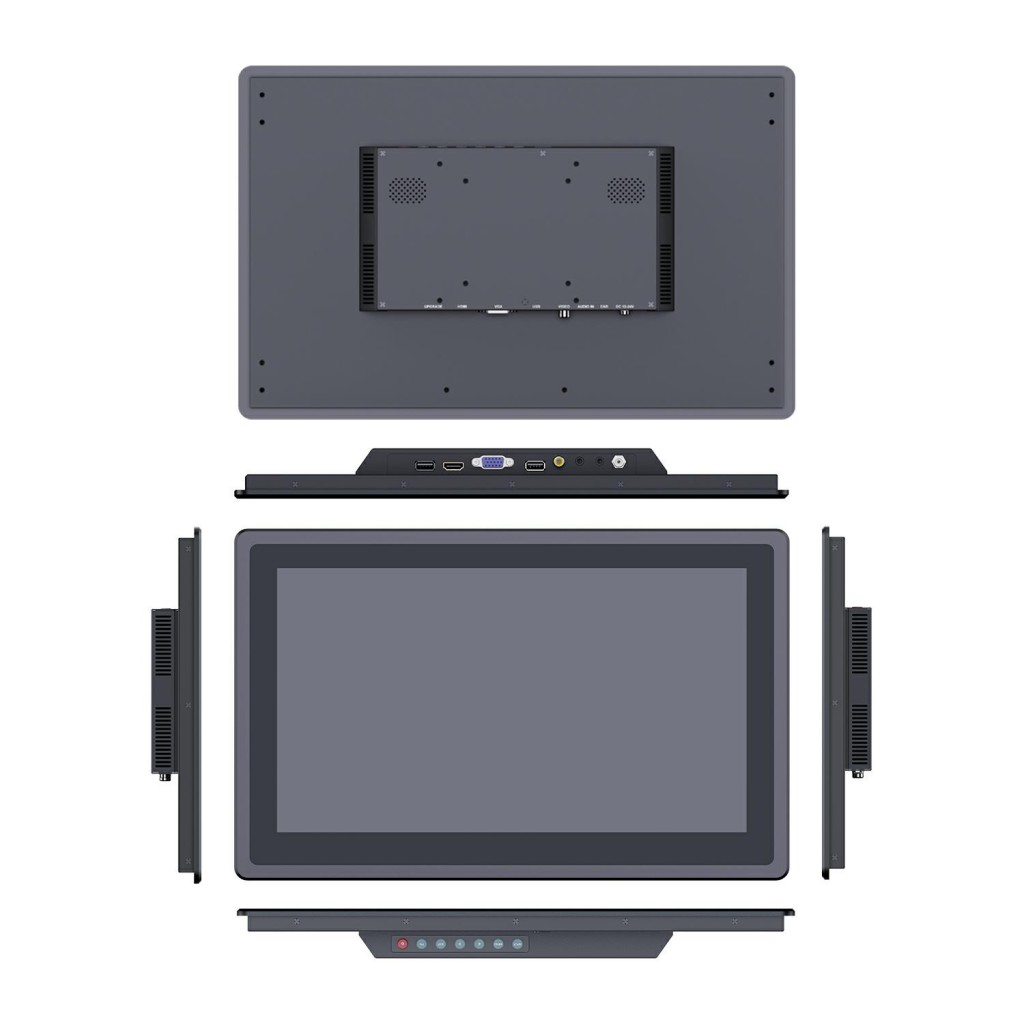

 Lilliput monitor is a 15.6" HDMI monitor for TeleprompterTeleprompter Lilliput Monitor 2
In addition to the standard video inputs, our engineers have reserved several expansion ports on the main board that can be customized to a customer's connection requirements.  Further, a customisable metal covering means that the exterior of the monitor can be modified to suit.

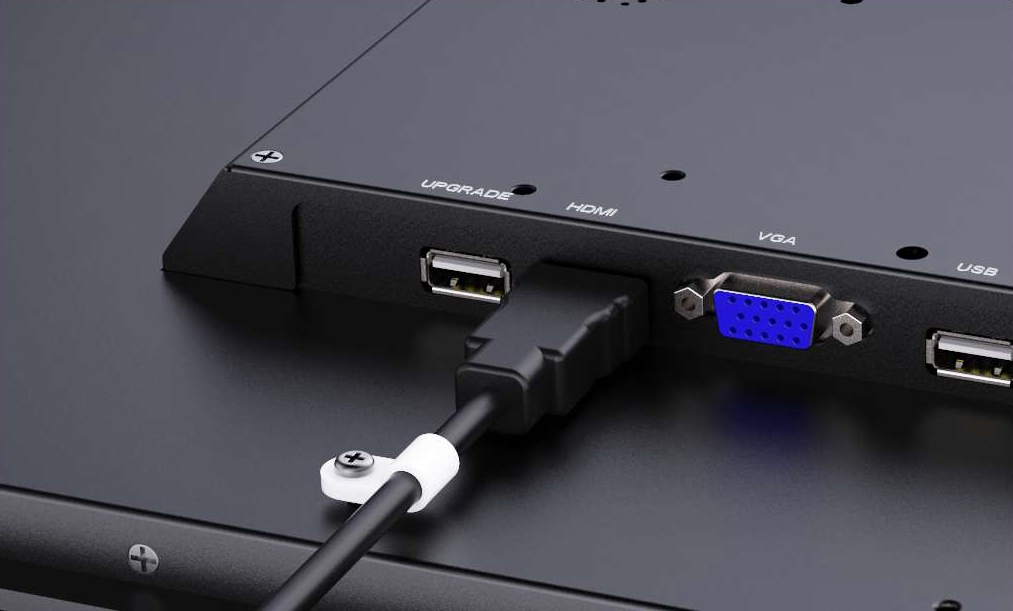

Teleprompter Lilliput Monitor 3

A built-in cable clamp will secure any cables you plug into the monitor onto the housing. This means that in high-vibration environments or with usage scenarios where "cable-jerk" may become an issue, the TK1330 has a secure option available.

Display
Brightness1000 cdm²
Contrast Ratio1000:1
Resolution1920 x 1080
Touch Panel10 Point Capacitive Touch
Viewing Angle160° / 160°
Screen Size15.6" LCD
HDMI Video Input
Formats2160p 24 / 25 / 30, 1080p 24/25/30/50/60, 1080i50/60, 720p 50/60
Connections
HDMI Video Input1x HDMI 1.4b
VGA Video Input1x VGA
A/V Input1x A/V Input
Monitor Specification
Audio OutputsHDMI - 2 Channel, Speakers - 2, Ear Jack - 3.5mm - 2ch 48KHz 24-Bit
Size
Dimensions408mm x 259mm x 36.5mm // VESA Mount Hole Set 75mm + 100mm
Weight2900
Power
Input VoltageDC 12-24V
Power Consumption<= 24.5W (15V)
Environment
IP RatingIP64 Front Panel
Operating Temperature-20°c to 60°c
Storage Temperature-30°C~70°C
