1.Terracom Terra-EX: IP Audio Decoder

TERRA-EX

$394.00

* Ex GST. Check with us for the latest pricing

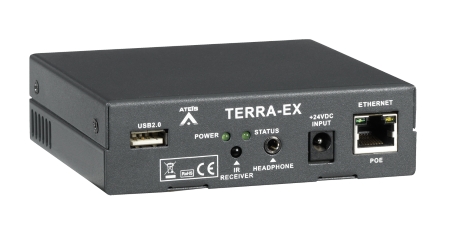

Terra-EX: IP Audio Decoder

TERRA-EX is an IP audio decoder with an optional USB flash memory interface for playlist backup or prerecorded announcement. Since the output device is the most price sensitive part of an IP audio system, ATEIS has proposed the best cost effective output device with 2 balanced outputs, a scheduler and POE.

The TERRA-EX will be your ideal IP solution for any applications where you need a simple balanced audio output with some I/O contacts & relays.

Thanks to its price, the USB backup, the scheduler and the advertising management, the TERRA-EX is also the perfect solution for in store applications. The volume and the channel can be modified locally with an IR remote control.

Features:
  • 2 balanced independent lines outputs
  • 1 headphone output on mini-jack.
  • Audio outputs: maximum level + 5 dB, bandwidth 20 Hz - 20 kHz
  • Ethernet interface including POE (Power over Ethernet).
  • 24 VDC power supply (if no POE available).
  • G.711, G.722, MP3 audio decoding.
  • 1 optional USB port for USB memory stick
  • 1 IR receiver - optional
  • 3 contact inputs
  • 1 relay output
  • 1 RS 232 on Euro Block
  • Power consumption: 2 w
  • Weight: 433 g
  • Dimensions (mm): Depth 104, Height 32, and Width 109.

Refer to the wider TERRA range for audio encoders, audio decoders, audio over IP and IP audio systems

View the Terra-EX Datasheet here.
