Lilliput TK2700/T 27Inch Touchscreen Display
TK2700/T
CALL
* Ex GST... Call us for Discounts and the latest Trade pricing!
Lilliput TK2700/T(Touchscreen) TK2700/C (Non-touch)

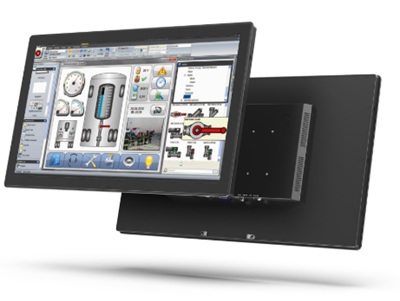

This 27-inch metal monitor comes with a 10-point capacitive touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, USB-C, etc. It features anti-glare, anti-fingerprint, and UV resistance for clear outdoor viewing. It supports glove touch, has an IP65/NEMA 4 front panel, 7H hardness, and IK07 impact resistance. Horizontal and vertical installation are both supported for flexible use.
Features:
Download Product Datasheet
This 27-inch metal monitor comes with a 10-point capacitive touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, USB-C, etc. It features anti-glare, anti-fingerprint, and UV resistance for clear outdoor viewing. It supports glove touch, has an IP65/NEMA 4 front panel, 7H hardness, and IK07 impact resistance. Horizontal and vertical installation are both supported for flexible use.
Features:
- MODEL NO: TK2700
- DISPLAY Touch Screen: 10-point PCAP
- Panel: 27” LCD
- Physical Resolution:1920×1080
- Aspect Ratio: 16:9
- Brightness: 1000 nits
- Contrast: 1000:1
- Viewing Angle: 178° / 178° (H/V)
- Coating UV-resistant, anti-glare, anti-fingerprint
- Hardness/Collision: Hardness≥7H(ASTM D3363), Collision ≥IK07 (IEC62262/EN62262)
- INPUT HDMI: 1x
- VGA: 1x
- Audio & Video: 1x
- USB-A: 2x (For touch and upgrade)
- SUPPORTED FORMATS:
- HDMI:2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
- VGA:1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- Audio & Video: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- AUDIO IN/OUT:Speaker 2x
- HDMI: 2ch
- Ear Jack: 3.5mm
- POWER Input Voltage: DC 12-24V
- Power Consumption: ≤41W (12V)
- ENVIRONMENT IP Rating: IP65 Front Panel, Front NEMA 4
- Vibration: 1.5Grms, 5~500Hz, 1 hr/axis (IEC6068-2-64)
- Shock: 10G, half-sine wave, last 11 ms(IEC6068-2-27)
- Operating Temperature: -10°C~50°C
- Storage Temperature: -20°C~60°C
- DIMENSION: Dimension(LWD) 658.4mm × 396.6mm × 51.8mm
- Weight: 9.5kg
Download Product Datasheet
