Terracom Terra-FDX: IP to Telecom Gateway

TERRA-FDX

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!

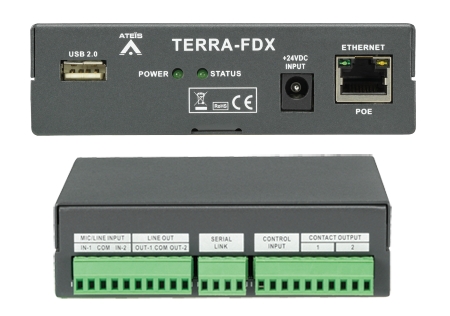

Terra-FDX: IP to Telecom Gateway

TERRA-FDX has been specially designed for paging and intercom systems, it offers the possibility to create bidirectional IP links for high audio quality and voice, contacts and serial data. The streaming can be full-duplex for PCM, G.711, G.722 and even mp3.

Features
  • 2 Mic/line balanced inputs.
  • 2 independent balanced outputs.
  • Audio inputs: maximum level + 5 dB, bandwidth 20 Hz - 20 kHz.
  • Audio outputs: maximum level + 5 dB, bandwidth 20 Hz - 20 kHz.
  • Ethernet interface including POE (Power Over Ethernet).
  • 24 VDC power supply (if no POE available).
  • G.711, G.722, MP3 audio encoding/decoding.
  • 1 USB port for USB memory stick.
  • Power & Status LED.
  • 3 contact inputs.
  • 2 relay outputs.
  • RS232 on Euro Block.
  • Power consumption 2,66 W.
  • Weight: 430 g.
  • Dimensions (mm): Depth 104, Height 32, Width 109.

Refer to the wider TERRA range for audio encoders, audio decoders, audio over IP and IP audio systems

View the Terra-FDX Datasheet here.
