RDL, Adjustable Gain Mic Preamp, 35-65 dB Gain

STM-2

$285.10

* Check with us for the latest pricing

  • Low-Noise Mic Preamp
  • Adjustable Output Level
  • High or Low Impedance Mic Inputs
  • Mic Input to 2 Line Outputs
  • Two Balanced or Unbalanced Outputs
  • Phantom Capability
  • RF-Filtered Inputs

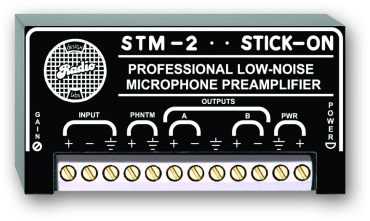

The STM-2 is a quality low-noise microphone preamplifier designed for use in commercial sound, broadcast, and recording. The STM-2 is very flexible, with gain adjustment from 35 to 65 dB, two balanced or unbalanced outputs, and available phantom supply input. Its ultra-low distortion and low noise performance make it the best choice, even when larger preamps could be used. The single-ended supply input range is from 24 to 33 Vdc. Operation from 12 Vdc is possible with a 6 dB reduction in headroom. Each output drives high or low impedance loads.

Download Product Datasheet
