ST-RG1

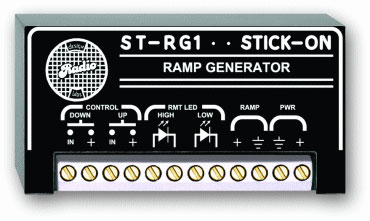

Ramp Generator – 0 to 10 Vdc Output

Ramp Generator with 0 to 10 Volt Output
Remote Control of ST-VCA3 modules
Multiple VCA Remote Control Points
Pushbutton Up / Down Ramp Control
Dual LED Outputs for Position Indication
Ramp Output Capable of Driving Six VCAs
Buffered, De-Bounced Switch Inputs

Description

The ST-RG1 is a digitally generated 0 to 10 volt Ramp Generator which provides the ideal interface for audio volume control from multiple points with the ST-VCA3. Any number of Up and Down buttons may be connected to the ST-RG1. Sufficient drive is provided from the ST-RG1 to control up to six ST-VCA3s.
Features include:

VCAs may be controlled from several locations with the optional D SERIES-RLC2 Remote Level Control. LED level indicator driver circuitry is included in the ST-RG1 for visual indication of relative level.

Specifications

Control Inputs: 1 to ramp up, 1 to ramp down
Input Logic: External closure pulls normally low input to +15 Vdc to activate UP or DOWN function
Indicator Outputs: 1 to drive red LED (partial to fully OFF)
1 to drive green LED (partial to fully ON)
LED Output Current: 0 to 3 mA (to drive low current, high intensity LEDs)
Ramp Output: 0 to 10 volts nominal, (typical < 0.1 V to > 9.8 V under ST-VCA3 load)
Minimum Step: 200 mV nominal
Ramp Time: 5 seconds nominal (fully off to fully on; or fully on to fully off)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 40 mA
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.155 lbs.
Shipping Weight: 0.21 lbs.

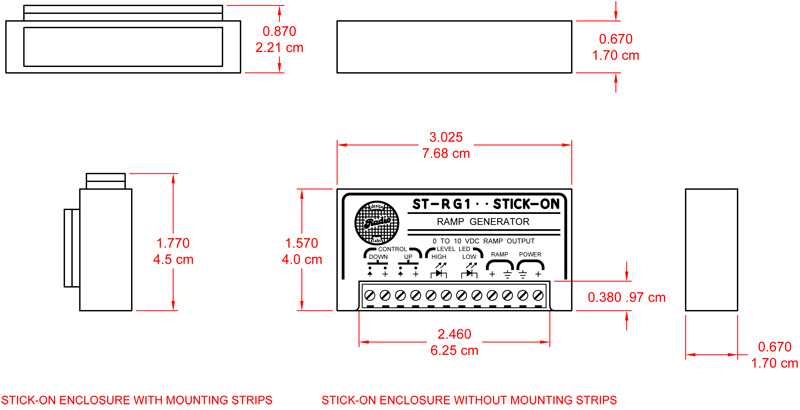

Package Dimensions: 2 x 2 x 4 in.
