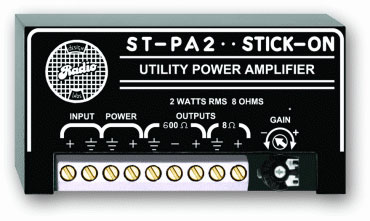

RDL, 2 W Utility Audio Amplifier, 8 & 600 Ohm

ST-PA2

$141.69

* Check with us for the latest pricing

- 2 Watts RMS into 8 Ohm
- +12 dBu Into 600 Ohm
- Quality Utility Amplifier
- Intercom Driver
- Music-On-Hold Driver

The ST-PA2 features a single, unbalanced audio input, a gain control, and two outputs. The first output is designed to deliver a clean 2 watts RMS into an 8 Ohm speaker. The second output is intended to drive 600 Ohm transformers, typically on equipment inputs. This makes the ST-PA2 uniquely suited to applications such as music-on-hold inputs on telephone systems which may have either 8 Ohm or 600 Ohm inputs. If desired, both outputs may be used at the same time.

Download Product Datasheet
