Muting Monitor Amplifier - 2 Watt

ST-MA2

$250.53

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-MA2

2 W Mono Audio Amplifier with Muting – 8 Ω

Single-Speaker Monitor Amplifier
Conferencing Monitor Amp
Monitor Amp with Muting and Externally Actuated Attenuation Steps
Fast, Silent Audio Switching
Multiple Control Inputs
Adjustable Gain

Description

The ST-MA2 is a compact audio monitor amplifier with control inputs to mute or reduce the gain of its output. This module may be used in conjunction with other RDL® modules to configure automatic mixing systems or may be used alone as a single-speaker monitor amplifier. The ST-MA2 is typically used to drive a small tabletop or overhead monitor speaker in a conference room, boardroom, courtroom, public forum panel or similar installation. The ST-MA2 is ideally suited for use in automatic mixing systems due to its control inputs.

The line-level input may be wired balanced or unbalanced. The audio output will drive standard speakers from 4 to 45 Ω. Normal gain is preset by means of a trimmer on the module.

For tabletop installations, use the ST-MA2 with the WDG1 and RU-SP1.

Specifications

Input Impedance: 20 kΩ Balanced or Unbalanced Bridging
Input Level: -10 dBV minimum for 2 Watts RMS output
Output Impedance: 8 Ω (will drive 4 Ω loads)
Output Power: 1.75 Watts RMS Continuous; 2 Watts RMS max.
THD+N: < 0.5%
Bandwidth: 45 Hz to 14 kHz
CMRR: > 60 dB (50 Hz to 120 Hz)
Residual Noise: < -80 dB (below 2 Watts RMS)
Switching Time: < 50 us
Attenuation (Muted): > 90 dB (1 kHz),
> 85 dB (300 Hz to 3 kHz)
> 75 dB (20 Hz to 20 kHz)
Selectable Attenuation: 3 dB or 6 dB, each setting individually selectable using two independent inputs (connect to ground to activate, 0.3 mA)
Ambient Operating Environment: 0° C to 40° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 200 mA for rated output (220 mA @ 2 Watts RMS)
Package Type: Cardboard Box
WEEE weight: 0.145 lbs.
Shipping Weight: 0.195 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.

Muting Monitor Amplifier - 2 Watt

ST-MA2

$250.53

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-MA2

2 W Mono Audio Amplifier with Muting – 8 Ω

Description

Specifications

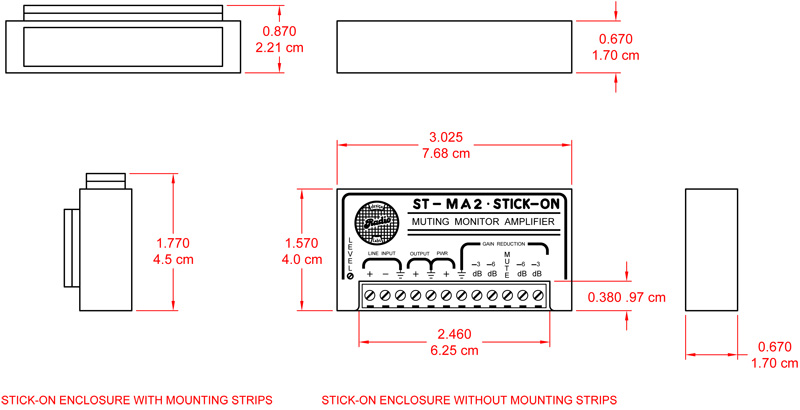

Dimensions
