ST-LCR1

Specifications

Dimensions: Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), D…
Control Inputs: SLAVE terminal used as an input from remote push-button or switch turns on relay when that switch is on. Activation is by connecting this input to Ground. Input from other equipment’s open-collector output turns relay on when open-collector is on.
Note: RDL switching STICK-ONs have open-collector outputs suitable for driving an ST-LCR1.
5V+ accepts 3.5 to 12 Vdc to turn on relay. Relay is on only when this control signal is applied.
24V+ accepts 12 to 35 Vdc to turn on relay. Relay is on only when this control signal is applied.
Control Output: SLAVE terminal open-collector @ 25 mA suitable to drive indicators or slave LCRs
Switching Contacts: Double-pole, double-throw
Maximum Switching Power: 60 W (220 Vdc, 125 Vac, 2 A)
Ambient Operating Environment: -10° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 50 mA *
* Assumes 20 mA max load at SLAVE output
Package Type: Cardboard Box
WEEE weight: 0.135 lbs.
Shipping Weight: 0.185 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.

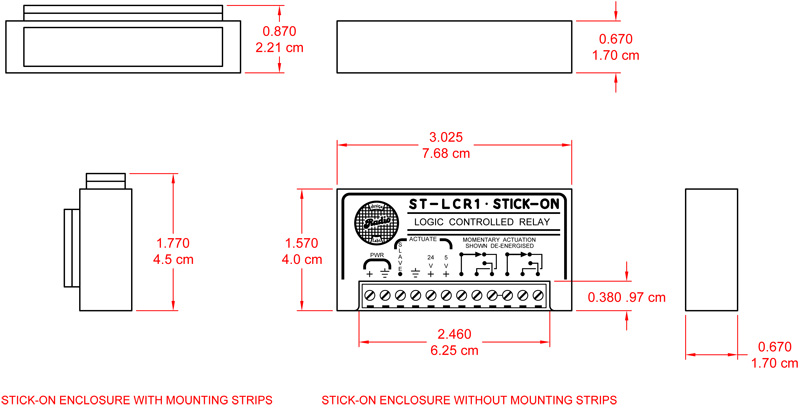

Dimensions
