RDL Network to Stereo Headphone Amplifier - Dante

SF-NH1

$1,128.89

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SF-NH1

Dante to Stereo Headphone Amplifier

Converts Two Dante Network Audio Signals to a Stereo Headphone
Output on Professional Quality 3.5 mm stereo Mini-Jack
Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Front-Panel Output Level Control
Special Software Not Required for Module Setup
Exceptional Low-Noise and Low-Distortion Performance
High Resolution 24 Bit Digital to Analog Conversion
Legendary RDL Analog Filtering Enhances Superb Audio Performance
LED Indicator for Valid Power and Network Sync
Operation from PoE Power (Class 0, IEEE 802.3af)
Equipped for SysFlex® Rack Mounting or Surface Mounting

Description

The SF-NH1 is a headphone amplifier that converts two Dante network audio channels to a stereo headphone output with front-panel level adjustment. The output connects through a stereo 3.5 mm Mini-jack. Each channel provides 100 mW into 100 ohms for a network digital audio level of 0 dBFS. Special software is not required to configure the module. The SF-NH1 is a professional grade product for studio quality fidelity and low noise performance.

The SF-NH1 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-NH1 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

Specifications

Network Connector: RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol: Dante
Transmission Rate: 100 Mbps
Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported: 24 bits
Reference Level: 0 dBFS = 150 mW into 100 Ω
Outputs (2): Mini-jack Stereo (L and R)
Output Level (maximum): 0 dBFS = 150 mW into 100 Ω
Output Impedance: < 50 Ω
Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
THD+N: < 0.05% (20 Hz to 20 kHz, -20 dBFS); 0.015% at 1 kHz (typ)
Noise: < -75 dB (below -20 dBFS); < -95 (below 0 dBFS)
Crosstalk: < -80 dB (1 kHz, -20 dBFS)
Headroom above -20 dBFS: 20 dB
Indicators (3): Ethernet Link and Speed (2, rear panel); Sync (front panel)
Ambient Operating Environment: 0° C to 50° C
Power Requirement: PoE Class 0, IEEE 802.3af
Specification Conditions: Gain/Level: ± 1 dB
Dimensions: 2.79″ (7.09 cm) W; 1.68″ (4.27 cm) H; 5.77″ (14.66 cm) D
Package Type: Cardboard Box
Package Dimensions: 7 x 4.375 x 2.25 in.
Shipping Weight: 1.09 lbs.
WEEE weight: 0.88 lbs.
Tariff code: 8543.70.9100

RDL Network to Stereo Headphone Amplifier - Dante

SF-NH1

$1,128.89

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SF-NH1

Dante to Stereo Headphone Amplifier

Description

Specifications

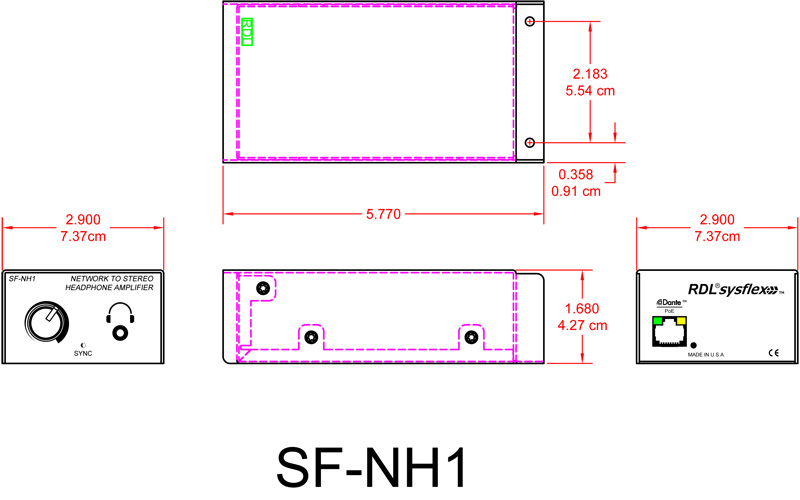

Dimensions
