RDL Digital Audio to Network Interface - Dante

SF-DN4

$1,518.30

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

SF-DN4

Digital Audio to Network Interface

Converts Two Left/Right Digital Audio Sources to Four Dante Network Audio Signals
AES/EBU or S/PDIF Coaxial or Optical Inputs
Supports Input Sampling Rates from 32 kHz to 192 kHz
Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Digital Signal Lock Indicator for Valid Inputs
Transformer-Isolated AES/EBU Input
Digital Audio Sources Remain in the Digital Domain through the Dante Network Output
Special Software Not Required for Module Setup
LED Indicator for Valid Power and Network Sync
Operation from PoE Power (Class 0, IEEE 802.3af)
Equipped for SysFlex® Rack Mounting or Surface Mounting

Description

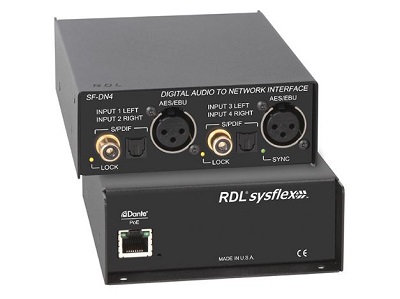

The SF-DN4 is a digital audio interface that converts two stereo digital audio sources to four Dante network audio channels. The SF-DN4 automatically detects a valid input on any of the three input jacks: S/PDIF optical, S/PDIF coaxial, or AES/EBU XLR. The input is decoded, re-clocked and transmitted to the Dante network. A yellow front-panel LOCK LED indicates a valid source received without any lock errors. Special software is not required to configure the module. The SF-DN4 is a professional grade product for studio quality performance.

The SF-DN4 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-DN4 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

Specifications

Network Connector: RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol: Dante
Transmission Rate: 100 Mbps
Input Sample Rates Supported: 32 kHz to 192 kHz
Output (Dante) Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported: 24 bits
Inputs (6): 110 Ω AES/EBU XLR, transformer isolated (2); 75 Ω S/PDIF RCA jack (2); S/PDIF optical (2)
Indicators (5): Ethernet Link and Speed (2, rear panel); Sync (front panel); Lock (2, front panel)
Ambient Operating Environment: 0° C to 50° C
Power Requirement: PoE Class 0, IEEE 802.3af

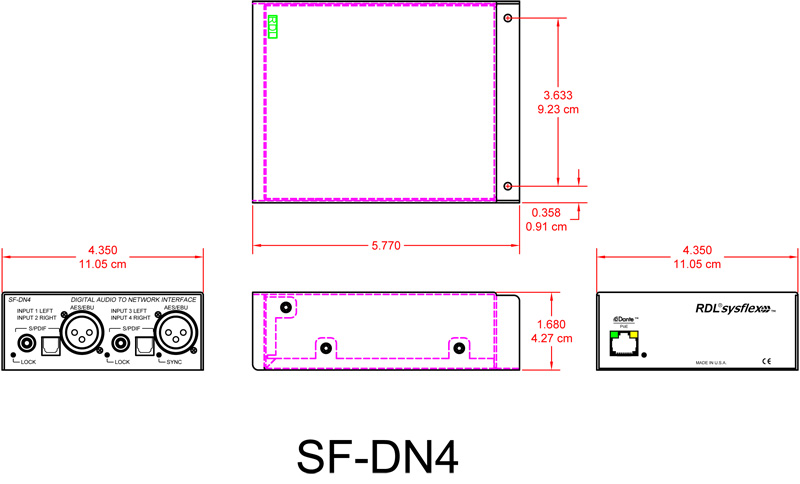

Dimensions: 4.23″ (10.74 cm) W; 1.68″ (4.27 cm) H; 5.77″ (14.66 cm) D
Package Type: Cardboard Box
Package Dimensions: 7 x 4.375 x 2.25 in.
Shipping Weight: 1.375 lbs.
WEEE weight: 1.16 lbs.
Tariff code: 8543.70.9100
