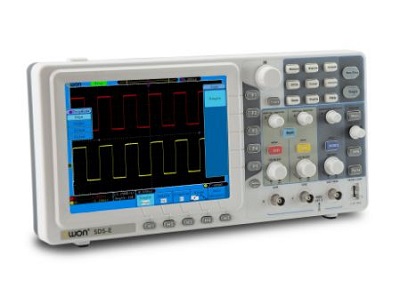

2nd Generation Economical Type Digital Storage Oscilloscope
SDS5032E-V
$688.00
* Ex GST. Check with us for Discounts and the latest Trade pricing!
Main Features
- Bandwidth : 30MHz
- Sample rate : 500MS/s+ 10K record length
- Ultra-thin body
- 8 inch high def TFT display
- Pass / Fail function
- Add / Remove measure function, and user-defined measurement menu
Application:
- electronic circuit debugging
- circuit testing
- design and manufacture
- education and training
- automobile maintenance and testing
Specifications:
| Model | SDS5032E-V |
| Bandwidth | 30MHz |
| Sample Rate (real time) | 500MS/s |
| Horizontal Scale (s/div) | 4ns/div～100s/div, step by 1~2~4 |
| Rise Time (at input, typical) | ≤11ns |
| Channel | 2 + 1 (external) |
| Display | 8" color LCD, TFT display , 800 × 600 pixels, 65535 colors |
| Input Impedance | 1MΩ ± 2%, in parallel with 15pF±5pF |
| Channel Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 |
| Max Input Voltage | 400V (PK - PK) (DC+AC, PK - PK) |
| DC Gain Accuracy | ±3% |
| Record Length | 10K |
| DC Accuracy (average) | Average≥16：±(3% reading + 0.05 div) for △V |
| Probe Attenuation Factor | 1X, 10X, 100X, 1000X |
| LF Respond (AC, -3dB) | ≥10Hz (at input, AC coupling, -3dB) |
| Sample Rate / Relay Time Accuracy | ±100ppm |
| Interpolation | sin (x) / x |
| Interval (△T) Accuracy | Single : ±(1 interval time + 100ppm × reading + 0.6ns), |
| (full bandwidth) | Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns) |
| Input Coupling | DC, AC , and GND |
| Vertical Resolution (A/D) | 8 bits (2 Channels simultaneously) |
| Vertical Sensitivity | 5mV/div～10V/div (at input) |
| Trigger Type | Edge, Pulse, Video, Slope, Alternate |
| Trigger Mode | Auto, Normal, Single |
| Trigger Level | ±6 divisions from screen center |
| Line / Field Frequency (video) | NTSC, PAL, and SECAM standard |
| Cursor Measurement | △V, and △T between cursors |
| Automatic Measurement | Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B |
| Waveform Math | ＋, －, ×, ÷, invert, FFT |
| Waveform Storage | 15 waveforms |
| Lissajous Figure Bandwidth | Full bandwidth |
| Lissajous Figure Phase Difference | ±3 degrees |
| Communication Interface | USB host, USB device, Pass / Fail, LAN, VGA |
| Cymometer | available |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT Ⅱ |
| Power Consumption | ＜18W |
| Fuse | 2A, T class, 250V |
| Battery | not supported |
| Dimension (W×H×D) | 348 × 170 × 78 (mm) |
| Weight (without package) | 1.50 kg |
