RDL Power Inserter - Twisted Pair - four sets of outputs - signal loop-through

RU-TP4PW

$400.79

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

RU-TP4PW

Power Inserter – Twisted Pair – Four sets of outputs – Signal loop-through

Power Four Sets of Remote Senders and Receivers from a Convenient Location
24 Vdc Input on dc Power Jack or Detachable Terminal Block
Blue Power LED Shows Module is Receiving Power
Green LEDs Indicate Correct dc Output Voltage on RJ45s
Two Associated RJ45s Provided for Each Power Output
One Associated RJ45 may Power Receivers
The Other Associated RJ45 may Power Senders
High-Density Rack Mounting Using RACK-UP Accessories

Description

The RU-TP4PW is a four output power inserter compatible with RDL twisted pair products. The RU-TP4PW is powered from a 24 Vdc power supply using either the power jack or the detachable terminal block. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults. Module power is indicated by a front-panel LED. The RU-TP4PW is ideal for powering remote twisted pair modules from a central equipment rack.

Specifications

Outputs (4): Dual-RJ45
Indicators (5): Power In (1); Power Out (4)
Ambient Operating Environment: 0° C to 55° C
Power Connections (2): Power Jack; Detachable Terminal Block
Maximum Load Current: 200 mA (each RJ45 output)
Power Requirement: 24 Vdc @ 25 mA plus connected loads

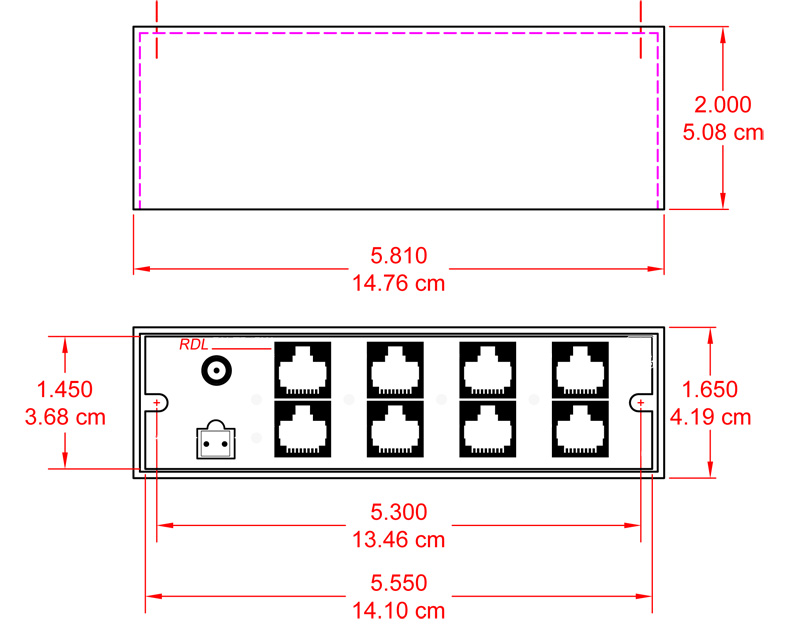

Dimensions: 5.8″ (15 cm) W; 1.7″ (4.3 cm) H; 2.2″ (5.59 cm) D
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.88 lbs.
Shipping Weight: 1.115 lbs.
Package Dimensions: 4.375 x 7 x 2.25 in.
