RDL RS-232/422 Serial Converter (Full-Duplex)

RU-SC2

$585.14

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

RU-SC2

RS-232/422 Serial Converter (Full-Duplex)

Conversion RS-232 ⇔ RS-422
Serial Data Over Long Lines
Rack-Mountable Convenience

Description

The RU-SC2 is the ideal choice in installations when two RS-232 devices requiring full-duplex communication are to be connected at a long distance. Connection to the RS-232 device is made on the front panel. The RS-422 input and output connections and power connections are made on the rear panel through full-size, clearly identified, barrier block terminals. Two RU-SC2s may be connected (using the RS-422 connections) at each end of 2-pair of long, balanced, twisted-pair line to permit feeding data between two RS-232 ports, thereby permitting serial communications over much greater distances than with conventional serial cables.

Specifications

Control Input / Output: RS-232 (DB-9 female jack)
Control Outputs (8): Open-collector, 50 mA
Status Inputs (8): Low = active (internally pulled high to 5 V); MAX input 24 Vdc
0 to 10 VDC Outputs (8): 22 Ω ground-referenced, 20 mA, 256 steps
Ramp Rate 0 to 10 V Outputs: 0.5 to 120 seconds (for full scale change); individually programmable
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 200 mA
Mounting: Mounts in 2 bays of RU-RA3 Rack Adapter or operates Free-standing

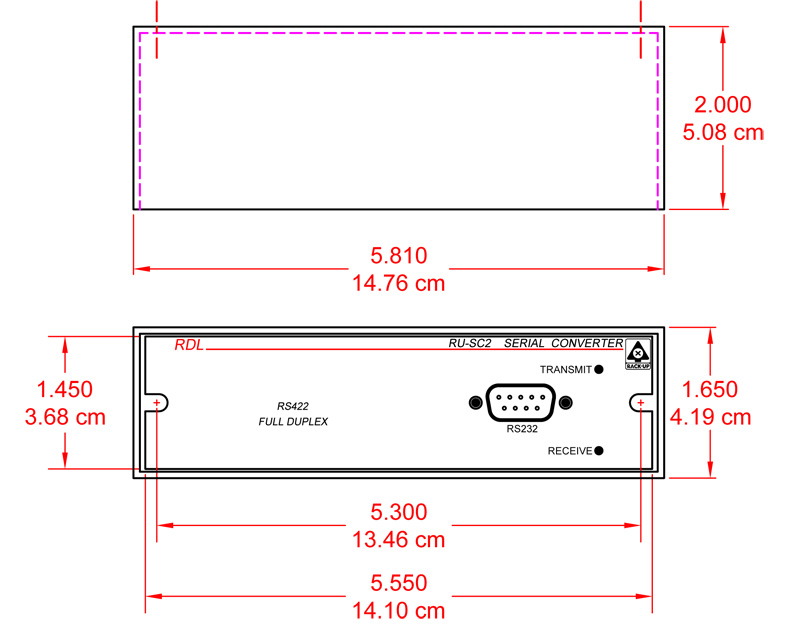

Dimensions: Height: 1.75 in 4.40 cm; Depth: 3.98 in 10.10 cm; Width: 11.60 in 29.50 cm
Package Type: Cardboard Box
WEEE weight: 2.575 lbs.
Shipping Weight: 3.105 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 12 x 8 x 2.75 in.

RDL RS-232/422 Serial Converter (Full-Duplex)

RU-SC2

$585.14

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

RU-SC2

RS-232/422 Serial Converter (Full-Duplex)

Description

Specifications

Dimensions

Download

Feel free to email or call us to purchase this Product.
