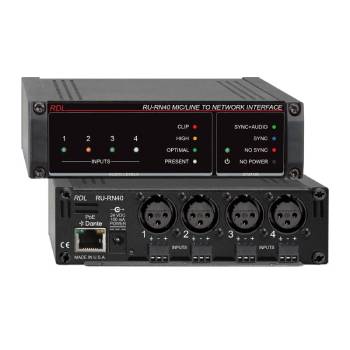

Mic/Line to Dante Network Interface 4x0

RU-RN40

$1,689.00

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

RU-RN40

Mic/Line to Dante Network Interface 4×0

Default Configuration Converts Four Mic or Line Inputs to Dante/AES67 Outputs
4 X 4 Mixing Matrix Signal Paths and DSP Filters Expand System Design Flexibility
Ultra-Low Latency: 1 ms Analog to Digital to Analog
XLR and Detachable Terminal Block Provided for Each Input
Terminal Block Connections may be Wired Balanced or Unbalanced
Input Gains Adjustable From 0 dB to 60 dB in 3.3 dB steps
P48 Phantom Individually Selectable per Input or Automatically Gain-Dependent
Selectable Audio Compressor/Limiter on Each Analog Input
One DSP Filter for Each Audio Input, Three DSP Filters for Each Dante Output
Selectable DSP Filters: None, Hi-Pass, Lo-Pass, Shelf Hi/Lo, Notch Boost/Cut
All DSP Filters are Fully Programmable
Each Output Stage Receives Audio through a Four-Channel Mixer
Each Output Mixer Source is Adjustable From Unity (Fully On) to OFF
Provides Functions of Audio Mixer and/or Distribution Amplifier
Dante/AES67 Outputs are Adjustable in 1 dB Steps 0 to -63 dB then OFF
Remote Controllable Using Compatible RDL Remote Controls
Multicolor LED Indication of Audio Levels, Sync and Signal Presence
Extremely Low Noise <-69 dB Below Operating Level at 60 dB (Max) Input Gain
Operates at 48 kHz or 96 kHz with High Resolution 24 Bit A/D Conversion
All Operating Parameters and Settings Programmed using RDL CONSOLE

Description

The RU-RN40 modules are Dante/AES67 audio network interface products compatible with microphones and line-level audio equipment inputs and outputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

The RU-RN40 has four analog mic/line inputs and four Dante/AES67 network audio channel outputs. Each output stage is driven by an incorporated mixer fed from all four RU-RN40 inputs. Independent control of all mixer levels plus multiple DSP filters with adjustable parameters make the RU-RN40 far more versatile than a basic format converter. Each DSP filter may be set to None (audio pass-through), High-Pass, Low-Pass, Shelf High/Low or Notch Boost/Cut. Multiple filters may be set to the same function to obtain higher order filtering.

The RU-RN40 factory default settings provide high-quality conversion from four analog line-level, dynamic or condenser microphone sources to four Dante/AES67 network audio channels. The RU-RN40 provides an XLR or a detachable terminal block for connection to each analog input. Normal operating line level is +4 dBu balanced for -18 dBFS. The balanced terminal blocks may be wired unbalanced.

Consult the RU-RN40 functional block diagram in the image gallery to explore the wide range of configurations made possible by the mixing matrix design.

Specifications

TYPICAL PERFORMANCE
Network Connector: RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol: Dante or AES67
Transmission Rate: 100 Mbps
Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported: 24 bits
Audio Operating Level: -18 dBFS = +4 dBu
Reference Level: 0 dBFS = +22 dBu
Inputs (4): Balanced, XLR (female) or Detachable Terminal Block (may be wired unbalanced)
Gain: Software adjustable, 0 dB to 60 dB, 3.33 dB steps
Input Level (for +4 dBu/-18 dBFS): -56 dBu minimum, +4 dBu , maximum
Input Level (maximum): +22 dBu
Input Impedance: > 1.2 kΩ
Phantom Power: P48, software-selectable; programmable for automatic enable when MIC gain is selected
Standard for Phantom: IEC 61938:2013
Frequency Response: 20 Hz to 20 kHz (+0, -0.75 dB)
Equivalent Input Noise (EIN): < -129 dBu (60 dB gain); < -131 dBu A-Weighted
Noise below -18 dBFS (20 to 20 kHz): Mic: < -69 dB (60 dB gain), < -79 dB (50 dB gain); Line: < -100 dB
THD+N: < 0.05% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
CMRR: Below Noise Floor (50 Hz to 150 Hz)
Crosstalk: < -70 dB (20 Hz to 20 kHz, any channel to any channel, 0 dB gain to 60 dB gain)
Indicators (7): Ethernet Link and Speed (2, rear panel); Signal per audio channel and Power (5, front panel)
Ambient Operating Environment: 0° C to 40° C
Power Requirement: PoE Class 0, IEEE 802.3af, or 24 Vdc @ 260 mA (6.2W)
Specification Conditions: Gain/Level ± 1 dB; Source termination 150 Ω; A to D values measured in digital domain
Dimensions: 5.74” (14.58 cm) W; 1.64” (4.17 cm) H; 6.4” (16.26 cm) D
Package Type: Cardboard Box
Package Dimensions: 3.25″ (8.26 cm) H X 7.8″ (19.8 cm) W X 7.25″ (18.4 cm) D
Shipping Weight: 2.17 lbs. (0.98 kg)
WEEE weight: 1.8 lbs. (0.82 kg)
US Tariff Code: 8543.70.9100
EU Tariff Code: 85437006

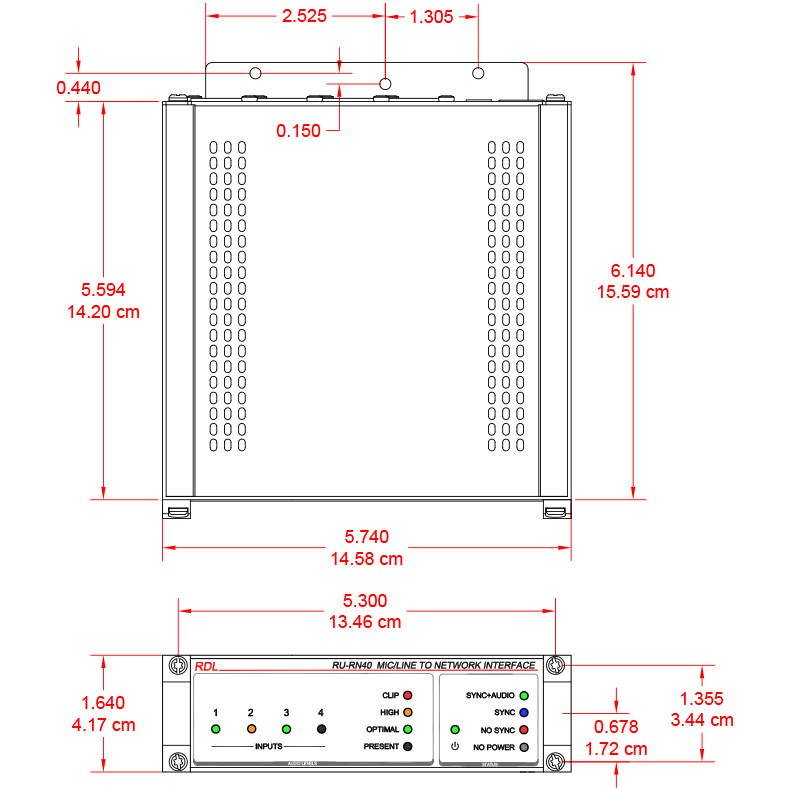

Dimensions
