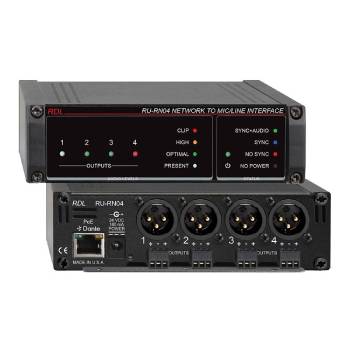

Network to Mic/Line Interface 0x4

Default Configuration Converts 4 Dante/AES67 Channels to Mic or Line Outputs
4 X 4 Mixing Matrix Signal Paths and DSP Filters Expand System Design Flexibility
Ultra-Low Latency: 1 ms Analog to Digital to Analog
Analog Outputs Connect through XLR or Detachable Terminal Block
Terminal Block Connections may be Wired Balanced or Unbalanced
One DSP Filter for Each Dante/AES67 Input
Three DSP Filters for Each Analog Output
Selectable DSP Filters: None, Hi-Pass, Lo-Pass, Shelf Hi/Lo, Notch Boost/Cut
All DSP Filters are Fully Programmable
Each Output Stage Receives Audio through a Four-Channel Mixer
Each Output Mixer Source is Adjustable From Unity (Fully On) to OFF
Analog Outputs are Protected from External Phantom Voltages up to P48
Each Analog Output Equipped with a Selectable 180° Polarity “Phase” Inverter
Each Analog Output Equipped with a Selectable Line to Mic Attenuator Pad
Analog Outputs Adjust in 1 dB Steps Below +4 dBu Line or -46 dBu Mic Level
Each Output Attenuator is Adjustable in 1 dB Steps 0 to -63 dB then OFF
Remote Controllable Using Compatible RDL Remote Controls
Multicolor LED Indication of Audio Levels, Sync and Signal Presence
Operates at 48 kHz or 96 kHz with High Resolution 24 Bit D/A Conversion
All Operating Parameters and Settings Programmed using RDL CONSOLE

Description

The RU-RN04 modules are Dante/AES67 audio network interface products compatible with microphones and line-level audio equipment inputs and outputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

The RU-RN04 has four Dante/AES67 network digital audio channel inputs and four analog mic/line outputs. Each output stage is driven by an incorporated mixer fed from all four RU-RN04 inputs. Independent control of all mixer levels plus multiple DSP filters with adjustable parameters make the RU-RN04 far more versatile than a basic format converter. Each DSP filter may be set to None (audio pass-through), High-Pass, Low-Pass, Shelf High/Low or Notch Boost/Cut. Multiple filters may be set to the same function to obtain higher order filtering.

The RU-RN04 factory default settings provide high-quality converters that feed professional line-level outputs from four Dante/AES67 network received audio channels. The RU-RN04 provides an XLR or a detachable terminal block for connection to each analog output. Normal operating line level is +4 dBu balanced for -18 dBFS. The balanced terminal blocks may be wired unbalanced.

Consult the RU-RN04 functional block diagram in the image gallery to explore the wide range of configurations made possible by the mixing matrix design.

Specifications

TYPICAL PERFORMANCE
Network Connector: RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol: Dante or AES67
Transmission Rate: 100 Mbps
Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
Bit Depth Supported: 24 bits
Audio Operating Level: -18 dBFS = +4 dBu
Reference Level: 0 dBFS = +22 dBu
Outputs (4): Balanced, XLR (male) or Detachable Terminal Block (may be wired unbalanced)
Output Attenuation Pads (4): Software-selectable, Line Output (no attenuation), Mic Output (50 dB attenuation)
Output Level (operating): Line: +4 dBu (nominal) balanced; Mic: -46 dBu (nominal) balanced
Output Level (maximum): Line: +22 dBu balanced; Mic: -28 dBu balanced
Output Attenuators (4): Software-controlled, 0 to -63 dB and OFF, 1 dB steps (per analog output)
Output Impedance: 150 Ω balanced
Frequency Response: 20 Hz to 20 kHz (+0, -0.75 dB)
THD+N: < 0.01% (20 Hz to 20 kHz, +4 dBu/-18 dBFS)
Noise below -18 dBFS (20 to 20 kHz): < -85 dB (20 Hz to 20 kHz, +4 dBu/-18 dBFS); < -103 dB (below +22 dBu)
Crosstalk: Below Noise Floor (1 kHz at operating level, output to output); <-74 dB (20 Hz to 20 kHz)
Headroom above +4 dBu > 18 dB
Indicators (7): Ethernet Link and Speed (2, rear panel); Signal per audio channel and Power (5, front panel)
Ambient Operating Environment: 0° C to 40° C
Power Requirement: PoE Class 0, IEEE 802.3af, or 24 Vdc @ 180 mA (4.3 W)
Specification Conditions: Gain/Level ± 1 dB; Source termination 150 Ω; A to D values measured in digital domain
Dimensions: 5.74” (14.58 cm) W; 1.64” (4.17 cm) H; 6.4” (16.26 cm) D
Package Type: Cardboard Box
Package Dimensions: 3.25″ (8.26 cm) H X 7.8″ (19.8 cm) W X 7.25″ (18.4 cm) D
Shipping Weight: 2.14 lbs. (0.97 kg)
WEEE weight: 1.78 lbs. (0.81 kg)
US Tariff Code: 8543.70.9100
EU Tariff Code: 85437006

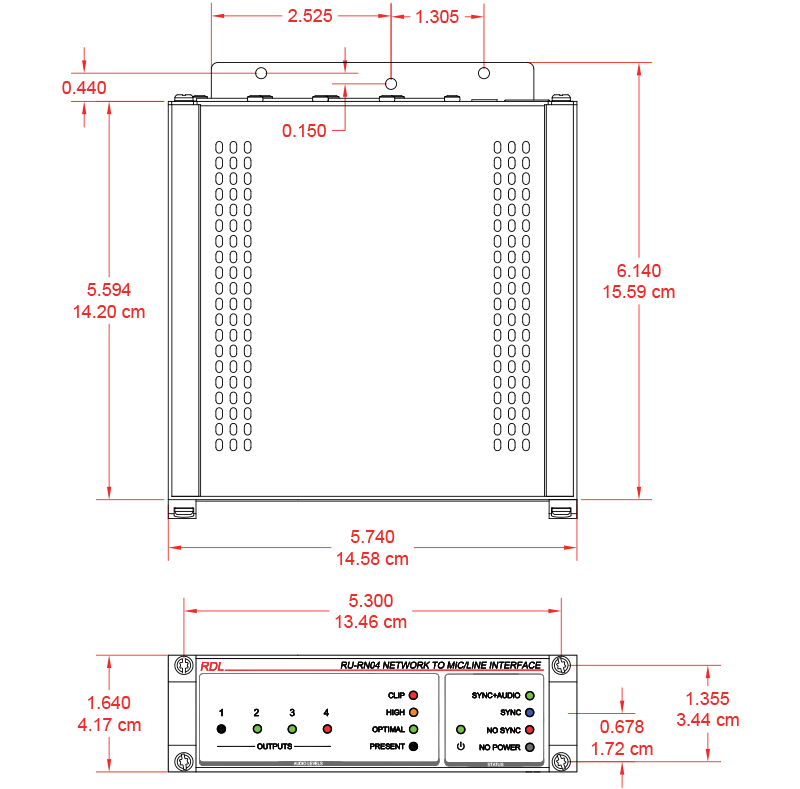

Dimensions
