DB Broadcast, Omnidirectional FM Transmitting Antenna

P1/N

P.O.A

* Ex GST. Check with us for the latest pricing

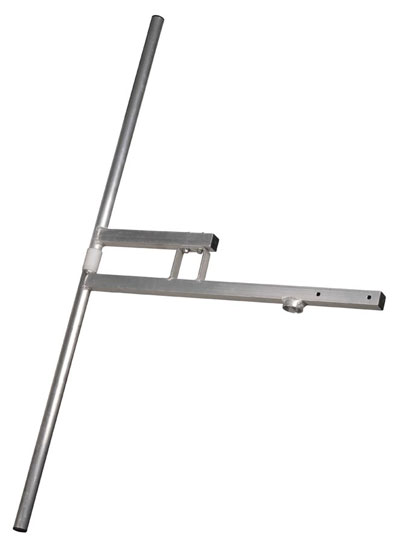

Anticorodal omnidirectional dipole, 87.5 - 108 MHz broadband, 2.15 dB gain. N connector. Includes mounting clamps and stainless steel accessories.

- Suitable for single channel or broadband operations with multi-channel combiners.
- The standard mounting brackets are designed for instant installation on poles with diameters from 32 to 90 mm. Special brackets are available upon request.
- The input connector is protected against rain and icing by a special housing. The internal balun is also protected against water, icing and moisture by a sealed housing.
- By employing the finest materials (stainless steel, non-corrosive aluminium alloy, marine brass, virgin PTFE) the antenna is assured a long service life.
- Lightning resistance is assured by the DC ground potential of the entire antenna.

Download Product Datasheet
