Arrakis H15-Lite Broadcast Console, 15CH, Bluetooth

H15-LITE

CALL for Price

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

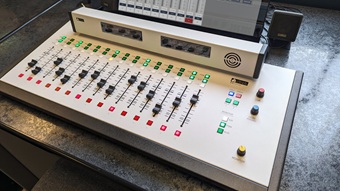

Arrakis H15-LITE Analog 15Ch console with Bluetooth built-in

The H15 Console offers a fusion of the best features from both analog and digital technologies, marrying the simplicity, reliability, performance, and ease of analog operation with the flexibility and power of digital systems. It's a perfect blend of traditional and modern features, delivering an exceptional audio experience for all studio applications.

Additionally, it is the industry's first analog console that is software-controllable.

Download H15 Console Manual (May2026)

5 Types of Channels

Microphone

1-5 Mics built-in mic preamps. Dip switch selectable between mic or line.
High performance mic preamp channels, with XLR inputs.
48VDC phantom power for condenser mics (Optional purchase on our Accessories page).
Channel 1 features a Talk button to talk to a Studio monitor.
LED illuminated switches.

Stereo Line Input

7 to 12 Stereo Inputs, giving you enough channels to connect all of your devices. Dip switch selectable on rear of board.
Trim pot adjustable for each channel.
Both active balanced RJ-45 & unbalanced RCA.
2 stereo output buses. Both balanced and unbalanced outputs.
LED illuminated switches.

USB

Play & Record in digital with a Windows or Mac OS PC.
USB sound card functionality to work with any software.
Simple connect using standard USB cable.
Play audio from your USB device directly onto your board.
Record audio from your board using any 3rd party software.
LED illuminated switches.

Phone

2 Phone Mix- channels come standard, allowing you to connect to a phone hybrid.
Audio & Logic connections available to connect to hybrid.
Listen off-line to a caller using the Cue button.
Talkback button enables you to talk to the caller off-air.
Mix minus feed to the caller is a mix of Pgm-Aud.
LED illuminated switches

Bluetooth

The Bluetooth channel allows you to connect any Bluetooth device to channel 15 on the board.
Connect your phone using the Bluetooth channel to take calls and put callers on-air. You can even use a landline phone that has a bluetooth headset option for higher quality and reliability.
Connect your tablet wireless to the board, to play audio over the air.
Quality comes standard with the latest in Bluetooth technology.
A wireless connection protects your board from the repetitive connecting and disconnecting of equipment. Excellent for studios with high traffic.

Software Controllable (Non Lite Version Only)

Software controllable, the H Series Controller gives you access to your console anywhere in the world.
Customizable user presets that give you the ability to quickly switch between different shows or presets.
Automatic restore after power loss.
Custom channel labels.
Logic control.
Pre-fader remote control.
Monitor levels and diagnose any possible audio issues remotely.
Up/Down timer.
Utilizes world class security protocols.
