GB6

Specifications

AUDIO
Frequency Response: 10 Hz to 50 kHz (± 0.25 dB)
Insertion Loss: <0.3 dB (into balanced bridging input), <1.0 dB (into 150 Ω or 600 Ω balanced< input), < 6 dB (600 Ω balanced source into 600 Ω load)

ELECTRICAL
Number of Circuits: 4, independent (for connection as 4 unbalanced or 2 balanced audio lines)
Equivalent Series Resistance, Input to Output: 20 Ω
Equivalent Circuit: 300 kHz LP filter, 6 dB/octave, integral shunt high-voltage switch
Maximum Working Signal: 30 Vp, 60 V p-p
HV Switch Clamp: 24 V actuation; 48 V maximum
Transient Energy: 0.1 joule

PHYSICAL
Case Material: Electromagnetically inert plastic composition
Size: 1.75 in. W x 2.5 in. L x 0.9 in. H (4.45 cm x 6.35 cm x 2.29 cm) (including terminal strip)
Ground Bus (integral): 110 alloy copper, 0.25″ W x 1.6″ L (.64 cm x 4.1 cm) with 2 mounting holes, #6 (.37 cm) clearance, mounting hardware included
Input/Output Termination: #6 (.35 cm) captive screw terminals
Package Type: Cardboard Box
WEEE weight: 0.185 lbs.
Shipping Weight: 0.245 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.

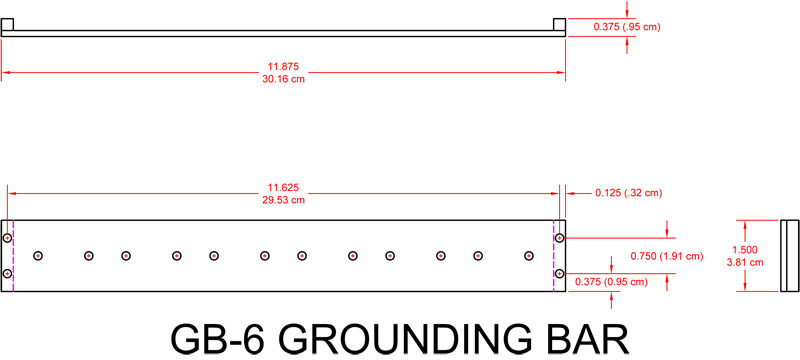

Dimensions
