RDL Unbalanced to Balanced Converter - 6 Channel

FP-UBC6

$1,185.30

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

FP-UBC6

Unbalanced to Balanced Converter – 6 Channel

Unbalanced to Balanced Audio Conversion
6 Channel Conversion with Gain Trim
Connectorized Audio Converter
Low-Noise and Low-Distortion Conversion
Cabinet, Shelf or Rack Mounting
Convenience of RDL® FLAT-PAKs™

Description

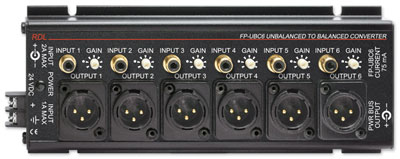

The FP-UBC6 is the ideal choice for multiple channel connectorized conversion from unbalanced to balanced audio. This module features six identical channels, making it ideally suited to converting consumer 6-channel surround sound into the professional audio format. Each input channel is unbalanced, connected through a gold-plated phono jack. Each output is balanced. All outputs are connected through XLR jacks with gold-plated pins. A gain trim potentiometer is provided for each channel.

The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a −10 dBV unbalanced input. The gain is adjustable −5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from −20 dBV to −5 dBV.

Specifications

Amps per FP-UBC6: 6 identical circuits
Gain: -5 dB to +10 dB adjustable (relative to +4 dBu output for −10 dBV input;
separate controls for each channel)
Input Level: -20 dBV to −5 dBV (for +4 dBu output)
Input Impedance: 10 kΩ
Input Configuration: Unbalanced
Output Impedance: 150 Ω balanced, drives 600 Ω or 10 kΩ lines
Output Configuration: Balanced or unbalanced
Frequency Response: 20 Hz to 40 kHz (± 0.25 dB)
Total Harmonic Distortion: < 0.05%; typ. 0.01% (1 kHz)
IMD: < 0.02%
Output Level: +4 dBu
Headroom: > 18 dB (at rated output level of +4 dBu)
Noise: < -90 dB referred to +4 dBu (20 Hz to 20 kHz)
Crosstalk: Better than 80 dB (20 Hz to 20 kHz)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 75 mA

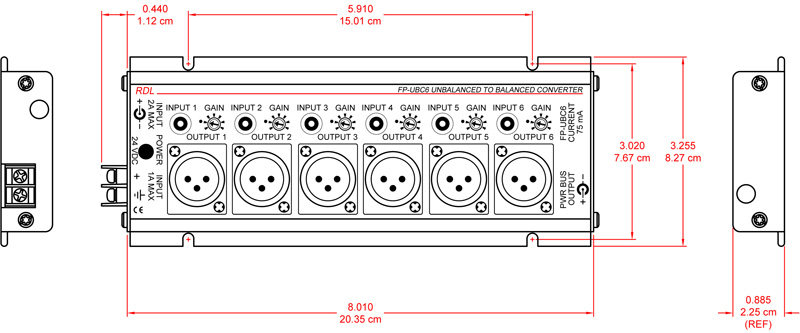

Dimensions: Height: 1.29 in. 3.28 cm; Width: 3.25 in. 8.26 cm; Length: 8.55 in. 21.72 cm;
Package Type: Cardboard Box
WEEE weight: 1.255 lbs.
Shipping Weight: 1.54 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 3.375 x 8.5625 x 1.5 in.
