RDL Unbalanced to Balanced Converter - 2 Channel

FP-UBC2

$550.96

* Ex GST... Call us for Discounts and the latest Trade pricing!

In stock

FP-UBC2

Unbalanced to Balanced Converter – 2 Channel

Stereo Unbalanced to Balanced Audio Conversion
Connectorized Audio Converter
Output Level Trim
Low-Noise and Low-Distortion Conversion
Cabinet, Shelf or Rack Mounting
Convenience of RDL FLAT-PAKs

Description

The FP-UBC2 is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels. Gold-plated phono jacks are utilized for each unbalanced input channel. Each output is balanced, connected through an XLR jack. A gain trim potentiometer is provided for each channel.

The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a −10 dBV unbalanced input. The gain is adjustable −5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from −20 dBV to −5 dBV.

Specifications

Amps per FP-UBC2: 2 identical circuits (stereo or dual mono operation)
Gain: -5 dB to +10 dB (adjustable relative to +4 dBu output for −10 dBV input);
(separate controls for each channel)
Input Level: -20 dBV to -5 dBV (for +4 dBu output)
Input Impedance: 10 kΩ
Input Configuration: Unbalanced
Output Impedance: 150 Ω balanced, drives 600 Ω or 10 kΩ lines
Output Configuration: Balanced or unbalanced
Frequency Response: 20 Hz to 40 kHz (± 0.25 dB)
THD+N: < 0.05%; typ. 0.01% (1 kHz)
IMD: < 0.02%
Output Level: +4 dBu
Headroom: > 18 dB (at rated output level of +4 dBu)
Noise: < -85 dB referred to +4 dBu (20 Hz to 20 kHz)
Crosstalk: Better than 70 dB (20 Hz to 20 kHz); < -80 dB (typ. 1 kHz)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 50 mA

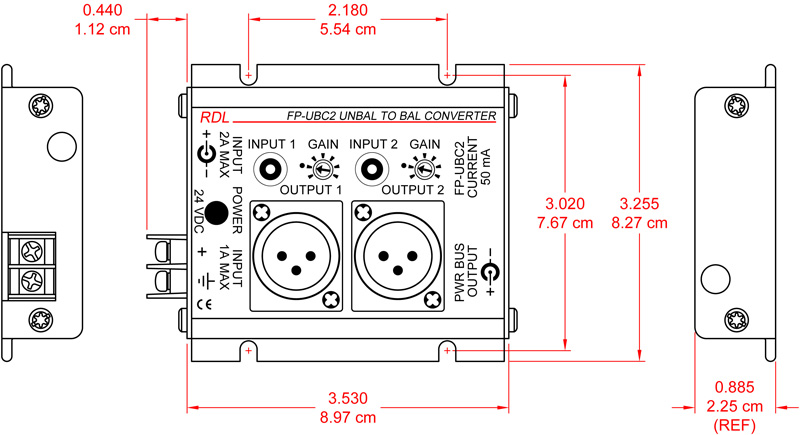

Dimensions: Height: 1.29 in. 3.28 cm; Width: 3.25 in. 8.26 cm; Length: 4.07 in. 10.34 cm
Package Type: Cardboard Box
WEEE weight: 0.575 lbs.
Shipping Weight: 0.725 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 3.625 x 4.625 x 2.125 in.
