RDL Power Inserter - Twisted Pair - four sets of outputs - signal loop-through

FP-TP4PW

$544.82

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

FP-TP4PW

Power Inserter – Twisted Pair – Four sets of outputs – Signal loop-through

Power Four Sets of Remote Senders and Receivers from a Convenient Location
24 Vdc Input on dc Power Jack or Full-Size Terminal Block
Power Bus Provides Expansion to Adjacent Power Inserters
Blue Power LED Shows Module is Receiving Power
Green LEDs Indicate Correct dc Output Voltage on RJ45s
Two Associated RJ45s Provided for Each Power Output
One Associated RJ45 may Power Receivers
The Other Associated RJ45 may Power Senders

Description

The FP-TP4PW is a four output power inserter compatible with RDL twisted pair products. It is powered from a 24 Vdc power supply using either one of the power jacks or the terminal block. Power jacks are provided at each end of the module to facilitate chaining multiple FP-TP4PWs from a single power supply. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults. Module power is indicated by a front-panel LED.

Specifications

Outputs (4): Dual-RJ45
Indicators (5): Power In (1); Power Out (4)
Power Connections (3): Power Jack (2); Terminal Block
Ambient Operating Environment: 0° C to 55° C
Maximum Load Current: 200 mA (each RJ45 output)
Power Requirement: 24 Vdc @ 25 mA plus connected loads

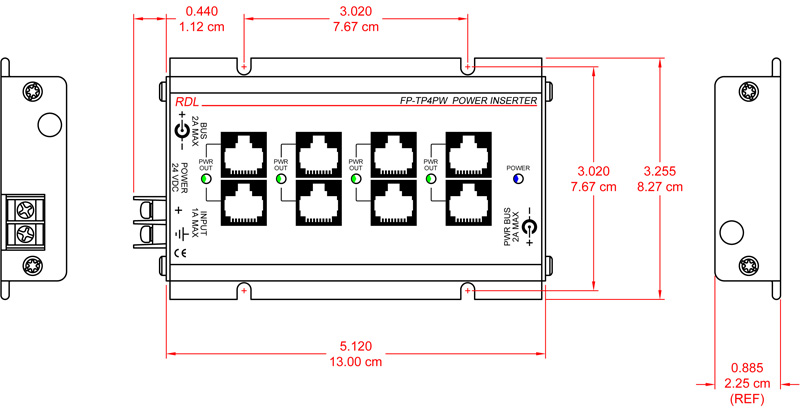

Dimensions: 5.65″ (13.56 cm) W; 3.25″ (8.26 cm) H; 1.11″ (2.67 cm) D
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.605 lbs.
Shipping Weight: 0.87 lbs.
Package Dimensions: 4.375 x 7 x 2.25 in.
