RDL Power Supply Mounting Bracket

FP-PSB1A

$141.69

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

FP-PSB1A

Desktop Power Supply Mounting Bracket

Mounts One Desktop Power Supply
Holds One FP-PA20 Style Amplifier or a Variety of Other RDL Modules
May be Used to Mount Power Supply to a Flat Surface
Compatible with RDL FP-RRA and FP-RRAH FLAT-PAK™ Rack Adapters

Description

The FP-PSB1A mounts one desktop style power supply and it includes a provision to mount other modules. Any RDL FP‑PA20 type audio power amplifier can mount directly to the FP-PSB1A. RDL offers mounting brackets for mounting other RDL modules in place of the FP‑PA20.

The FP-PSB1A mounts to any flat surface or in an RDL FLAT-PAK series rack mount panel (FP‑RRA or FP‑RRAH). The design of the FP-PSB1A allows it to slide into the FLAT-PAK rack mount track. Mounting the FP‑PA20 power amplifier (or other RDL modules using available adapter) together with the power supply conserves rack space and produces a convenient and professional installation.

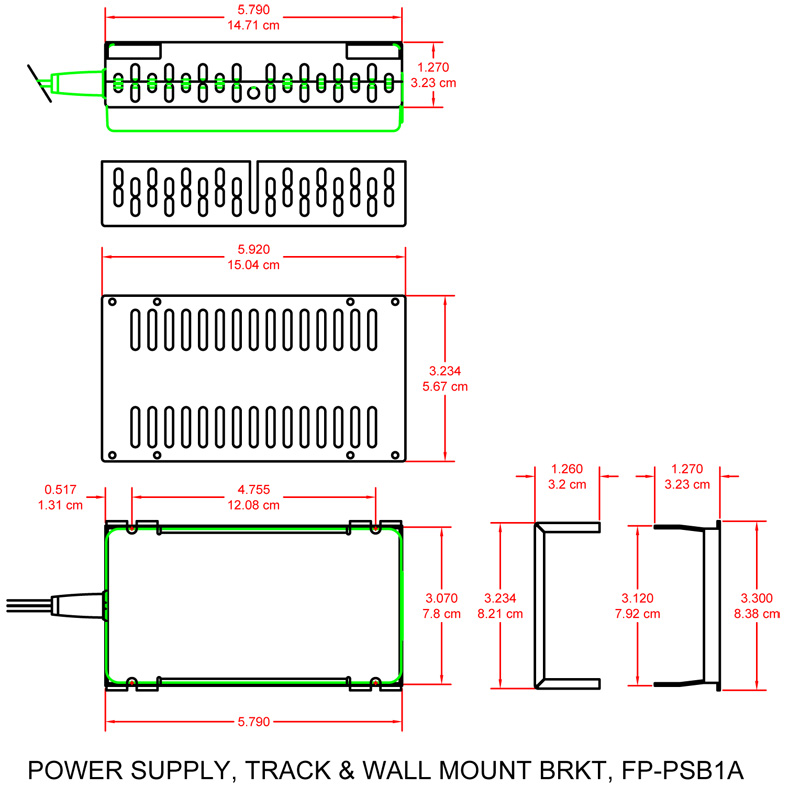

The FP-PSB1A is compatible with all RDL desktop power supplies and with any desktop power supply with maximum dimensions: 5.8”, 14.7 cm x 3”, 7.6 cm x 1.7”, 4.3 cm.

Specifications

Input: 100 to 240 VAC
Output: 24 Vdc, 2 A (UL, CSA)
Dimensions: 2 in. (5 cm) x 1.33 in. (3.4 cm) x 4.75 in. (12 cm)
Efficiency: ENERGY STAR Level V
Ambient Operating Environment: 0° C to 40° C Maximum
Package Type: Cardboard Box
Shipping Weight: 1.5 lbs.
Package Dimensions: 6.25 x 3.75 x 2.25 in.
WEEE Weight: 1.415 lbs
