RDL Studio Quality Mic Preamp w/ Phantom - Terminals & XLR

FP-MP1

$695.76

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

FP-MP1

Studio Quality Microphone Preamplifier with Phantom – Terminal block & XLR

Professional Studio-Quality Low-Noise Performance
Switchable Internal Phantom Voltage
XLR and Terminal Block Connections
Selectable Input Level Ranges
Adjustable Gain with Dual-LED VU Metering
Ultra-Compact All Metal Construction
Convenience of RDL® FLAT-PAKs™

Description

The FP-MP1 is the ideal choice in most applications requiring a preamp. RDL’s exclusive low-noise discrete circuitry produces studio quality low noise performance in an economical preamplifier. The XLR and plug-in terminal block connections make the FP-MP1 perfect for both rack-mounted hardwired installations and remote use with standard audio cables. A front-panel switch permits the installer to direct phantom voltage to the input connectors. This 3-position switch provides 24V, 12V or phantom OFF. A second switch selects the input gain range thereby permitting the connection of standard or high output level microphones.

Specifications

Input Impedance: 3 kΩ (balanced)
GAIN (4 ranges): MIN: 19 dB to 38 dB (switch-selectable)
LOW: 26 dB to 45 dB (switch-selectable)
MED: 36 dB to 55 dB (switch-selectable)
HIGH: 46 dB to 65 dB (switch-selectable)

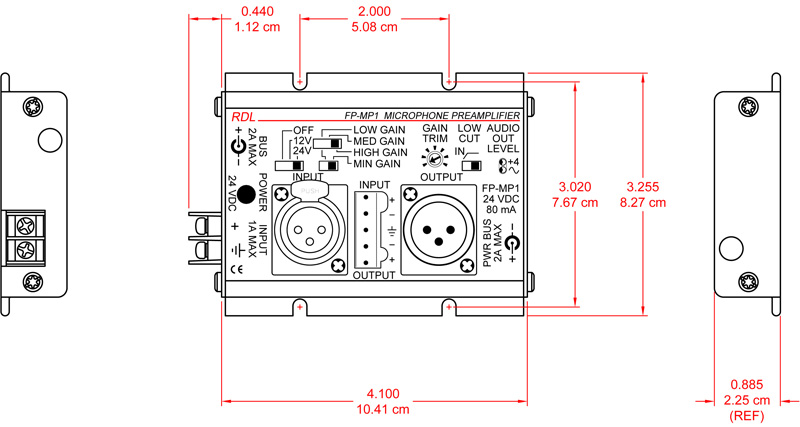

Dimensions: Height: 1.42 in 3.61 cm; Width: 3.25 in. 8.26 cm; Length: 4.64 in. 11.79 cm
Input Clipping Level: +4 dBu (at MIN gain)
Headroom: 20 dB (above +4 dBu
Low-Cut Filter: 80 Hz, 6 dB/Octave (switch-selectable)
Phantom Voltages: 12 V, 24 V (switch-selectable)
Buildout Standard: IEC 61938: 2013
CMRR: > 60 dB
Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
THD + N: < 0.1% (+4 dBu, all gain settings)
IMD < 0.1%
Noise (below +4 dBu): < -70 dB (60 dB gain, 20 Hz to 20 kHz)
< -72 dB (60 dB gain, “A-Weighted”)
< -80 dB (50 dB gain, 20 Hz to 20 kHz)
Equivalent Input Noise: < -130 dB (gain + residual noise below +4 dBu)
Connector type: XLR female (input); XLR male (output); 5 position plug-in terminal block (input and output)
Audio Level Indicators (2): Red LED: Output level > +4 dBu
Green: -10 to +4 dBu (variable intensity)
Ambient Operating Environment: 0° C to 50° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 100 mA
Package Type: Cardboard Box
WEEE weight: 0.645 lbs.
Shipping Weight: 0.815 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 3.625 x 4.625 x 2.125 in.
