RDL Stereo Audio/Video Distributor - 1x4 - Phono Jacks

FP-AVDA4

$808.50

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

FP-AVDA4

Stereo Audio/Video Distribution Amplifier – 1×4 – RCA Jacks

Consumer Audio/Video Distribution
Four Outputs (Video + Stereo Audio)
Professional Quality Performance
75 Ω Video Input/Outputs
Unbalanced Audio Input/Outputs
Wideband Video − Flat to 10 MHz
Ultra-Compact All Metal Construction

Description

The FP-AVDA4 is the ideal choice in applications where consumer format audio and video signals need to be distributed simultaneously. Audio and video inputs and outputs are made on the top panel phono jacks. The FP-AVDA4 has a single 75 Ω input phono jack for the video signal and two phono jacks for the left and right audio inputs. Four source-terminated, 75 Ω video outputs are provided on the video output phono jacks. Four stereo audio outputs are provided on phono jack pairs located adjacent to the corresponding video output. Unused outputs need not be terminated. Audio and video outputs are at unity gain.

Specifications

Crosstalk: Better than 75 dB (20 Hz to 20 kHz);
typ < -90 dB (1 kHz)
Noise: < −85 dB below −10 dBV
Headroom: > 18 dB
Output Level: -10 dBV
IMD: < 0.02%
THD+N: < 0.05%; typ. 0.01% (1 kHz)
Frequency Response: 20 Hz to 40 kHz (± 0.25 dB)
Output Impedance: 150 Ω drives 10 kΩ lines
Outputs (8): Phono jacks (4 stereo)
Gain: Unity
Input Impedance: 10 kΩ, bridging
Inputs (2): Phono jacks (stereo), -10 dBV Unbalanced

AUDIO
Differential Phase: 0.1 degree (measured at 10% and 90% APL)
Differential Gain: 0.1%
Output Isolation: > 45 dB
Noise: < -75 dB (below 1 V p-p)
Frequency Response: 10 Hz to 10 MHz (± 0.2 dB)
Outputs (4): Phono jack
Output Level: 1 V p-p (into 75 Ω)
Gain: Unity
Input: Phono jack, 1 V p-p
VIDEO:
Input Impedance: 75 Ω
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 60 mA

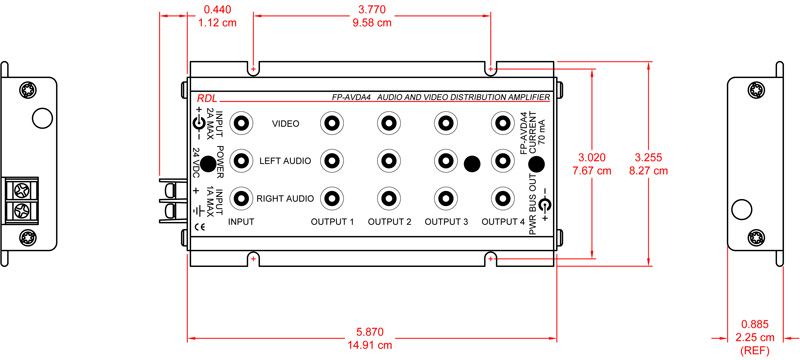

Dimensions: Height: 1.20 in. 3.05 cm; Width: 3.25 in. 8.26 cm; Length: 6.41 in. 16.28 cm
Package Type: Cardboard Box
Package Dimensions: 4.375 x 7 x 2.25 in.
Shipping Weight: 0.895 lbs.
WEEE weight: 0.65 lbs.
Tariff code: 8543.70.9860
