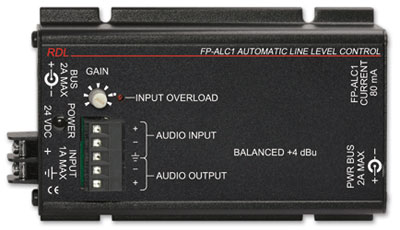

RDL Automatic Level Control - Mono - Terminals

FP-ALC1

$687.67

* Ex GST... Call us for Discounts and the latest Trade pricing!

In stock

FP-ALC1

Automatic Level Control – Mono – Terminal block

Consistent Levels from Variable Sources
Split-Band AGC for Audio Transparency
Self-Adjusting Attack and Release Times
AGC with Simple Single-Control Setup
Level Control Range > 20 dB
Gated Control to Avoid Level Seeking
Convenience of RDL® FLAT-PAKs™

Description

The FP-ALC1 is the ideal choice in many applications where consistent mono audio levels are needed from professional sources with varying audio output levels. Power connections are made using either the full-size barrier block or a dc power jack located in one end panel.

The FP-ALC1 is a single channel (mono) module featuring a detachable terminal block for the input and output. A single user adjustment makes installation simple and efficient. The gain adjustment is set as high as possible with the loudest source without the INPUT OVERLOAD indicator flashing. No further adjustments are needed. Sound systems fed from variable audio source levels, such as multiple CD changers, satellite receivers or paging sources benefit from consistent levels.

Common FP-ALC1 applications include paging outputs from telephone systems, music-on-hold feeds for telephone systems, background or foreground amplifier inputs in sound systems, voice feeds in communications/intercom systems.

Specifications

Input: 10 kΩ balanced bridging (may be
connected unbalanced)
Input Level: +4 dBu (nominal)
Output: 150 Ω balanced (may be connected
unbalanced)
Output Level: +4 dBu
Automatic Level Range: -16 to +14 dBu
Gate Threshold: -18 dBu (20 Hz to 3 kHz)
Frequency Response (excluding AGC): 20 Hz to 20 kHz (± 0.75 dB)
THD+N (excluding AGC): < 0.15% (20 Hz to 20 kHz)
Noise: < -90 dB (below +4 dBu output)
Headroom: > 18 dB
Indicator (1): INPUT OVERLOAD
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 80 mA

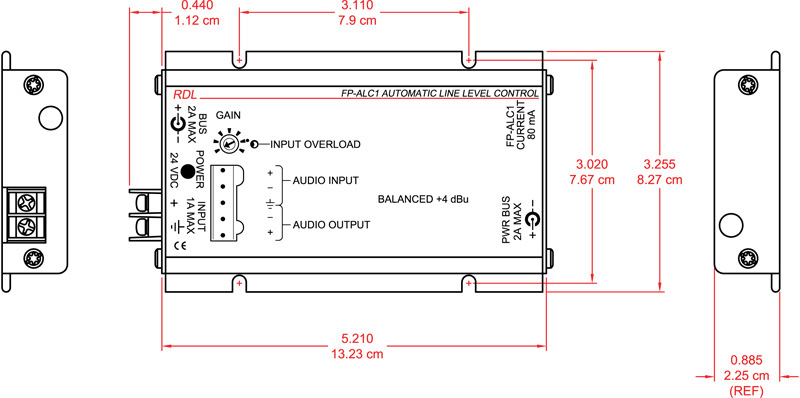

Overall Dimensions: Height: 1.42 in. 3.61 cm; Width: 3.25 in. 8.26 cm; Length: 5.75 in. 14.61 cm
Package Type: Cardboard Box
WEEE weight: 0.625 lbs.
Shipping Weight: 0.875 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 4.375 x 7 x 2.25 in.
