RDL 24 Vdc Power Distributor - 1x3

EZ-PD3

$318.19

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

EZ-PD3

Power Supply Distributor

Distribution of 24 Vdc Power
Soft-Start from Switching Supply
Outputs may be Activated by a Front-Panel Switch
Up to 3 Power Distribution Points
Voltage Presence Indication
Reverse Voltage Protection
Energy Efficiency by Powering Multiple Products from a Single Power Supply

Description

The EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.

Specifications

Input/Output Voltage: 24 Vdc @ 600 mA (Intended for use with current limited switching supply)
Outputs (3): Total load current must not exceed 600 mA
Indicator: POWER LED
Ambient Operating Environment: 0° C to 55° C
Power Requirement: 24 Vdc @ 20 mA plus connected loads
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.41 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.675 lbs.

RDL 24 Vdc Power Distributor - 1x3

EZ-PD3

$318.19

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

EZ-PD3

Power Supply Distributor

Description

Specifications

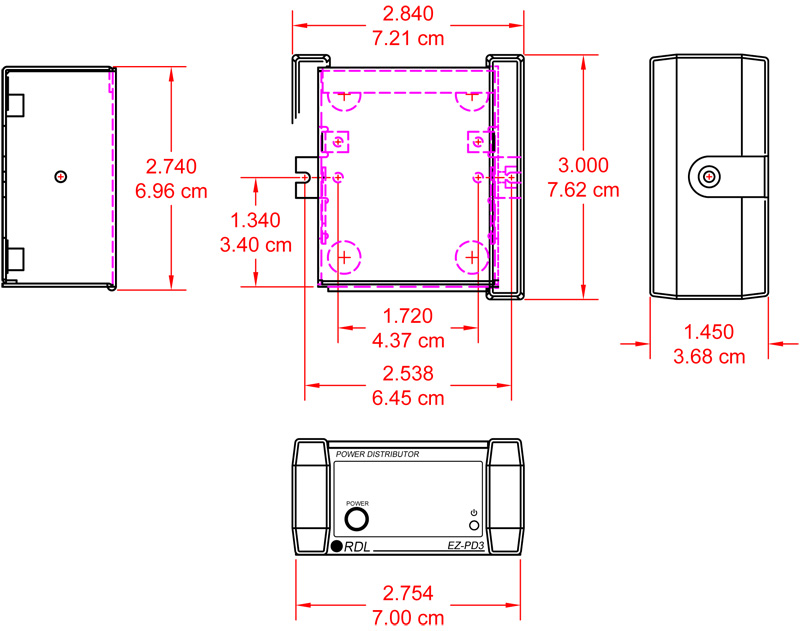

Dimensions
