RDL 20 Watt Stereo Audio Power Amplifier

EZ-PA20X

$468.83

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

EZ-PA20

20 W Stereo Audio Amplifier – 8 Ω, with Power Supply

Audio Amplifier with Front-Panel Level Control
10 Watts RMS Per Channel into 8 Ω
8 Watts RMS Per Channel into 4 Ω
Switch-Selectable Load Impedance on Rear Panel
Unbalanced Line Input on RCA Jacks
Switch-Selectable Mono or Stereo Mode
Integral Overload Limiter with LED Indicator
Limiter Controls Overloads from Clipping
Limiter Produces Output Level Comparable to Higher Power Amps
Mono Mode Switch Sums Left and Right Inputs

Description

The EZ-PA20 is a stereo audio amplifier with one line input and a front-panel volume control. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-PA20 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.

Specifications

Input: > 10 kΩ, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max.
Gain: Off to 32 dB
Outputs (2): Left and Right, 10 Watts RMS into 8 Ω per channel or 8 Watts RMS into 4 Ω per channel, switchΩselectable output impedance
Frequency Response: 35 Hz to 20 kHz (±1.5 dB, 10 Watts)
THD+N: < 0.25%
Crosstalk: < -68 dB (1 kHz)
Noise: < -70 dB (below 10 Watts)
24 Vdc power supply current: 160 mA (idle), 1000 mA (max.)
Case dimensions: 5.75” (14.6 cm)W x 5” (12.7 cm)D
Mounting size: 1/3 rack width
Package Type: Cardboard Box
Tariff code: 8518.50.0000
WEEE weight: 0.945 lbs.
Shipping Weight: 1.365 lbs.
Package Dimensions: 9.5 x 7 x 2.25 in.

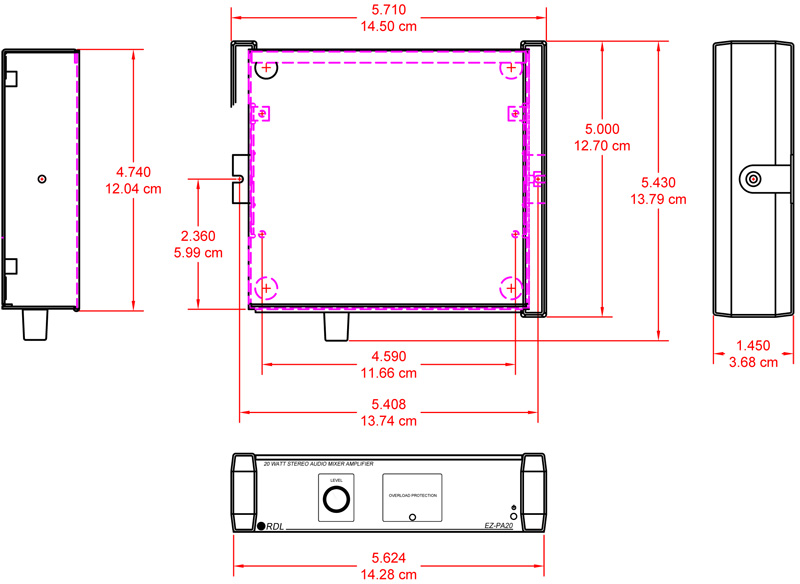

Dimensions

Download

EZ-PA20 Data Sheet PDF Download
