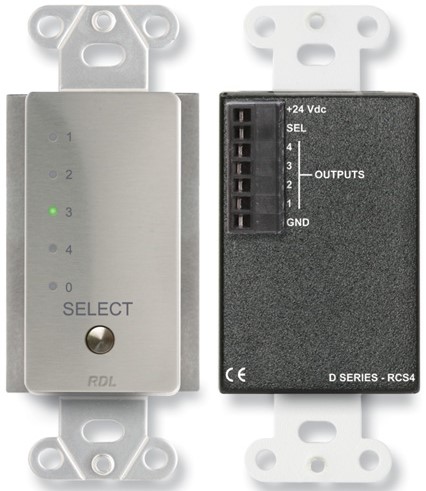

RDL Remote Channel Selector - 4 Channels - controls RU-ASX4D/R - stainless steel

DS-RCS4

$278.17

* Ex GST. Check with us for Discounts and the latest Trade pricing!


Datasheet Related Products

The D-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired.

The D-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The D-RCS4 momentary pushbutton sends a stepping signal back to the RDL control module. When connected to the RU-SX4A, pushing the button on the D-RCS4 causes the source to advance sequentially to the next input. The audio is muted during stepping to avoid annoying bursts of audio.

Specifications


LED Inputs:
Grounding input activates LED; direct connection from RDL selector module

Indicators (5):
Green LEDs for each of 4 selected channels; red LED indicates no channel selected

Outputs:
SEL, 15 Vdc @ 5 mA (pushbutton actuated)

Ambient Operating Environment:
0° C to 55° C

Connections:
Detachable terminal block;

Power Requirement:
GROUND-REFERENCED, 24 Vdc @ 25 mA

Mounting:
Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U;
decorative plate available separately

Package Type:
Card board Box

Package Dimensions:
3.625 x 4.625 x 2.125 in.

Shipping Weight:
0.37 lbs.

WEEE weight:
0.22 lbs.

Tariff code:
8543.70.9960
