RDL Microphone Input Assembly - XLR, Terminal block - Stainless



* Ex GST. Check with us for the latest pricing

- Wall Mounted Microphone Input Panel
- XLR Input Connector with Gold Contacts
- Barrier Block Wiring Connections
- Ground-Lift Terminals on Barrier Block

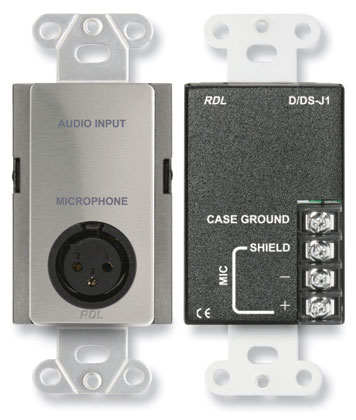

The DS-J1 is a complete microphone input panel assembly. Connections to the female front-panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the DS-J1 is finished with a metal enclosure clearly labeled for easy installation.

The DS-J1 fits directly into back boxes, available from RDL to fit cabinets or walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
