RDL 4 Channel Remote Control for ST-SX4 - Black

DB-RC4ST

$304.14

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

DB-RC4ST

4 Channel Remote Control for ST-SX4 4×1 Audio Switcher

Remote Selection of 4 Audio Sources
Single-Button Selection for Each Source
Remote Selection of Unbalanced Audio Sources
3-Conductor Remote Wiring
Professional Aesthetic Appearance
Companion to other RDL® Remote Controls

Description

The DB-RC4ST is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The DB-RC4ST connects directly to the POWER and CTRL terminals of the ST-SX4 using either a 3-conductor cable or a single shielded pair.

The front panel of the DB-RC4ST features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other three buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED, adjacent to each button shows which source is selected. For stereo installations, the SLAVE output from the ST-SX4 is used to drive the CTRL input of an additional ST-SX4.

Specifications

Selectors (4): Momentary pushbuttons (1 for each channel)
Indicators (4): Red LEDs (indicates channel selected)
Connections: Detachable terminal block; Interfaces directly with RDL ST-SX4
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.22 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.375 lbs.

RDL 4 Channel Remote Control for ST-SX4 - Black

DB-RC4ST

$304.14

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

DB-RC4ST

4 Channel Remote Control for ST-SX4 4×1 Audio Switcher

Description

Specifications

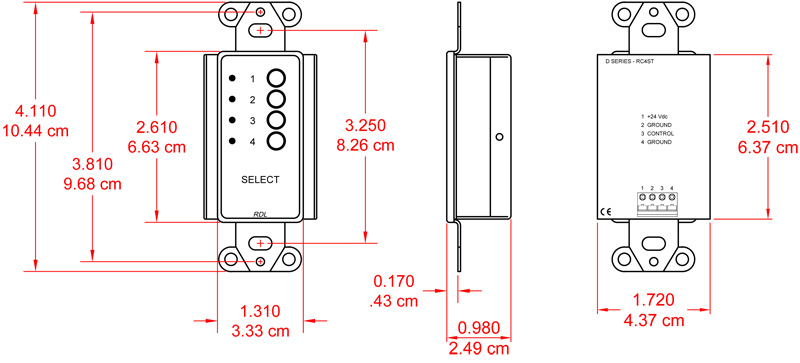

Dimensions
