RDL 2 Channel Remote Control for STICK-ONs - Black

DB-RC2ST

$304.68

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

DB-RC2ST

2 Channel Remote Control for STICK-ON – Remote selection of audio or video sources

Remote Selection of 2 Audio Sources, Destinations or Functions
Single-Button Selection for Each Source
Open-collector Switching of 1 of 2 Module Functions
3-wire or 4-wire Remote Wiring
Professional Aesthetic Appearance
Companion to other RDL® Remote Controls

Description

The front panel of the DB-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.

In a typical installation, the DB-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the DB-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.

Specifications

Selectors (2): Momentary pushbuttons, (1 for each channel)
Indicators (2): Red LEDs, (indicates channel selected)
Connections: Detachable terminal block; Power input; open-collector outputs (25 mA current limited)
Ambient Operating Environment: -10° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 30 mA
Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.215 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.37 lbs.

RDL 2 Channel Remote Control for STICK-ONs - Black

DB-RC2ST

$304.68

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

DB-RC2ST

2 Channel Remote Control for STICK-ON – Remote selection of audio or video sources

Description

Specifications

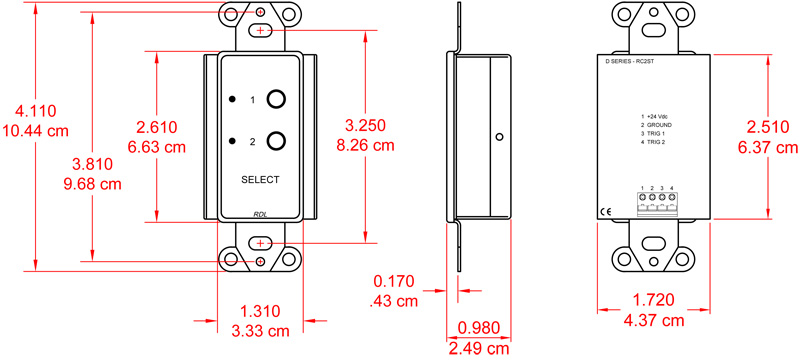

Dimensions
