RDL Line Input Assembly - RCA jacks, Terminal block - Black

DB-J2

$166.27

* Ex GST... Call us for Discounts and the latest Trade pricing!

In stock

DB-J2

Line Input Assembly

Wall Mounted Line-Level Audio Input Panel
Gold Plated Phono Jacks
Hum Cancellation on Unbalanced Line Inputs
Transformer Isolation for Unbalanced Line Inputs
Balanced Output for Unbalanced Line Inputs

Description

The D SERIES-J2 is a complete unbalanced audio input panel assembly. The front panel features two phono jacks intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. A balanced line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J2 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J2 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Specifications

Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm

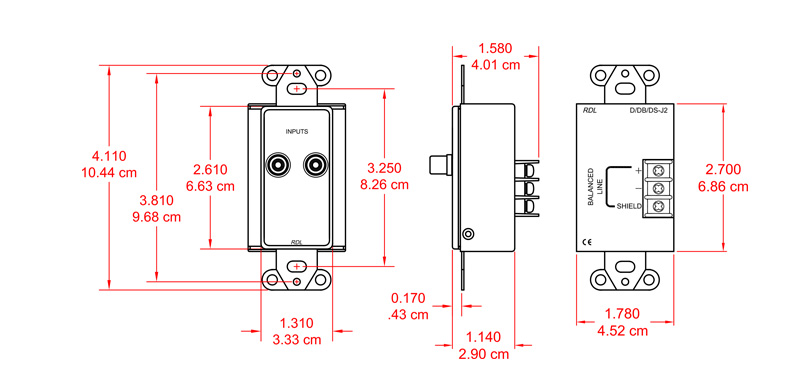

Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
Power Requirement: Passive
Frequency Response (line in): 30 Hz to 20 kHz (±1 dB)
Output Connector: Terminal block
Output Connections (3): +, -, SHIELD
Input Connectors (2): Phono jacks with gold contacts
Package Type: Cardboard Box
Tariff code: 8536.69.4030
WEEE weight: 0.325 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.475 lbs.
