Consumer Input Jacks - Stereo - Black

DB-CIJ3D

$211.00

* Ex GST. Check with us for the latest pricing

The DB-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

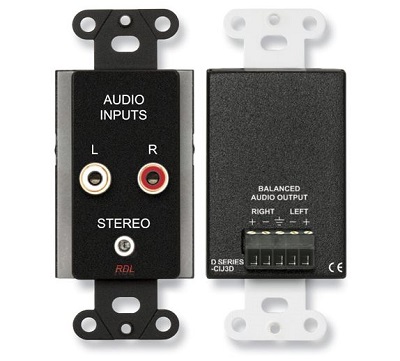

The DB-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.

Features:
  • Stereo Inputs to Stereo Outputs
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10 kΩ Equipment Inputs
  • Output Connections on Detachable Terminal Block
  • Available in RDL White/Gray (D-CIJ3D)
  • Available in Stainless Steel (DS-CIJ3D)

http://www.rdlnet.com/product.php?page=712
