RDL Remote Level Controller - Ramp

D-RLC2

$399.95

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

D-RLC2

Remote Level Control – Ramp

Remote Level Control Panel
Pushbutton UP and DOWN
10-segment Visual Level Display
Multiple Control / Indication Locations
Premium-Quality Remote Panel
Professional Aesthetic Appearance

Description

The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.

The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The D-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the D-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.

Specifications

Ramp Input: 0 to 10 Vdc
Outputs: UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA
Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Ambient Operating Environment: 0° C to 55° C
Connections: Detachable terminal block;
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 75 mA
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.215 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.365 lbs.

RDL Remote Level Controller - Ramp

D-RLC2

$399.95

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

D-RLC2

Remote Level Control – Ramp

Description

Specifications

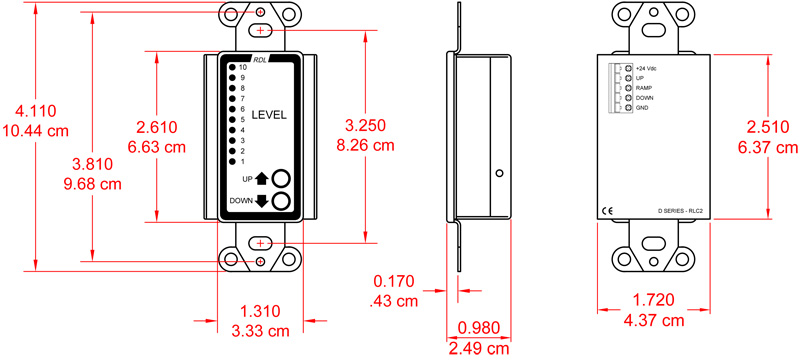

Dimensions
